Automatic unloading
StonePicker
Full CNC unloading and palletising system for parts discharged from StoneCUT and StonePRINT production lines.
Overview
Automatic unloading and palletising
StonePicker handles cut parts automatically and communicates in real time with CEI production lines.
Equipment features

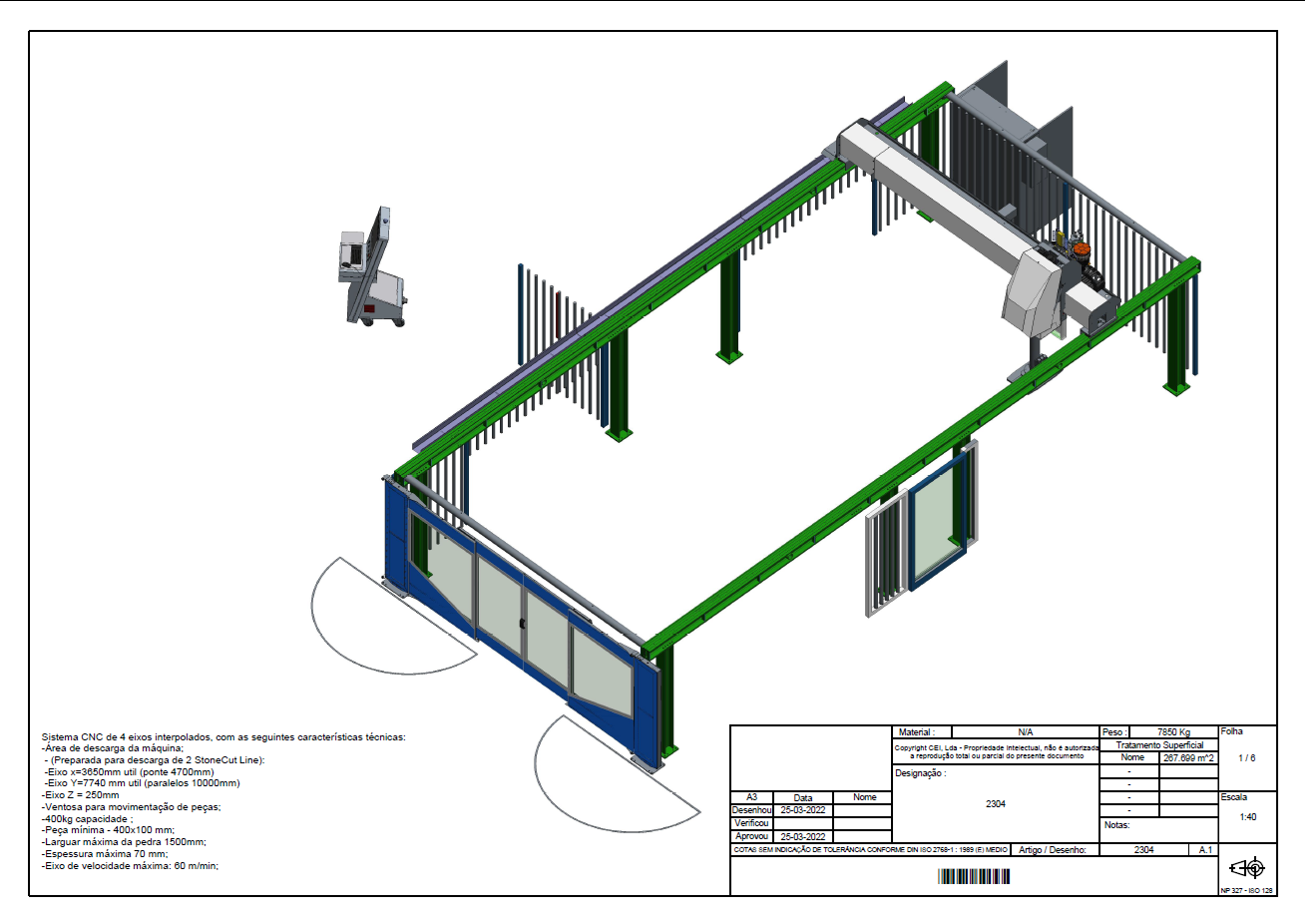

- Full CNC system with 4 interpolated axes
- Unloading area prepared to serve two StoneCUT Line machines

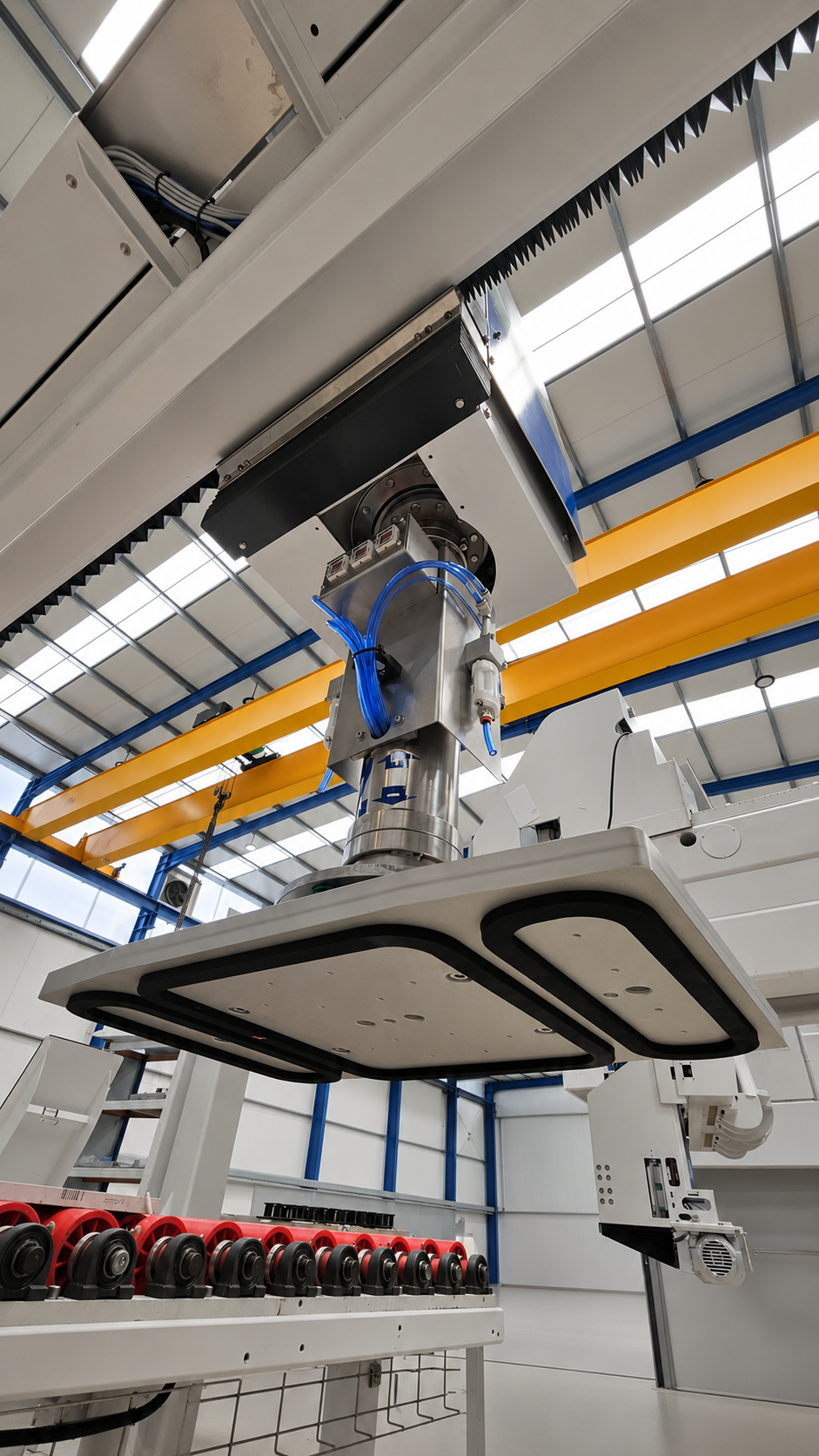

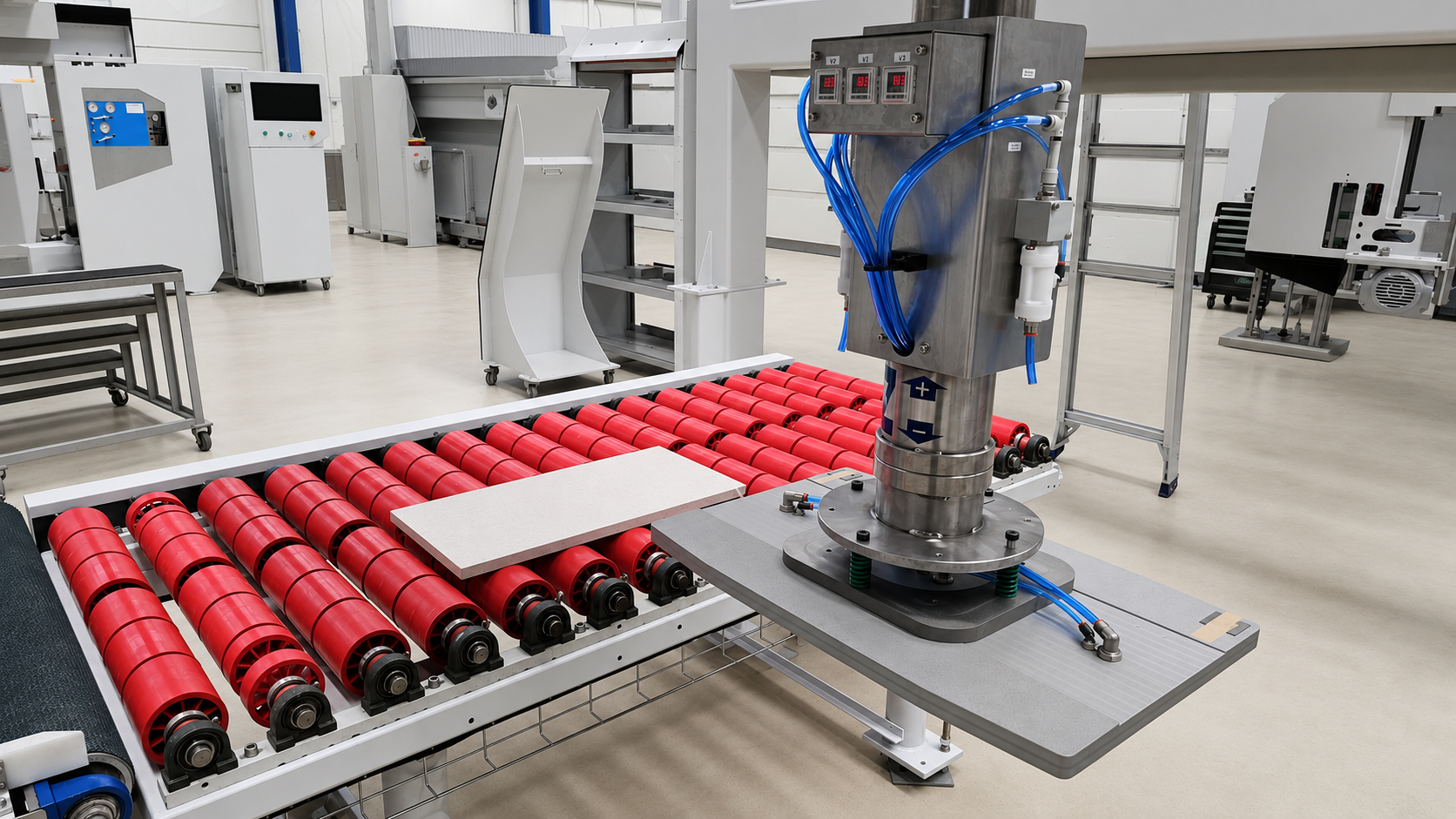

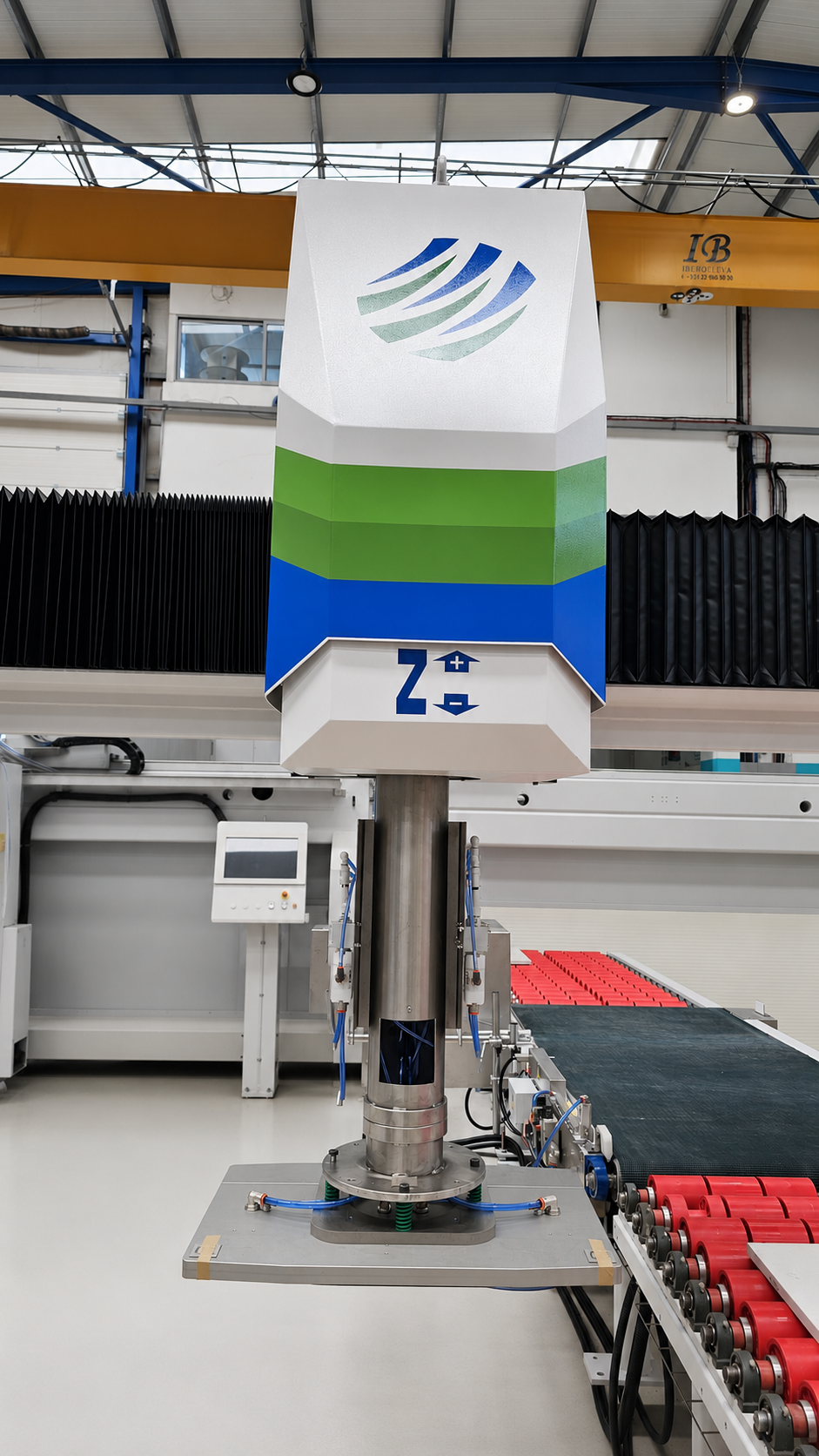

- Vacuum gripper for automatic part handling
- Minimum part size of 400 × 100 mm
- Maximum stone width of 1,500 mm and thickness of 70 mm
- Maximum handling capacity of 400 kg
- Maximum axis speed of 60 m/min

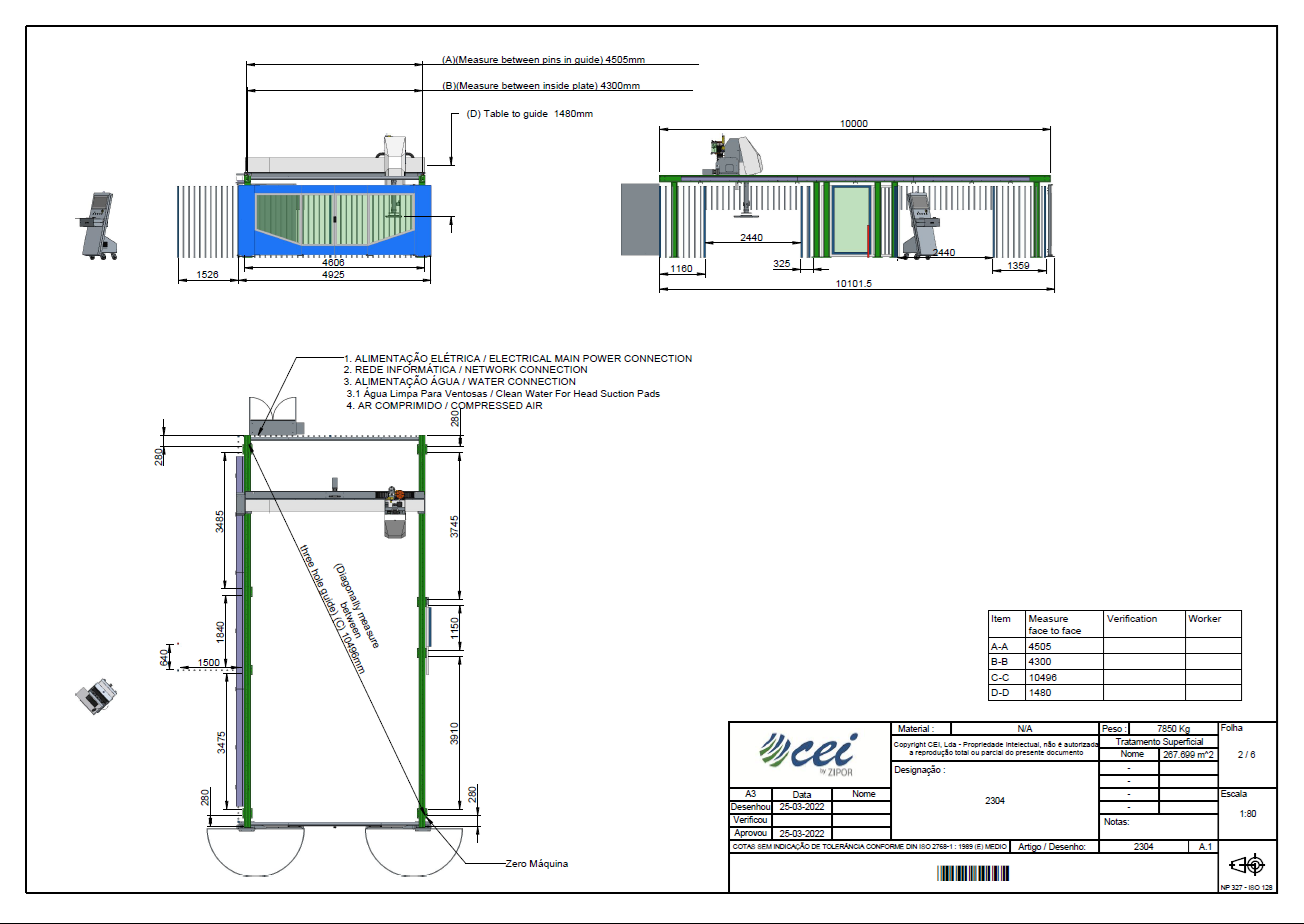

Installation connections
- Electrical main power connection
- Network connection
- Water connection, including clean water for suction pads
- Compressed-air connection
Videos
StonePicker and logistics systems in operation
See the StonePicker unloading workflow and its integration with CEI logistics systems.
Gallery

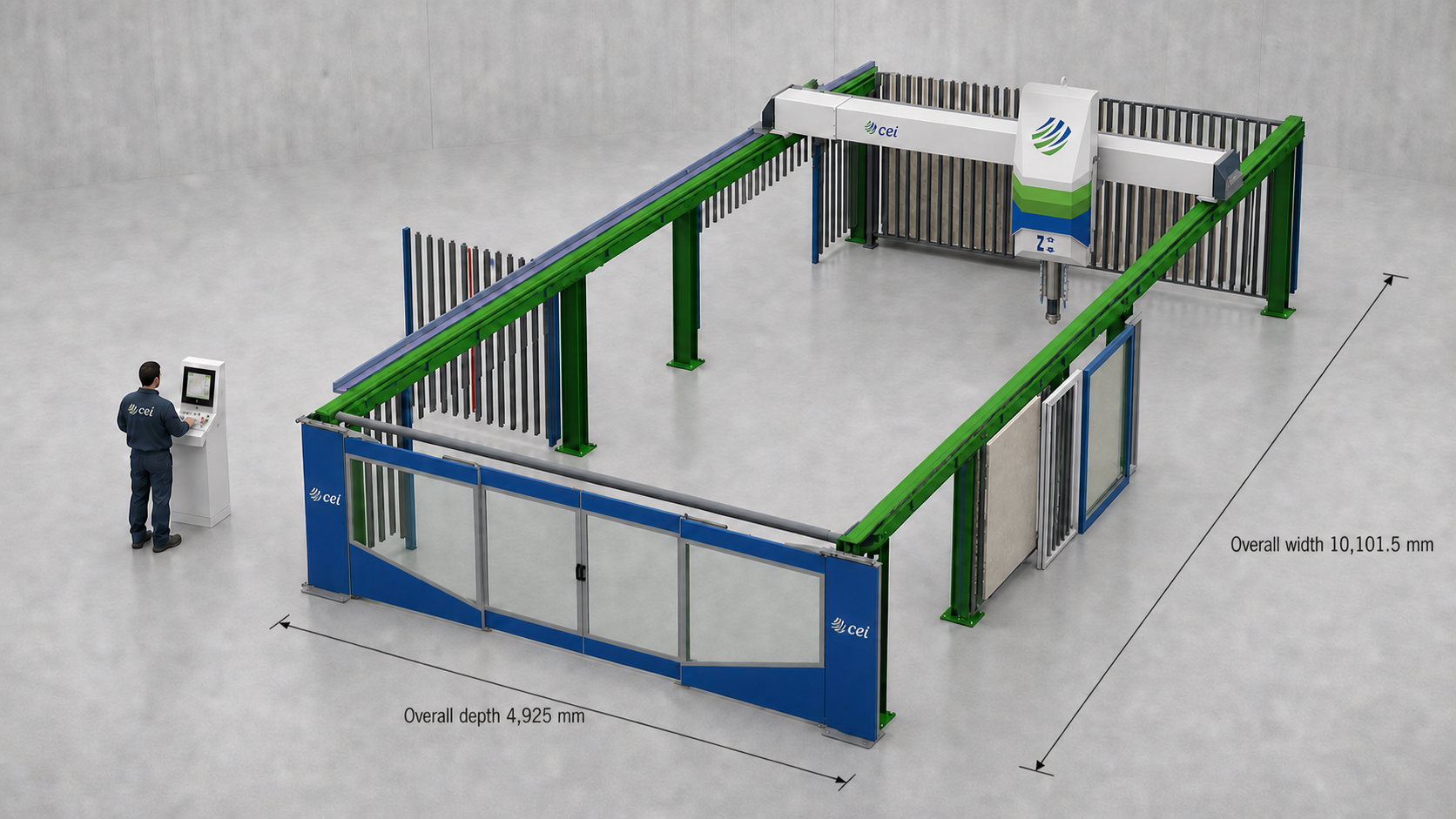

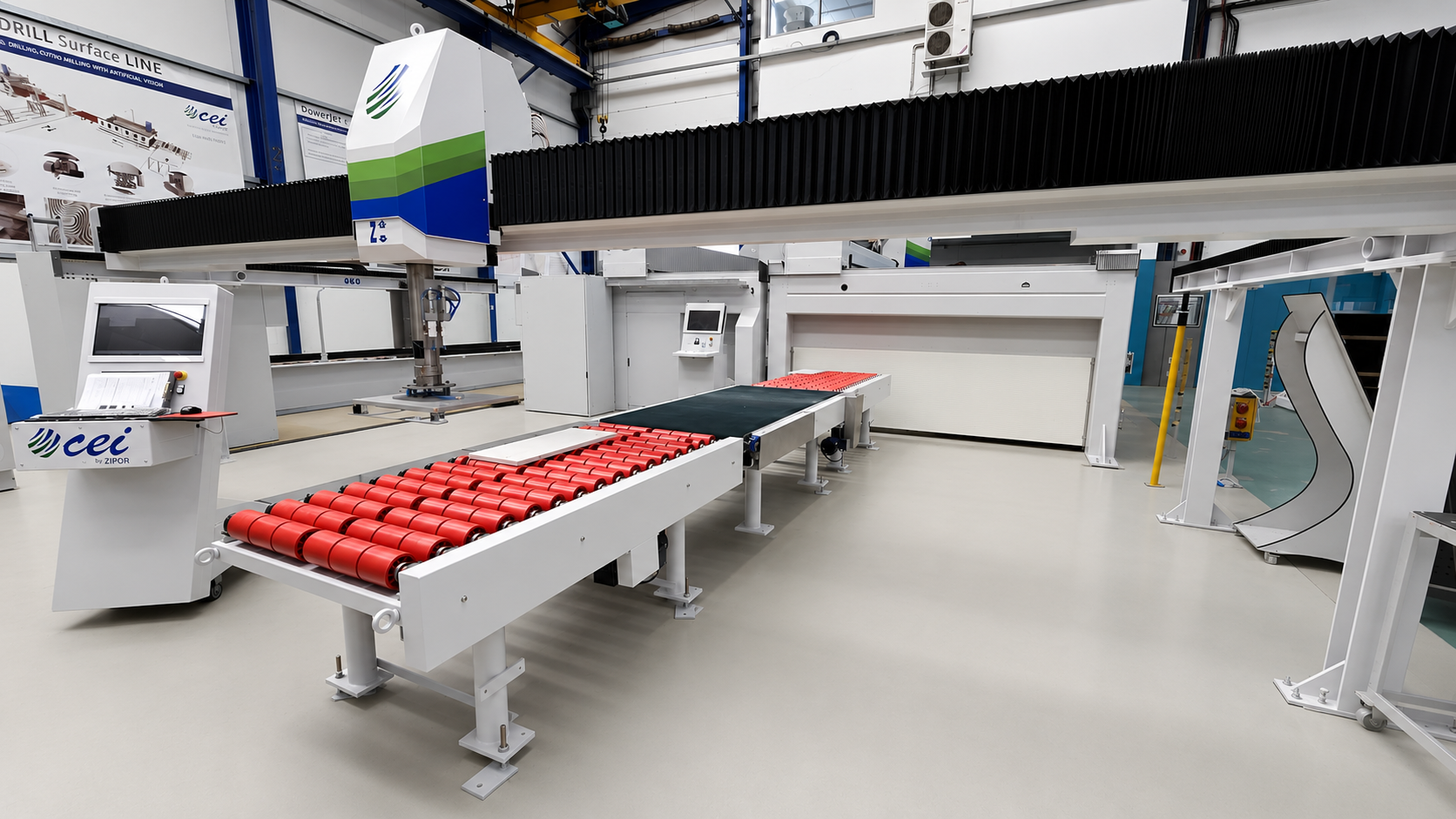

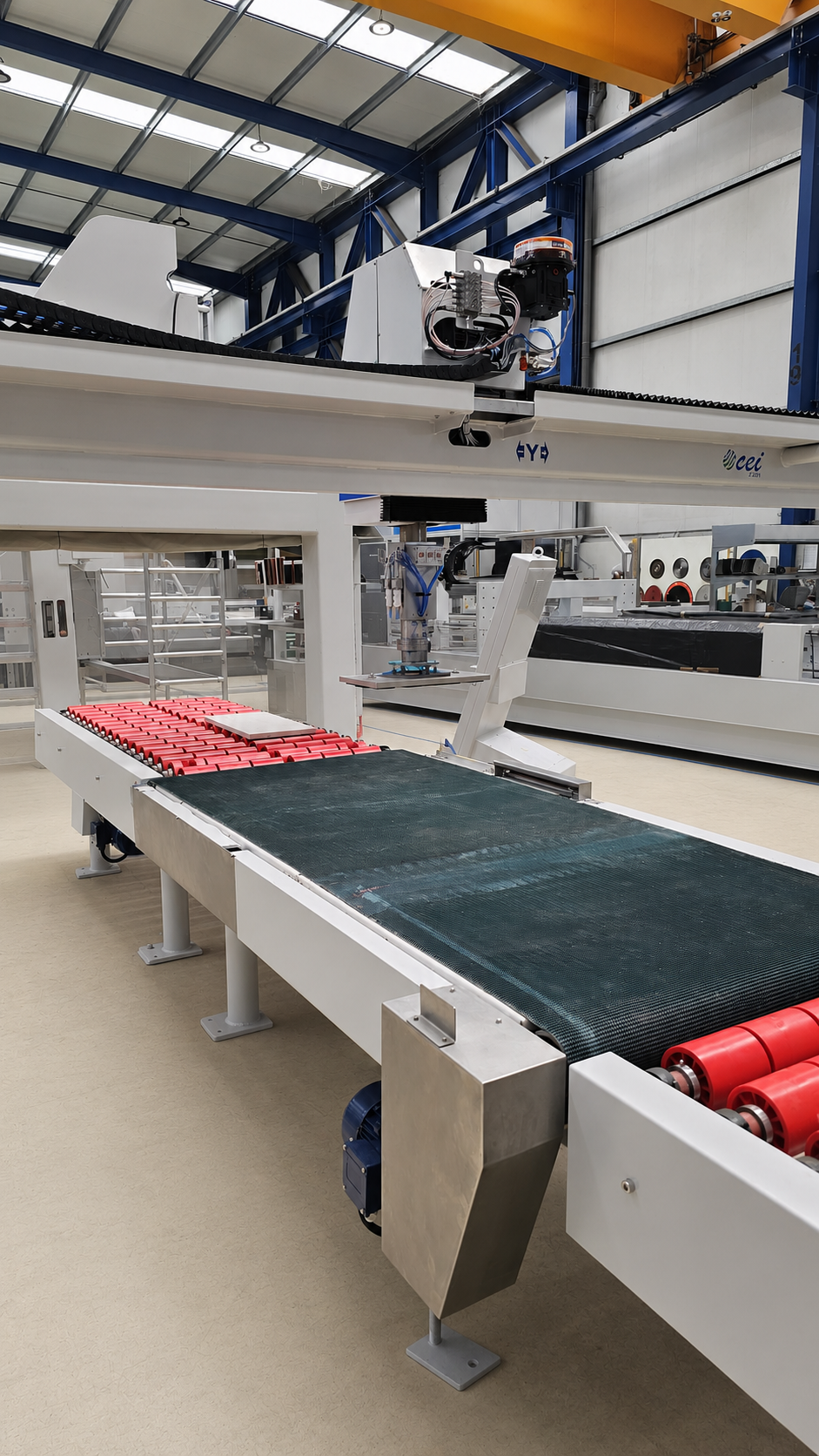

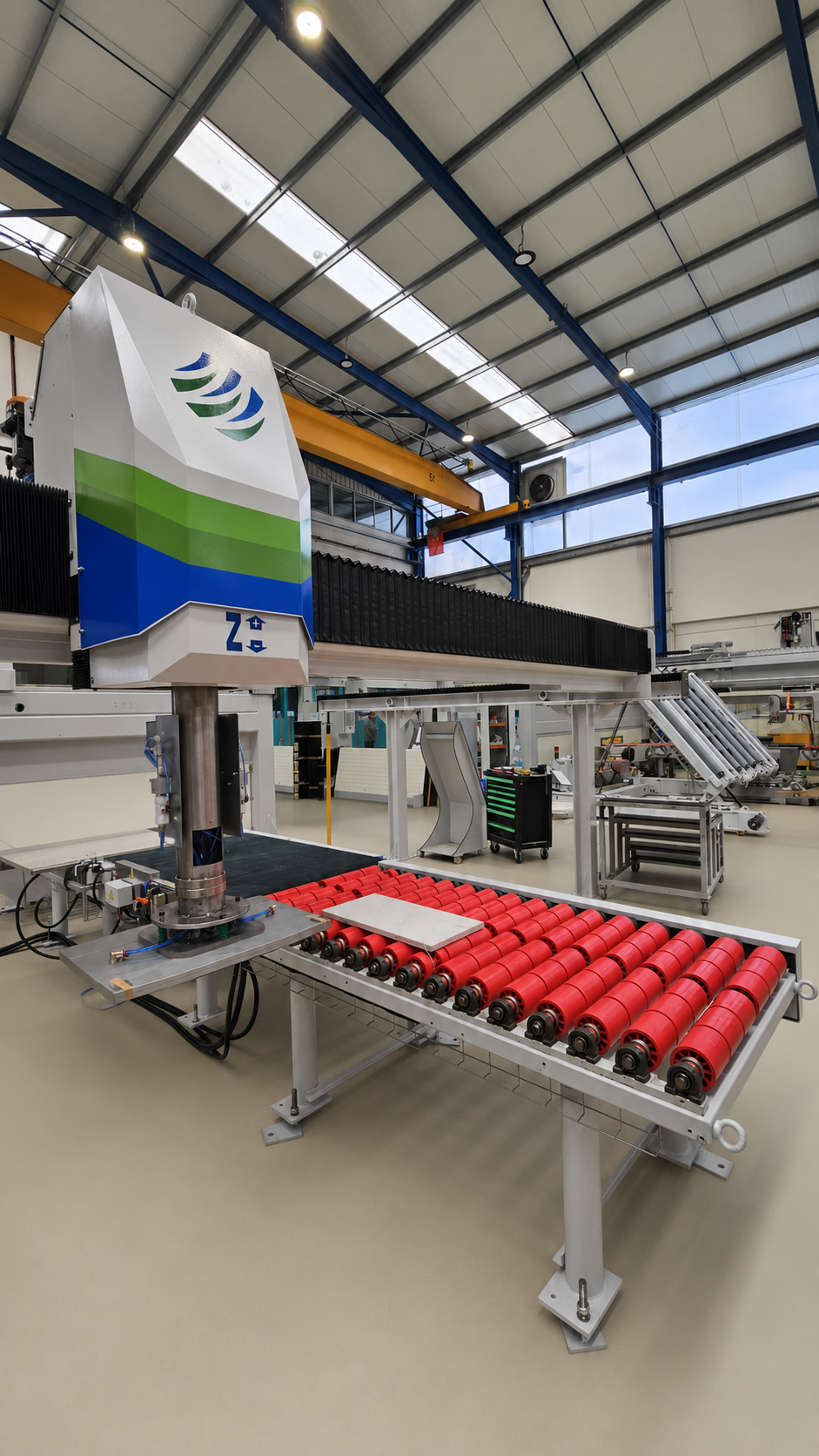

StonePicker examples
Examples of the equipment, handling process and production applications.
