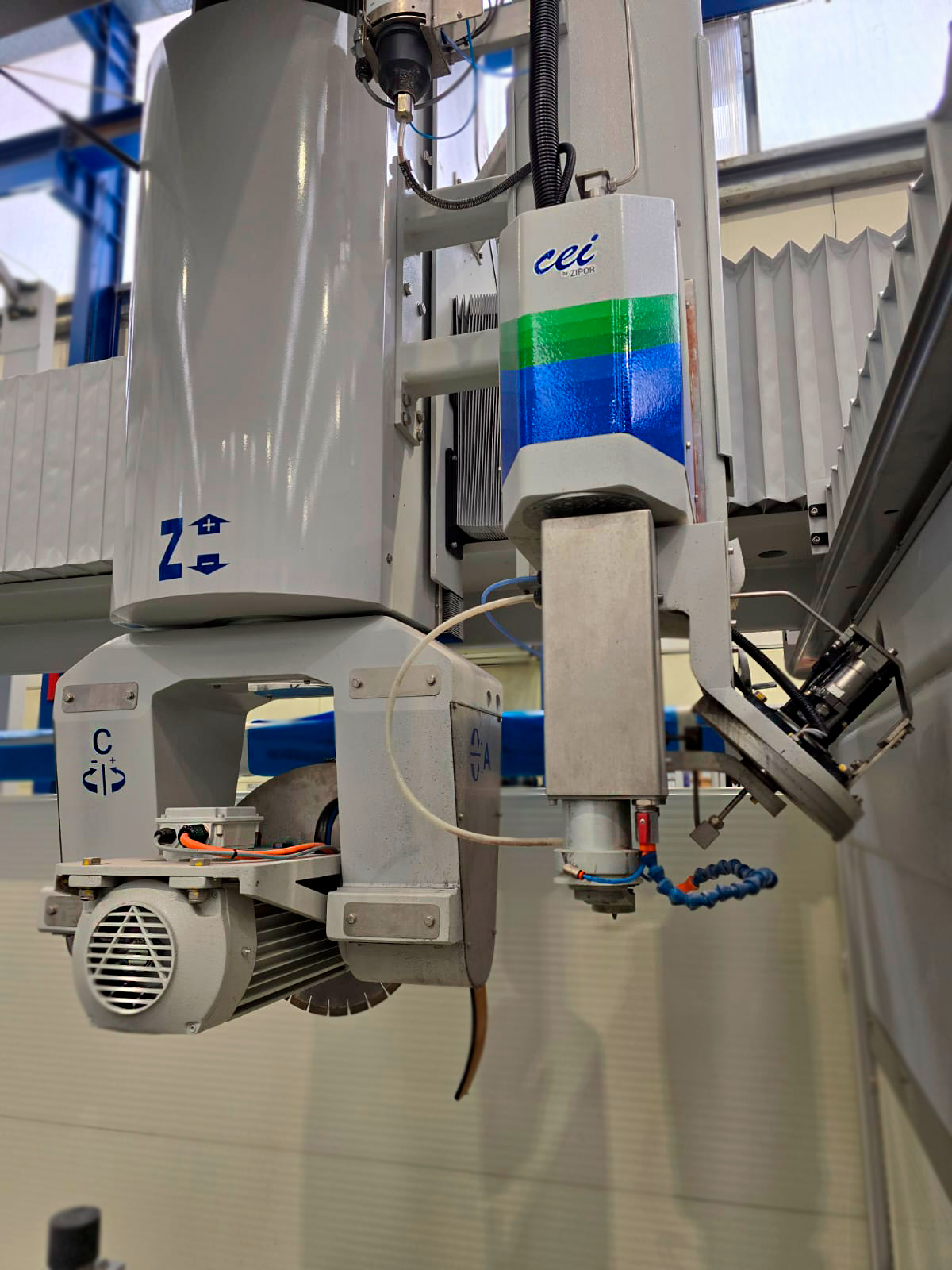

StoneJet Pro
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC 5-axis combined waterjet and saw machine
- Saw diameter: 350 to 625 mm
- Useful cutting-area options: 3600 × 2000 / 4000 × 2200 / 4000 × 2500 mm
- Waterjet head: 3 or 5 interpolated axis
- Saw head: 4 or 5 interpolated axis
- Z axis: 500 to 800 mm
- Maximum speed: 50 m/min
- Motor power: 23 / 27 HP
- High-pressure pump: 4000 to 6200 bar, 50 to 100 HP
- Stainless-steel tank
- Vision camera for slab defects and position capturing
- Tool-measuring and slab-thickness measuring probe
- Absolute encoders
- Automatic abrasive feeding
- Industry 4.0 direct connection to office, smartphone or tablet
Options and connectivity
- Single or double working areas
- Tilting system for loading material
- Zero point on workbench
- Abrasive removal system
- Five-axis real-time thickness measuring system
- Five-axis automatic calibration
- Softener or pH water-treatment kit
- Vacuum manipulators up to 400 kg
- Drilling and milling system with ½-inch gas connection
- Software for kitchen countertops, milling, drilling, engraving and common cuts
- Online technical support
- Configuration options according to production requirements
Video
StoneJet Pro in operation
Watch StoneJet Pro in a dedicated CEI video.
Gallery
Machine details and applications
A selection of StoneJet Pro automatic-line details and applications.
Need more information about StoneJet Pro?
Contact CEI to discuss the StoneJet Pro configuration most suitable for your automatic cutting, unloading and production-flow requirements.
