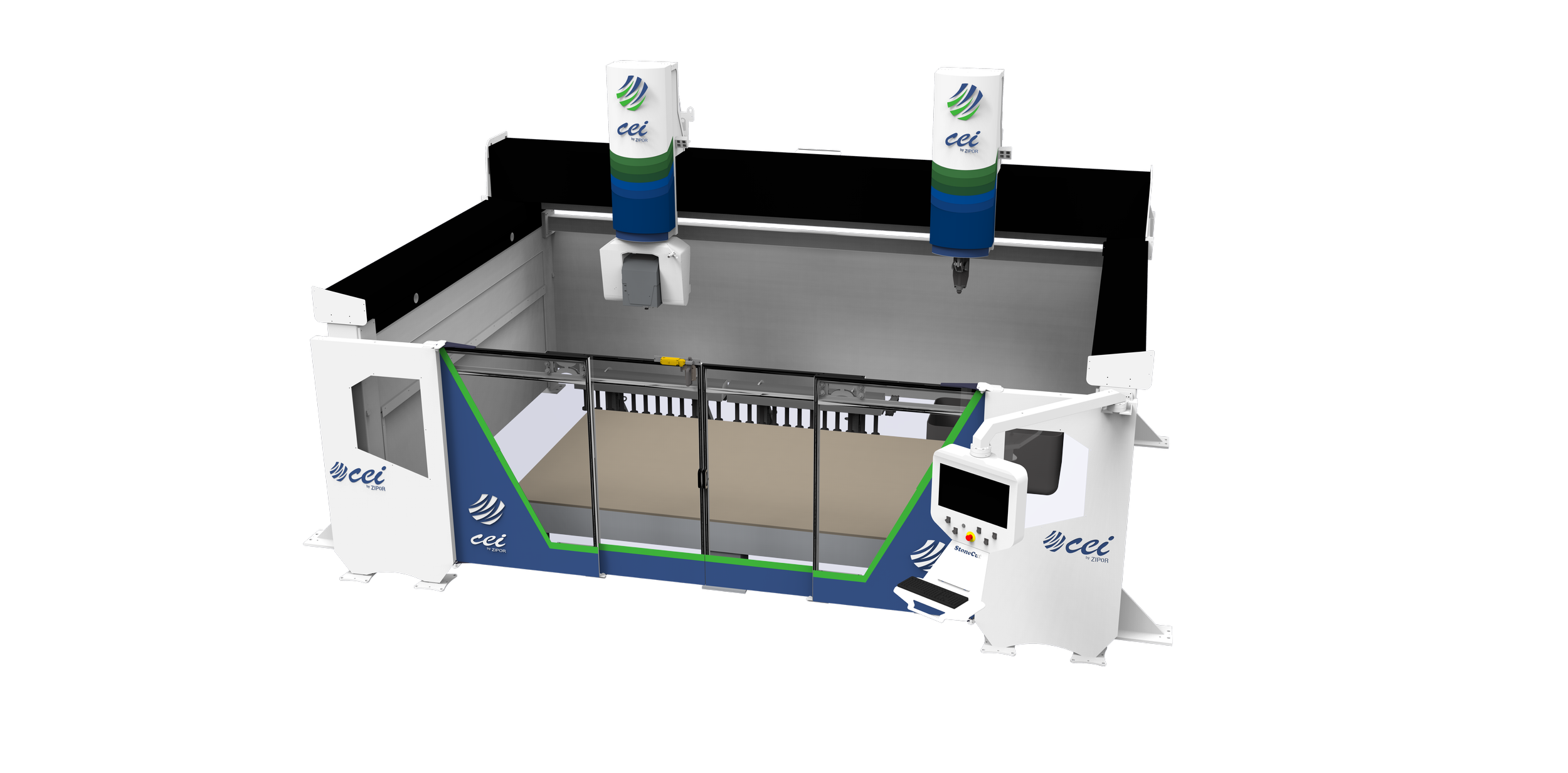

StoneCut Hybrid
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC 5-axis combined additive and milling machine
- Saw diameter: 300 × 500 mm
- Useful working-area options: 3200 × 2000 / 4000 × 2200 mm
- Z axis: 500 mm
- Maximum speed: 60 m/min
- Additive head for stone-compatible materials
- Additive pump and mixer
- Tool holder ISO40 for milling tools with automatic exchange
- Tool-measuring probe
- Spindle power: 20 HP (10,000 RPM)
- Tool magazine: 10 to 20 stations
- Absolute encoders
- Vacuum system with suction cups on the workbench
- Zero point on workbench
- Double working stations
Options and connectivity
- Single or double working areas
- Industry 4.0 concept: direct connection to office, smartphone or tablet
- Online technical support
- Configuration according to production requirements
- Designed for ornamental and engineered stone processing
- Automated milling and additive workflow
- Flexible setup for custom applications
- High-precision motion control
Video
StoneCut Hybrid in operation
Watch StoneCut Hybrid in a dedicated CEI video.
Gallery
Machine details and applications
A selection of StoneCut Hybrid automatic-line details and applications.
