StoneCUT Master Line
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC Master Line: 4 or 5 axes
- Working area: 3500 × 2200 mm
- 40 HP (S6) ME125LA 6P motor / spindle
- Z axis: 1200 mm
- Maximum disc diameter: 1000 mm
- Maximum cut at 0º: 360 mm
- Minimum disc diameter: 600 mm
- Maximum stone height: 200 mm
- Heavy-duty loading trolley: 3500 × 2000 mm

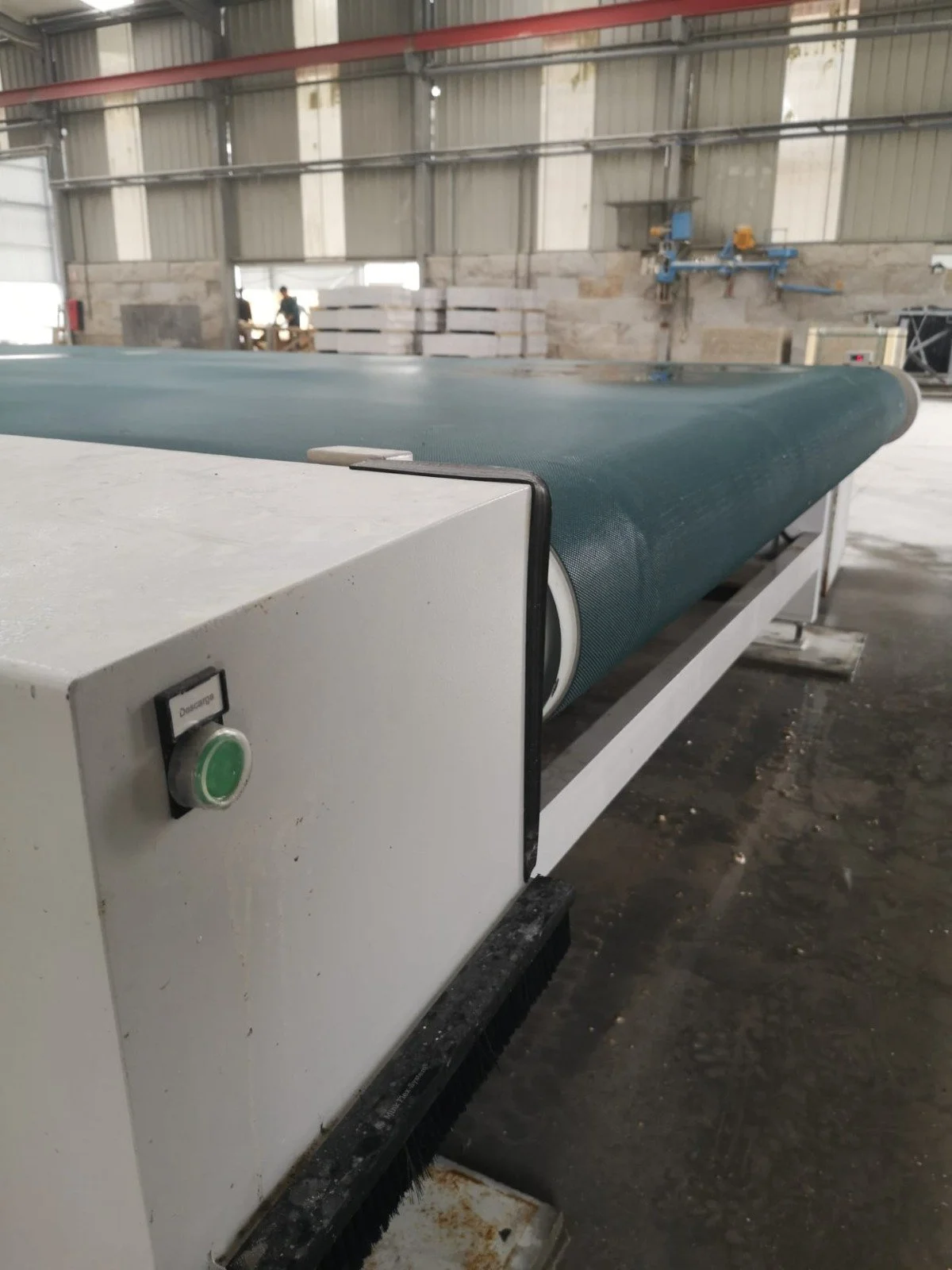

- Conveyor belt for simultaneous loading, cutting and unloading
- Cut parts cleaning system
- Steel and polycarbonate safety doors
- Artificial vision for slab scanning and optimization
- Cutting and milling from 0 to 90 degrees
Options and connectivity
- Electrical main power connection
- Network connection
- Water connection
- Compressed air connection
- Clean water for head suction pads and spindle
- Recycled water for cutting motor and conveyor cleaning
- Parts validation station with barcode printer
- Robotized loading and unloading system
- Loading robot: 4 ton
- Zero point on workbench
- Laser for manual cutting mode
- Vacuum manipulators up to 500 kg
- Milling system 1/2” gas
- Industry 4.0 direct connection to office, smartphone or tablet
Video
StoneCUT Master Line in operation
Watch StoneCUT Master Line in a dedicated CEI video.
Gallery

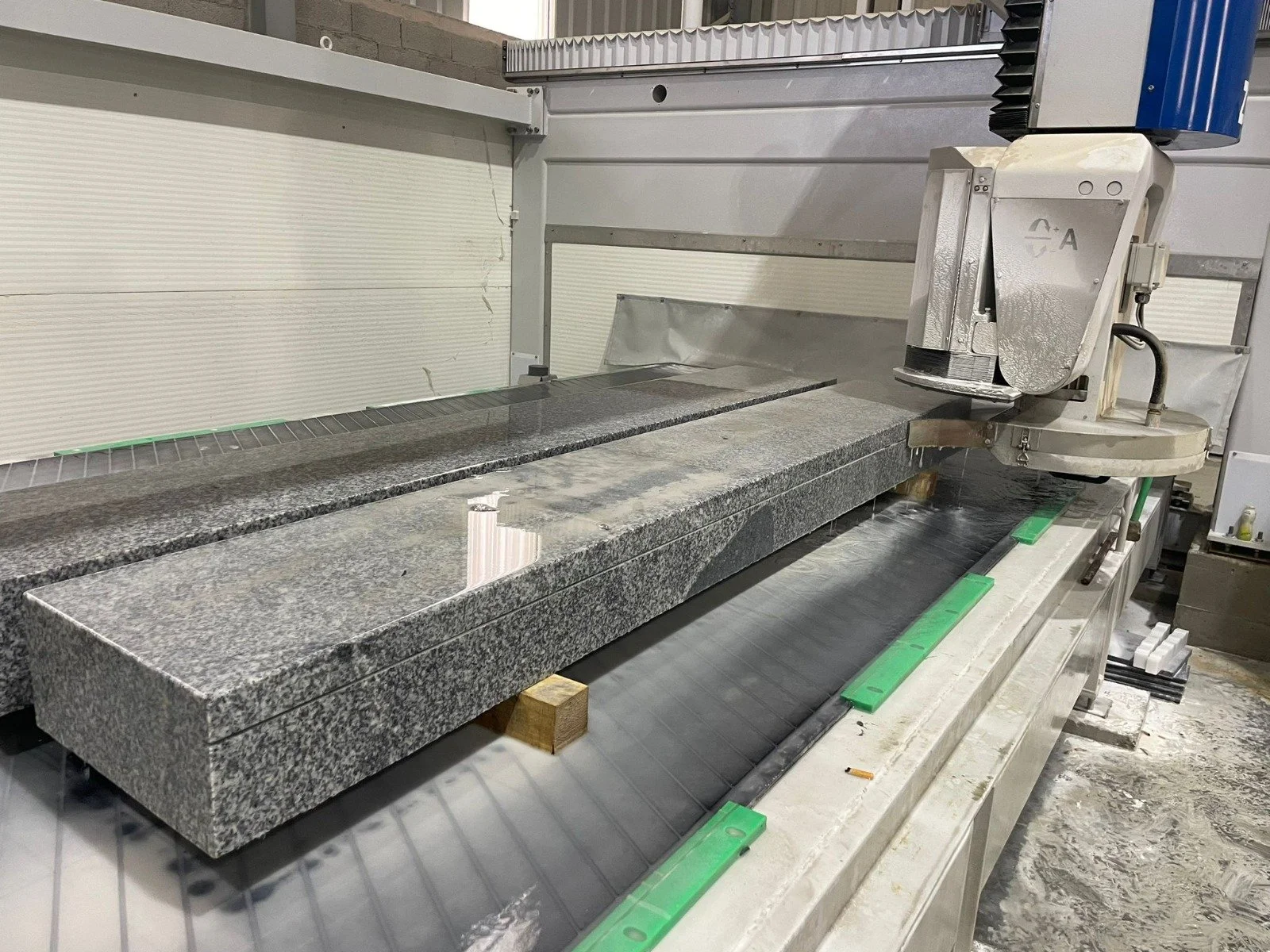

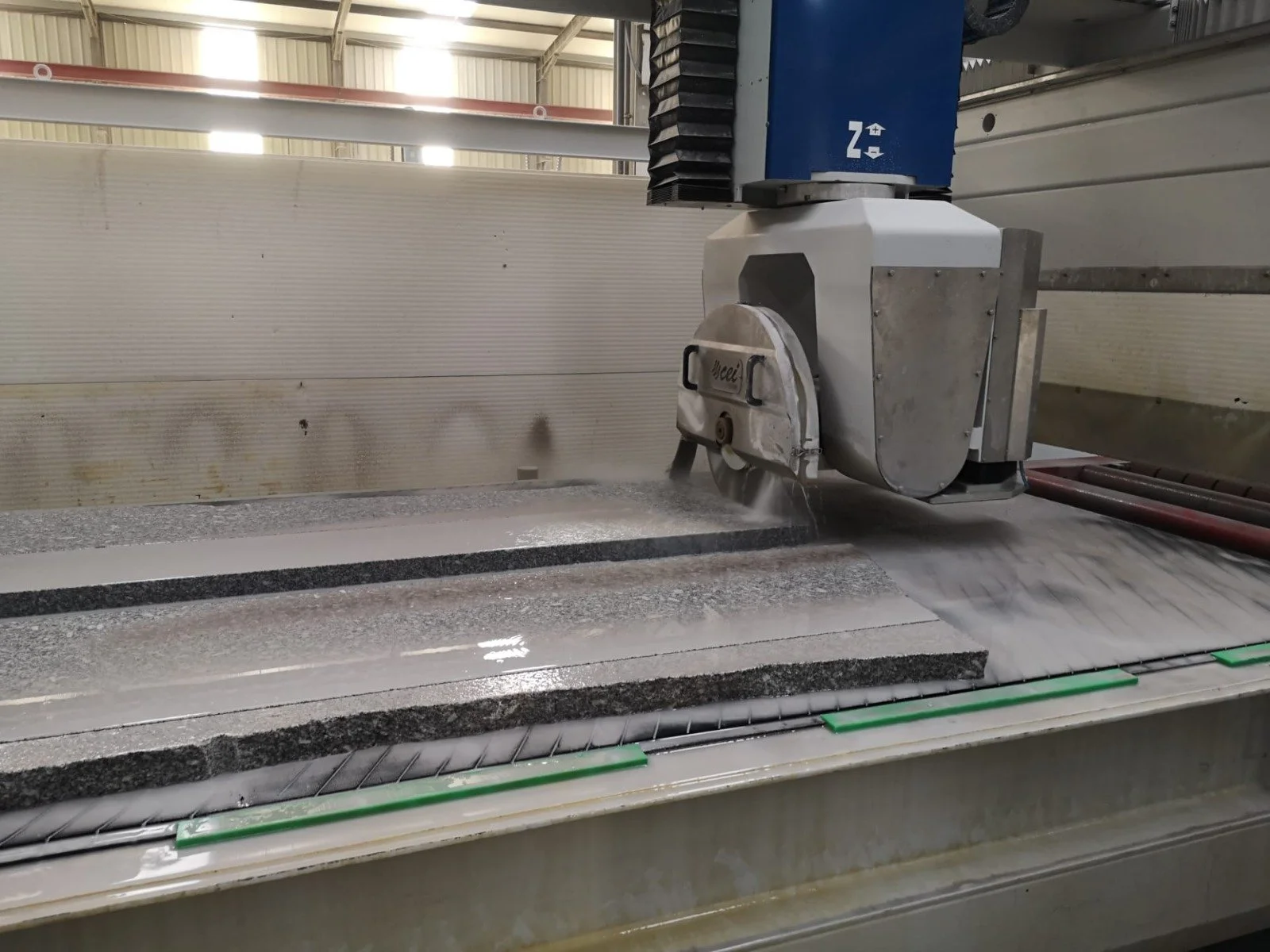

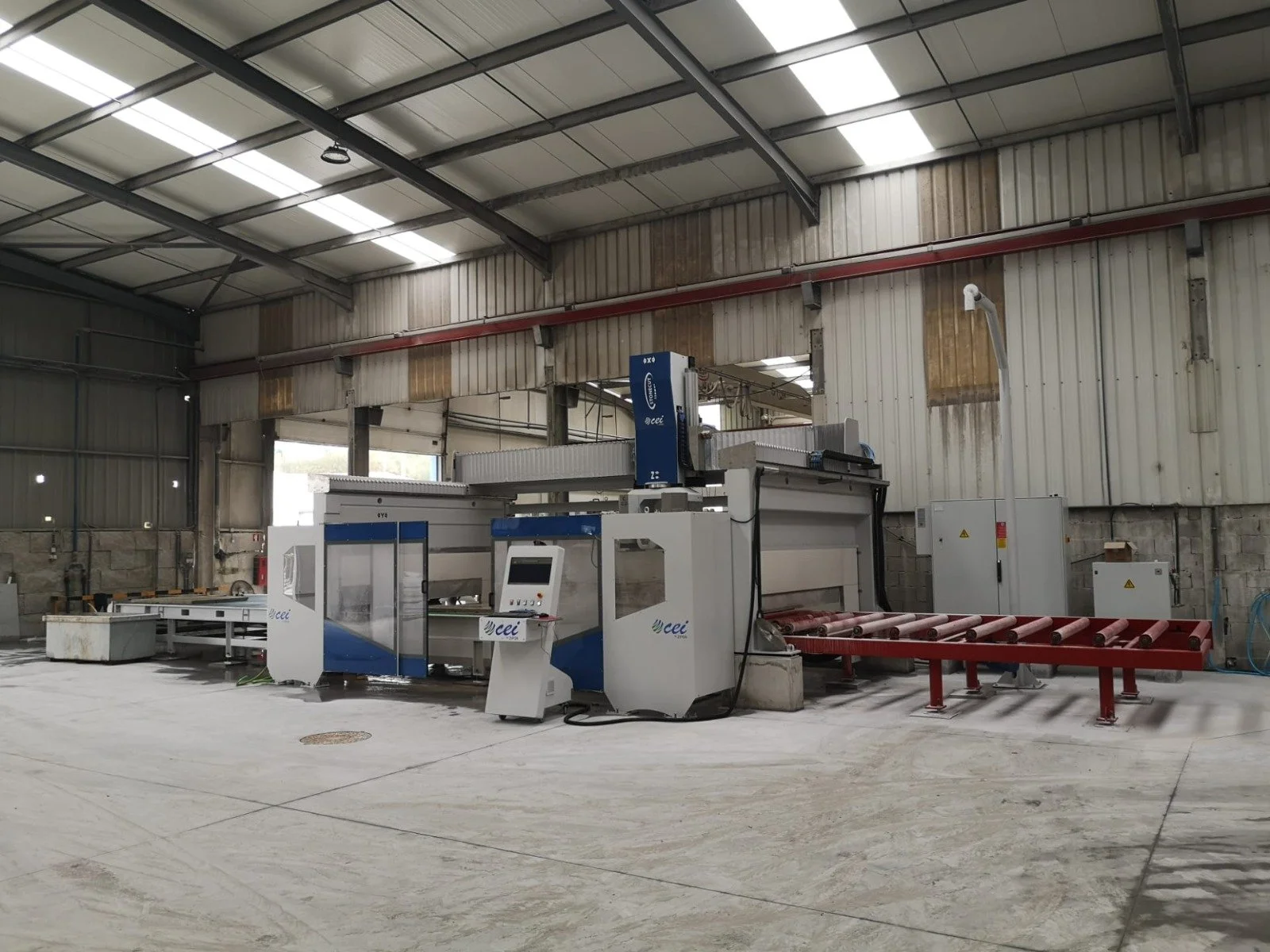

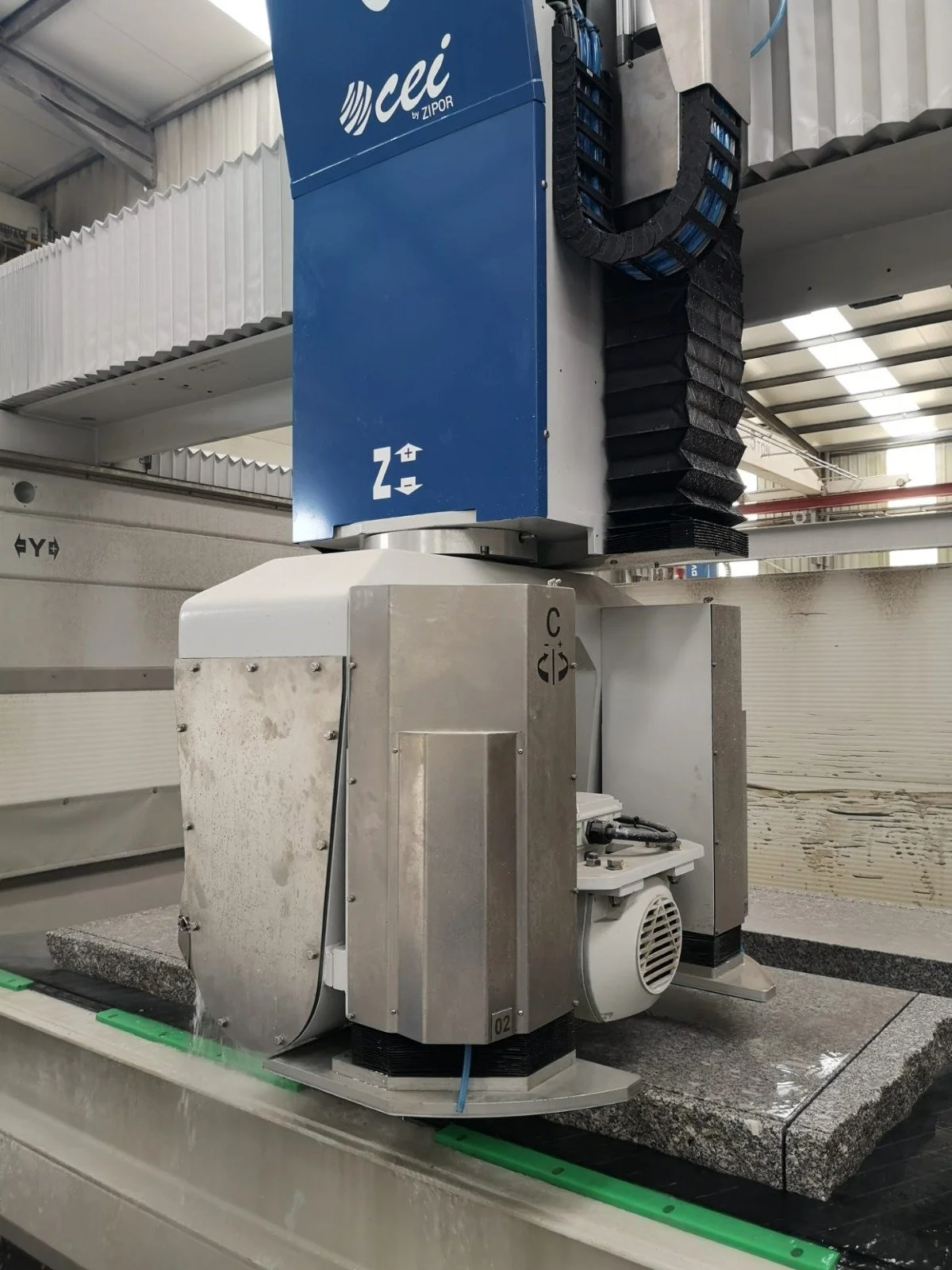

Machine details and applications
A selection of StoneCUT Master Line machine details and applications.
Need more information about StoneCUT Master Line?
Contact CEI to discuss technical requirements, configuration options and the most suitable StoneCUT Master Line solution for your production needs.
