StoneCUT Master
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC Master machine: 5 axis

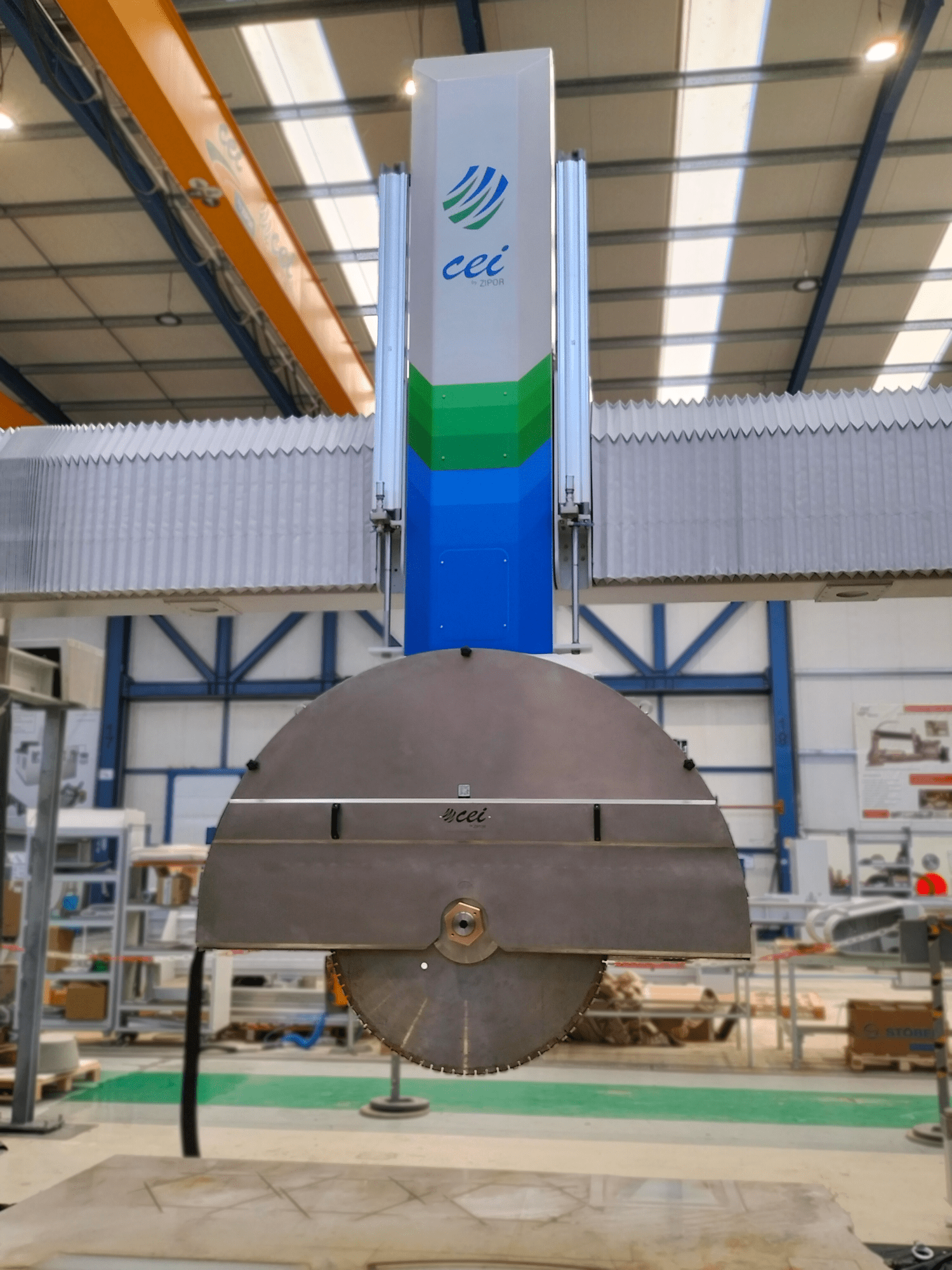

- Saw diameter up to 1200 mm
- Useful cutting area: 3500 × 2000 mm
- Z axis movement: 1200 mm
- MTE 125 motor: 38.5 HP
- Vision system fixed to the wall
- Slab thickness measuring system
- Automatic disc diameter reading system
- Automatic lubrication
- Electrical cabinet cooling system
- Absolute encoders

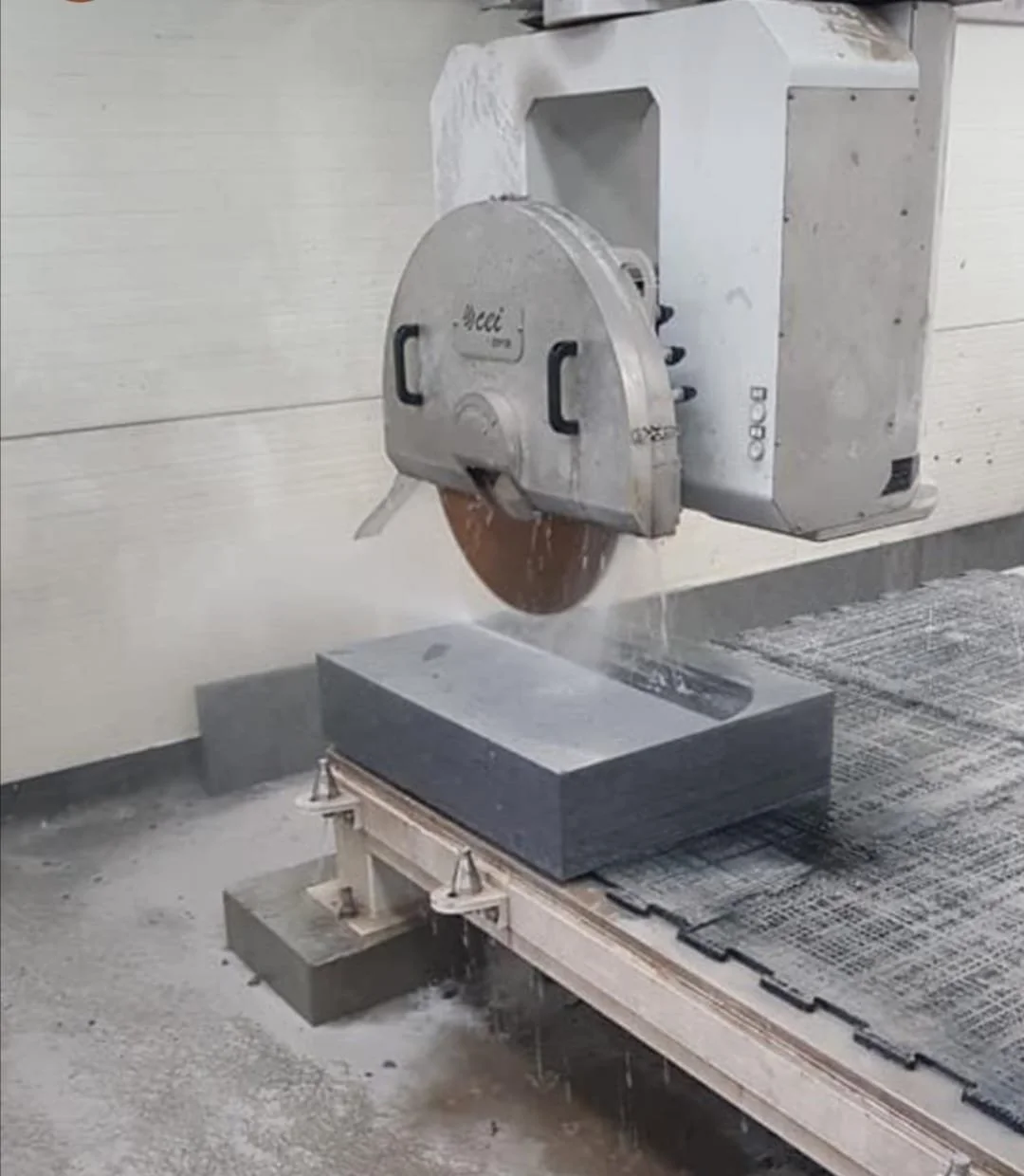

- Cutting of thick material with artificial vision
- Cutting and milling from 0 to 90 degrees
- Safety sensor for the rear machine door
Options and connectivity
- Electrical main power connection
- Network connection
- Water connection
- Compressed air connection
- Zero point on workbench
- Vacuum manipulators up to 500 kg
- Laser for manual cutting mode
- Milling system 1/2” gas
- Manual joystick for precision movements
- Industry 4.0: direct connection to office, smartphone or tablet
- Online technical support
Video
StoneCUT Master in operation
Watch StoneCUT Master in a dedicated CEI video.
Gallery

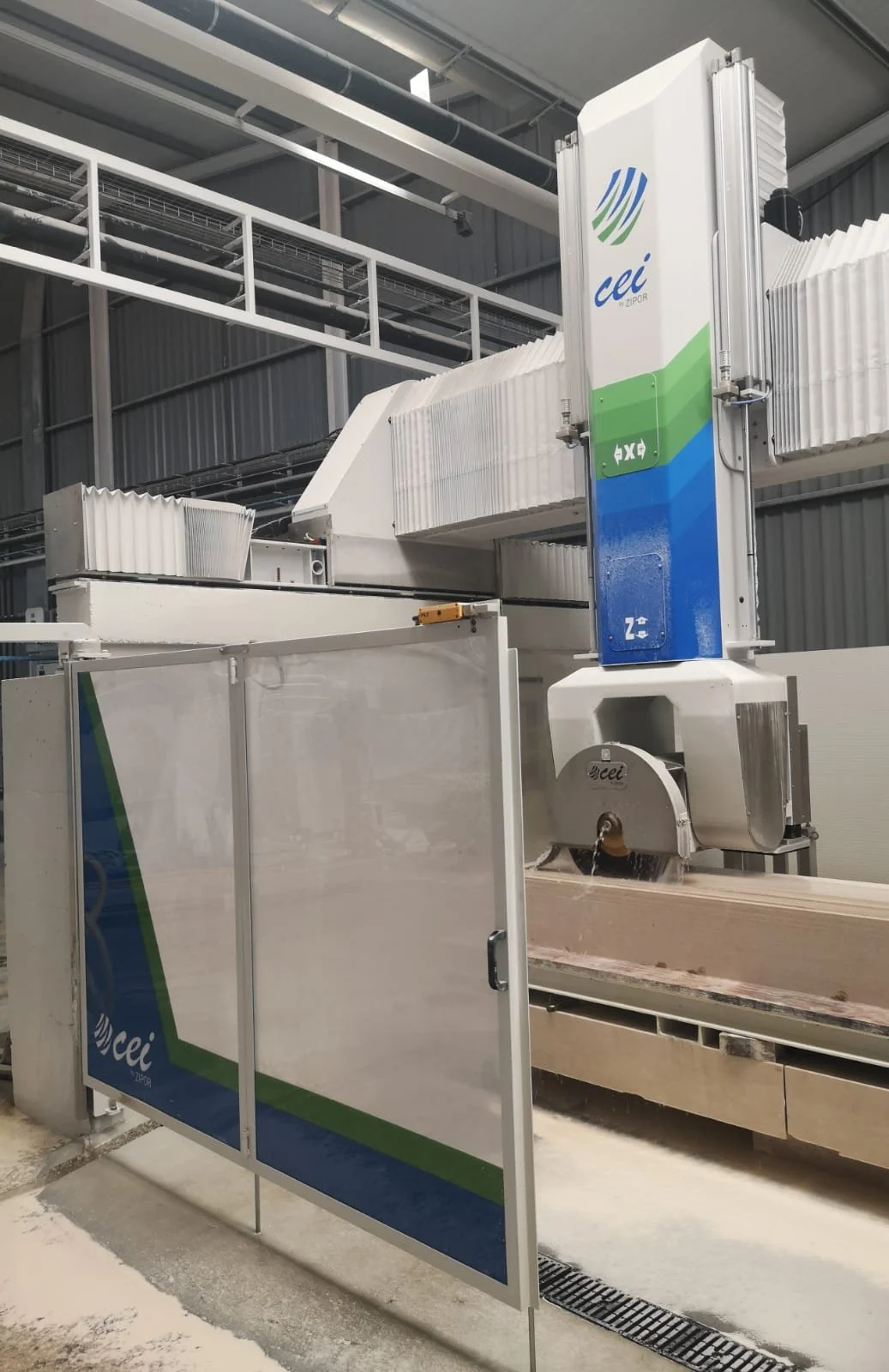

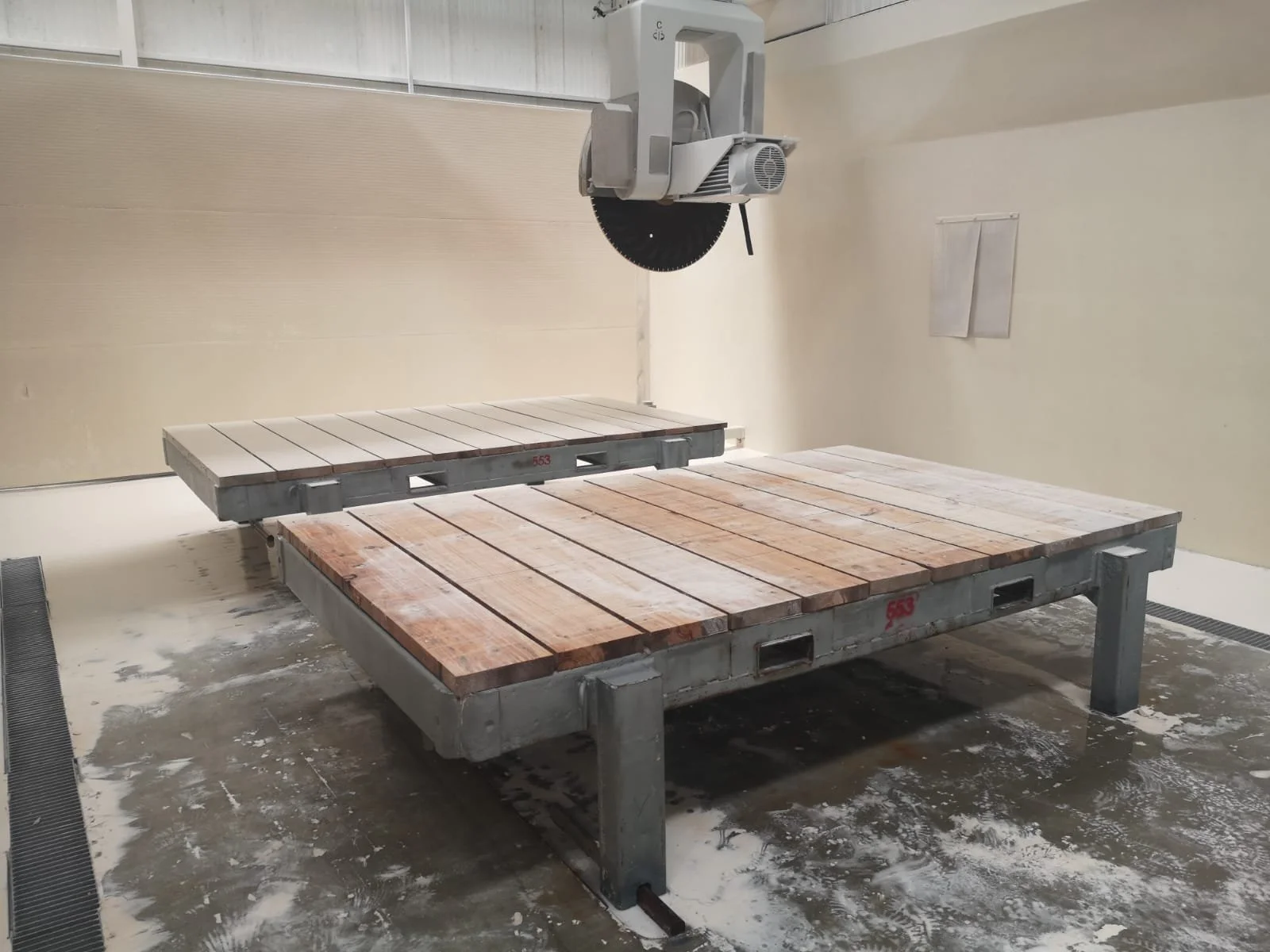

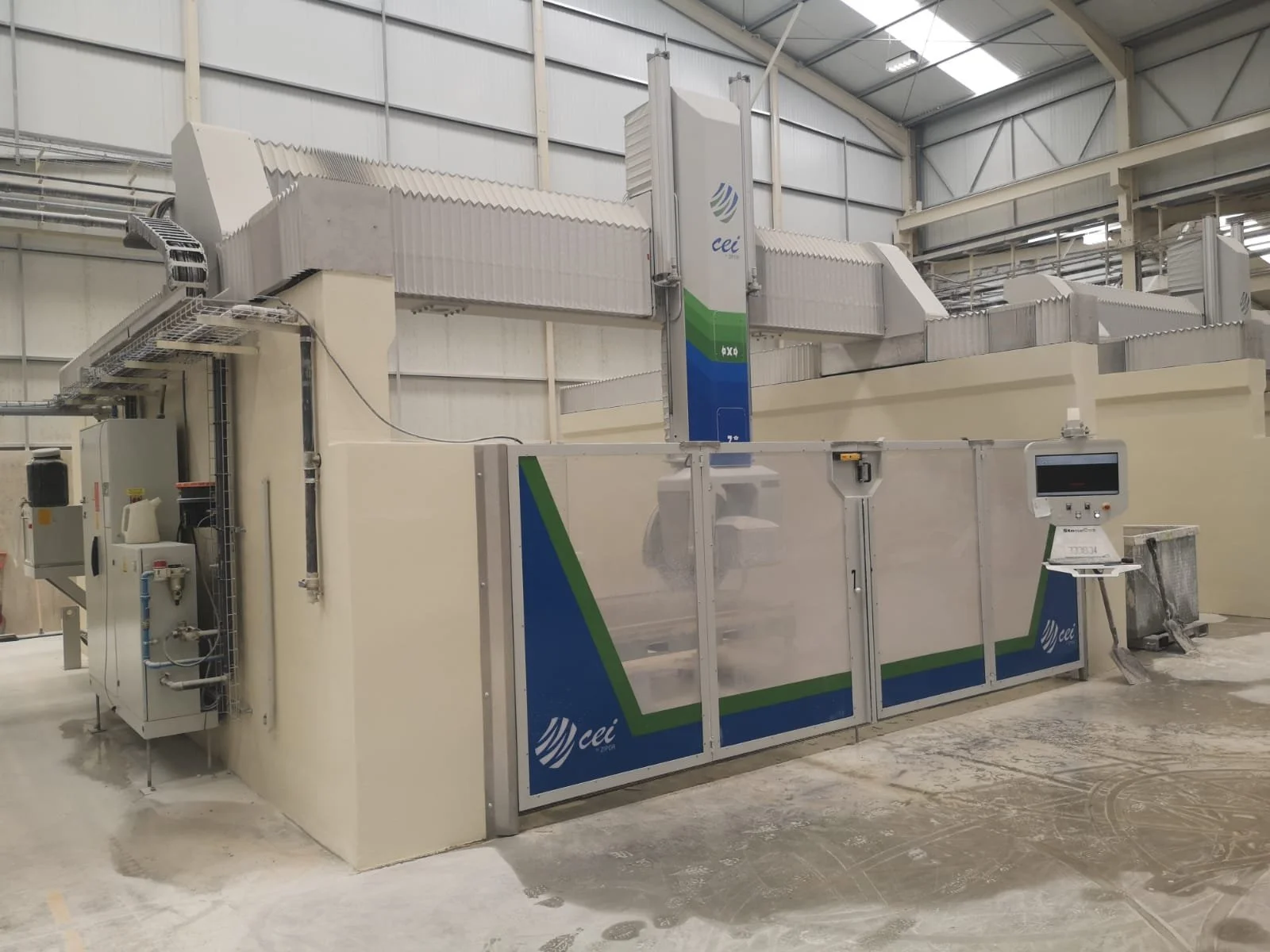

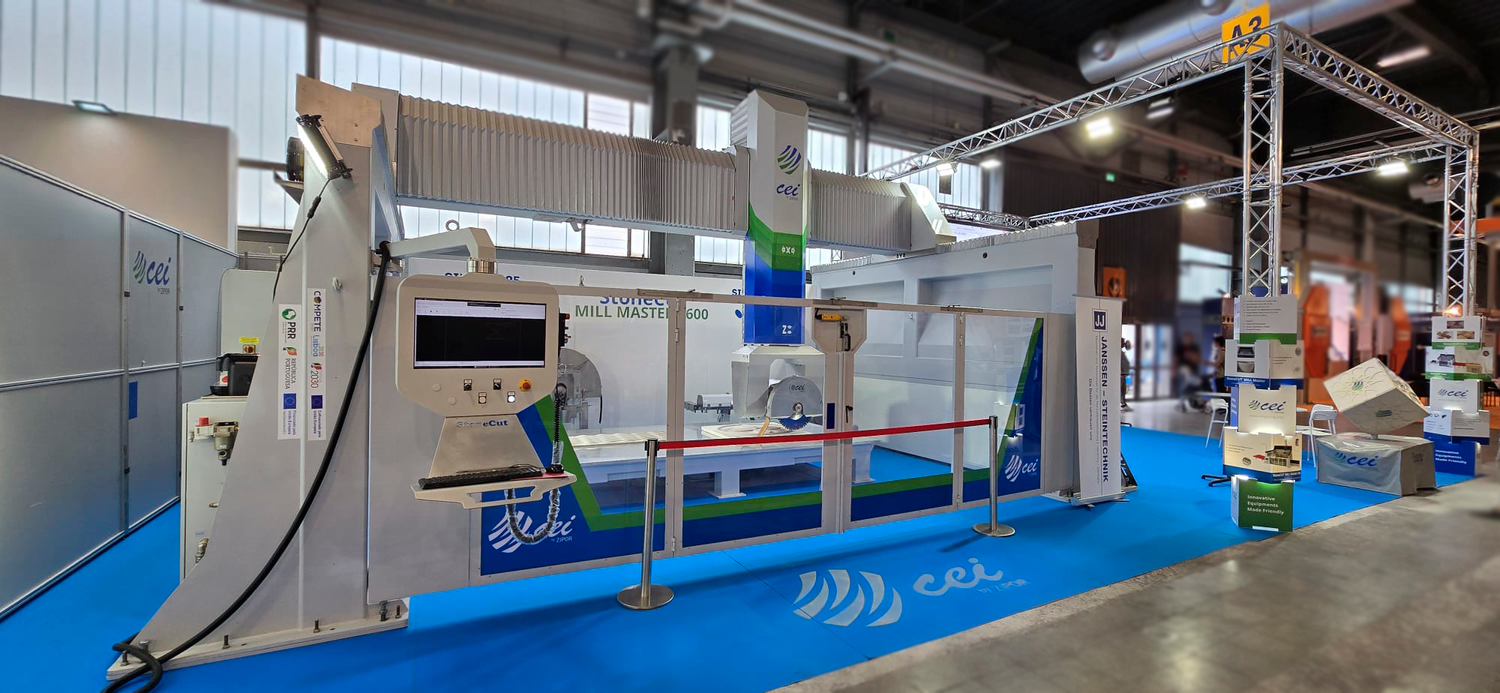

Machine details and applications
A selection of StoneCUT Master machine details, 3D views and installation layout.
