StoneCUT Line Hercules
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- StoneCUT Dual Head: full CNC cutting system with 4 axes
- Two 24 HP (S6) cutting motors
- Cutting area: 3400 × 2200 mm
- Saw diameter: 450 to 625 mm
- Maximum material thickness: 200 mm
- Minimum / maximum distance between discs: 70 / 1130 mm
- Common C axis for both discs
- Independent Z axis for each disc: 350 mm
- Front safety doors with PVC windows
- Vacuum cups for piece movement: 700 kg
- StonePicker: full CNC 5-axis unloading system
- StonePicker Z axis: 850 mm
- StonePicker vacuum capacity: 500 kg
- Automatic piece handling from 400 × 100 mm to 1500 mm width
- Maximum unloading speed: 65 m/min
Options and connectivity
- Automatic loading trolley with fixed A-frame
- Loading area: 3400 × 2000 mm
- Front access protected by safety photocells
- Side access door with 1 m opening
- Three independent vacuum pumps with individual suction-area control
- Electrical cabinet with filters and air conditioning
- Electrical main power connection
- Network connection
- Water connection
- Compressed air connection

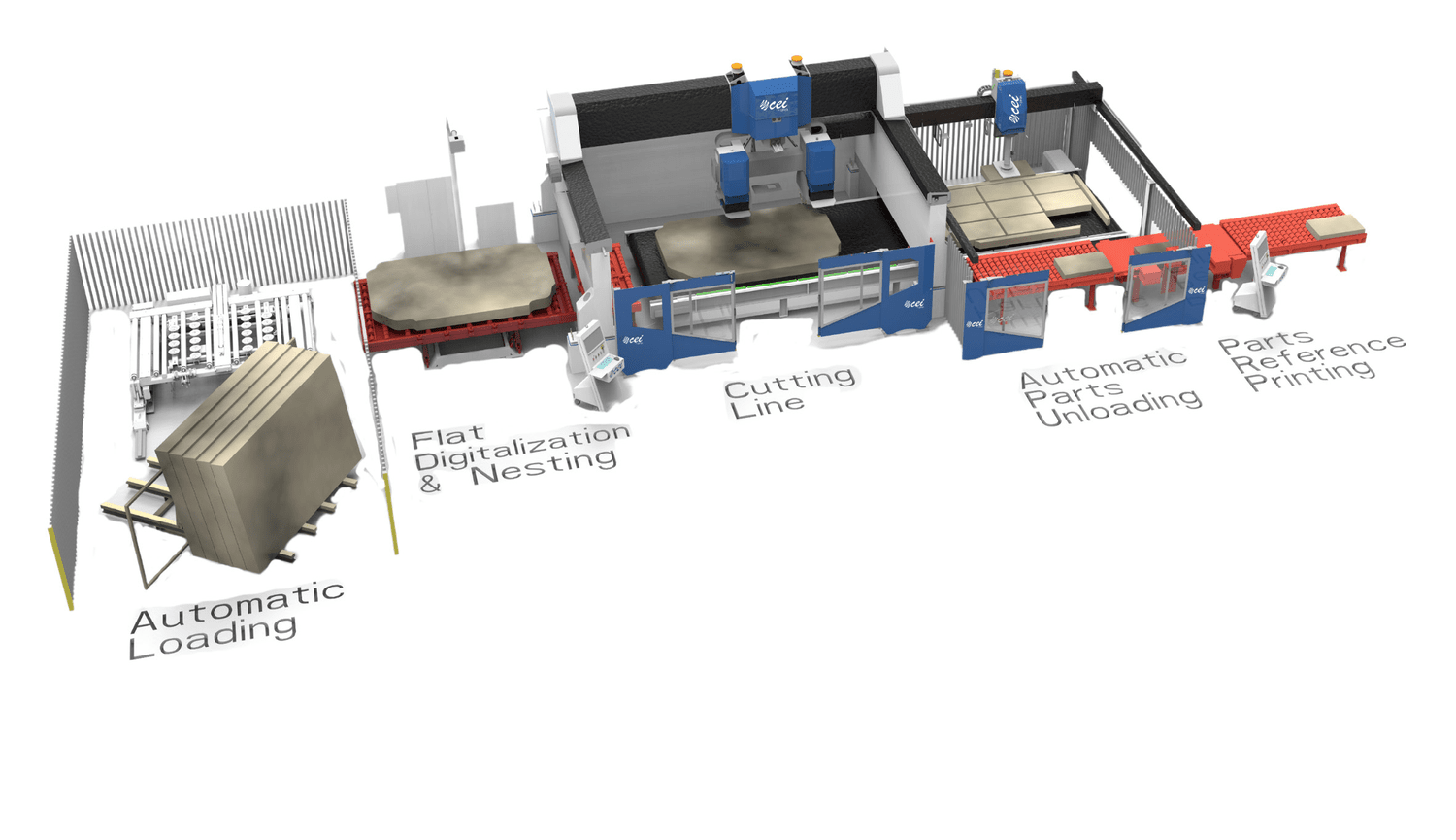

- Automatic unloading and palletizing workflow
- Direct printing and parts-reference integration ready
Gallery

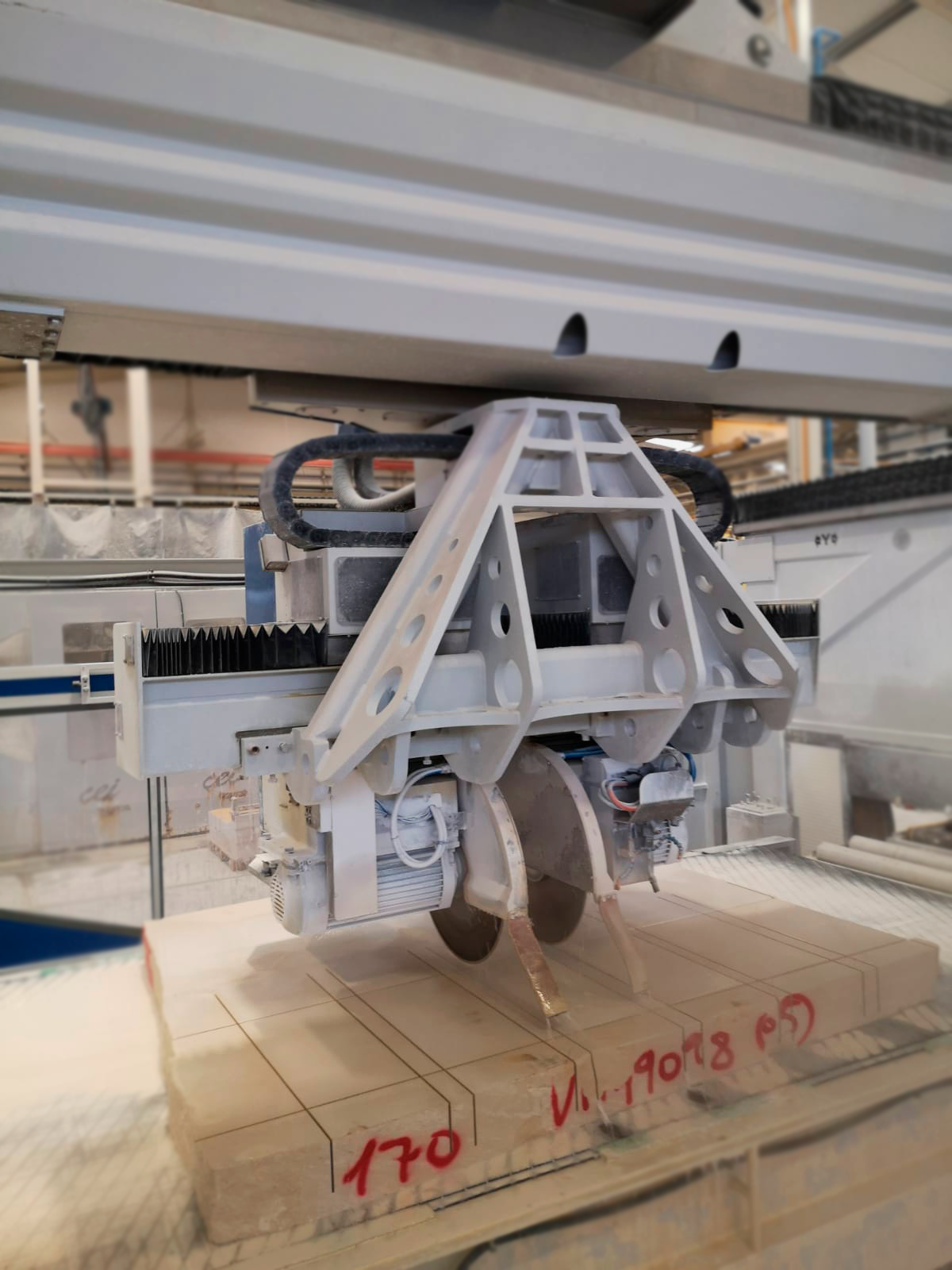

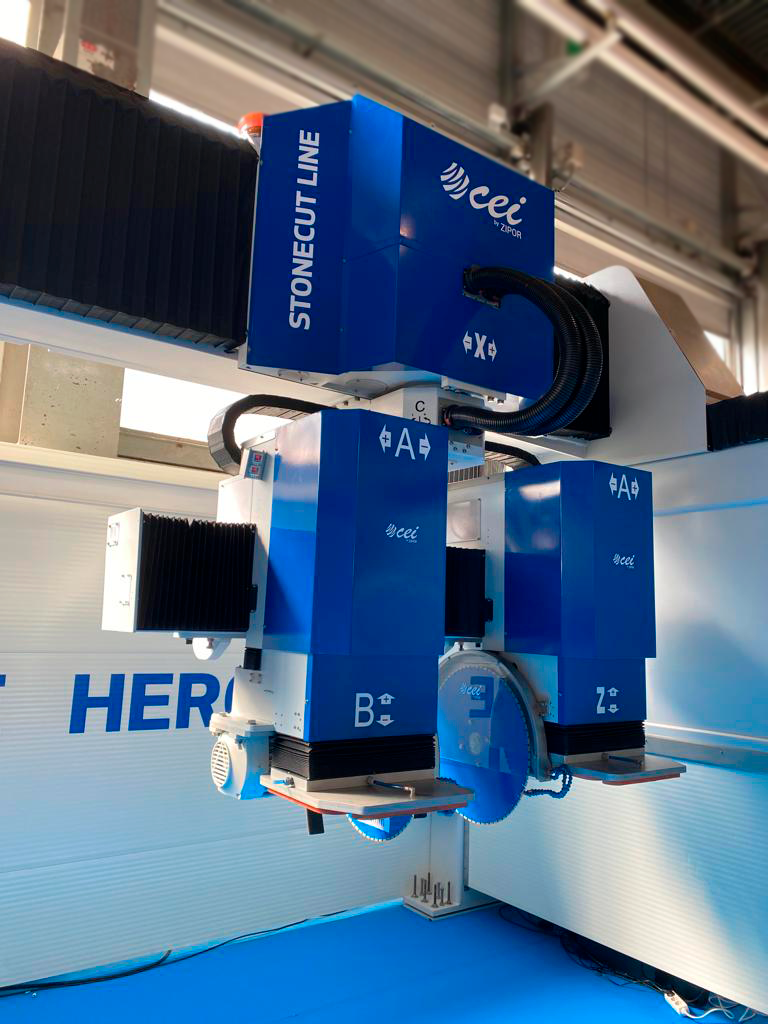

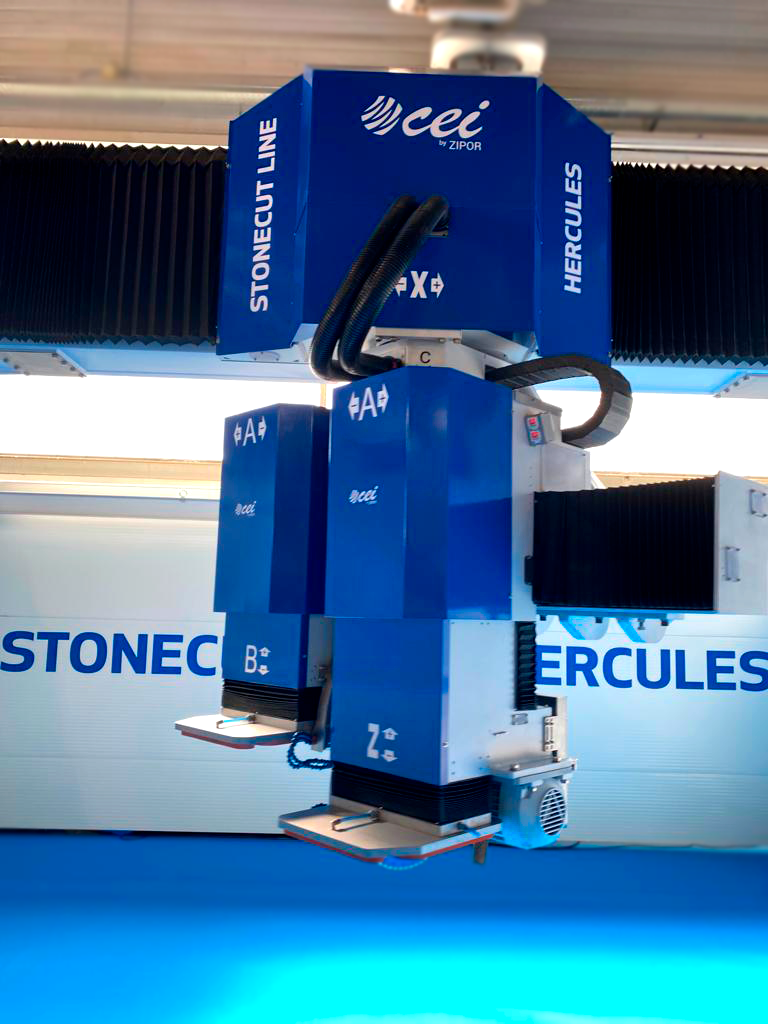

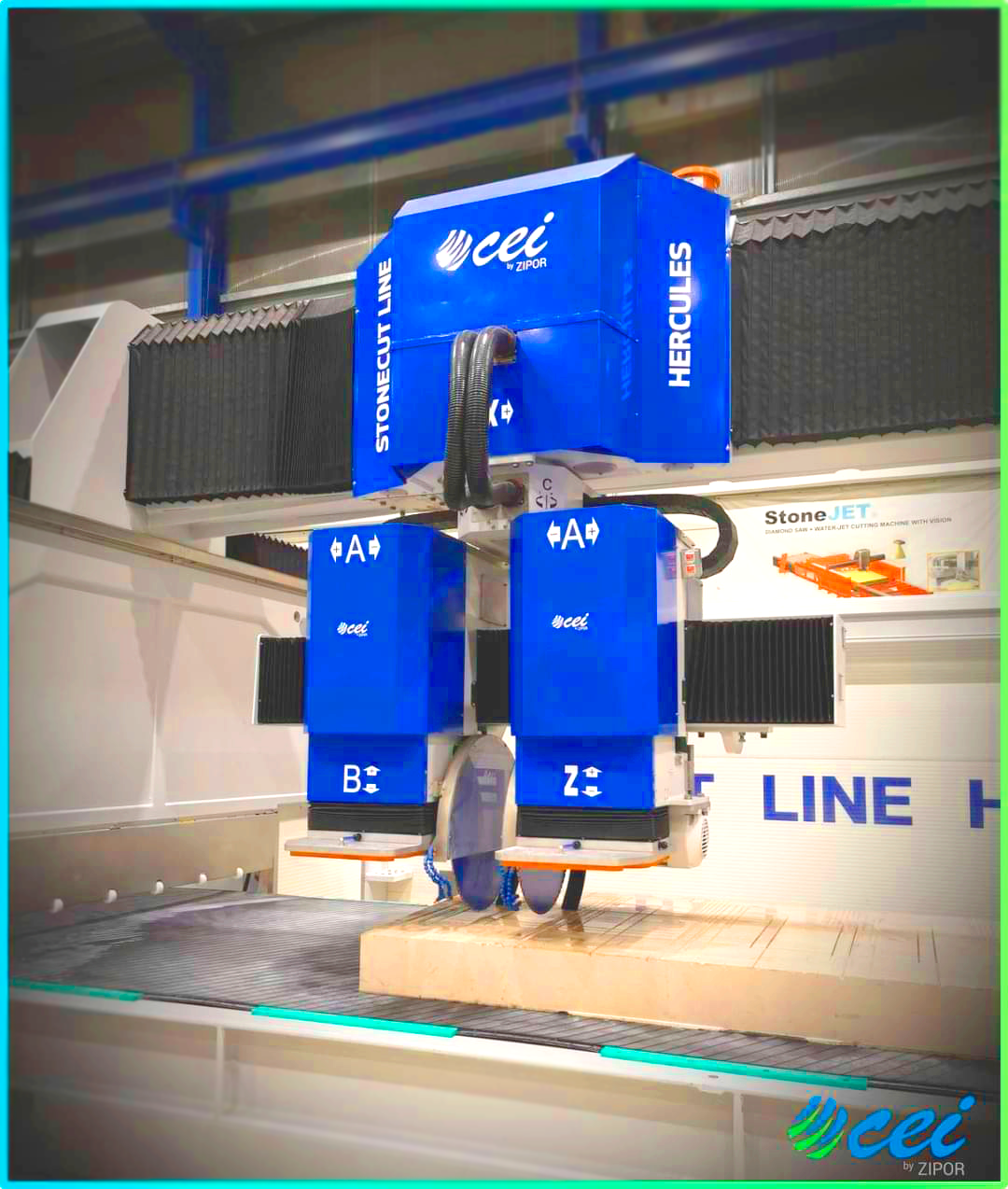

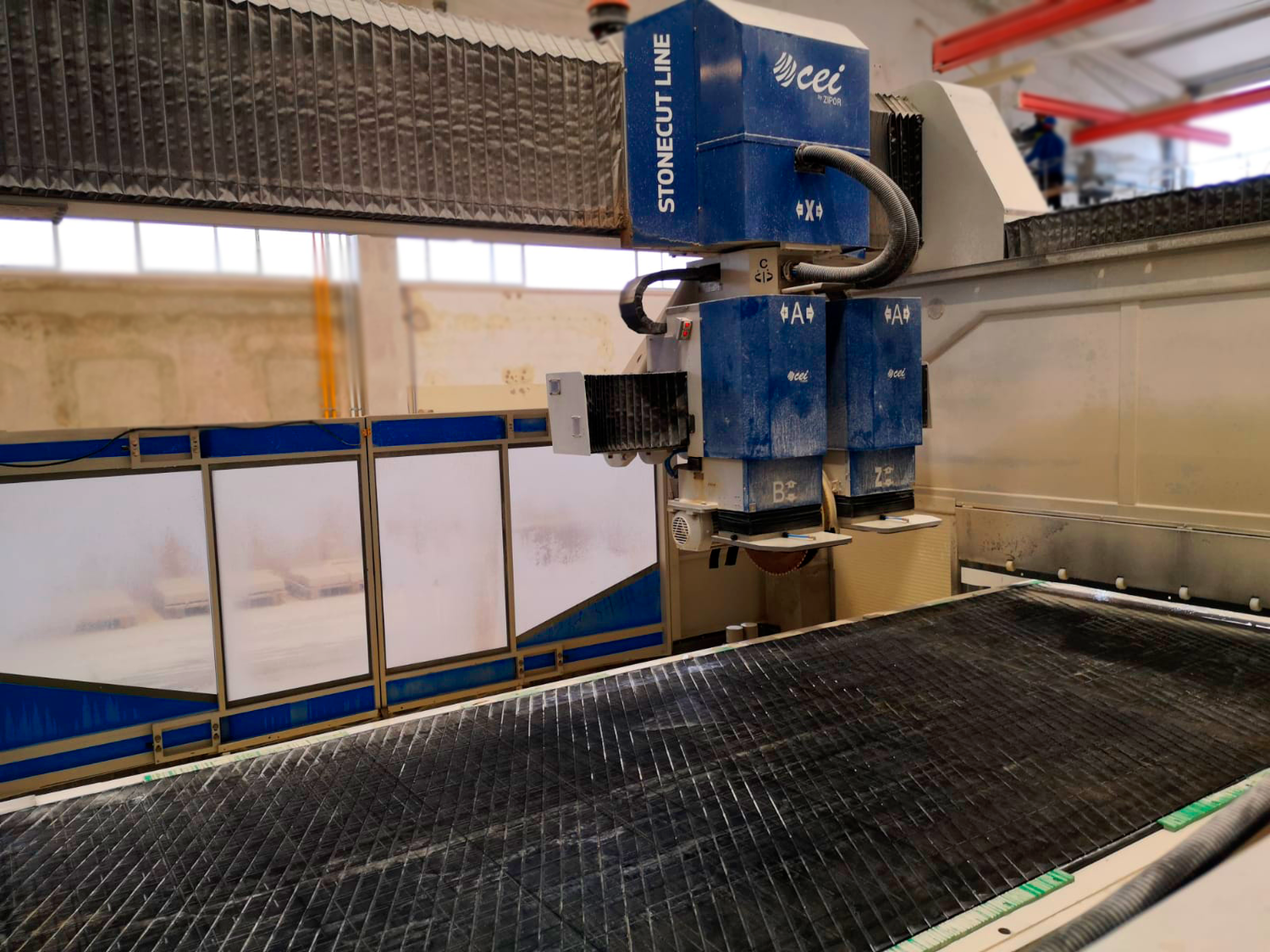

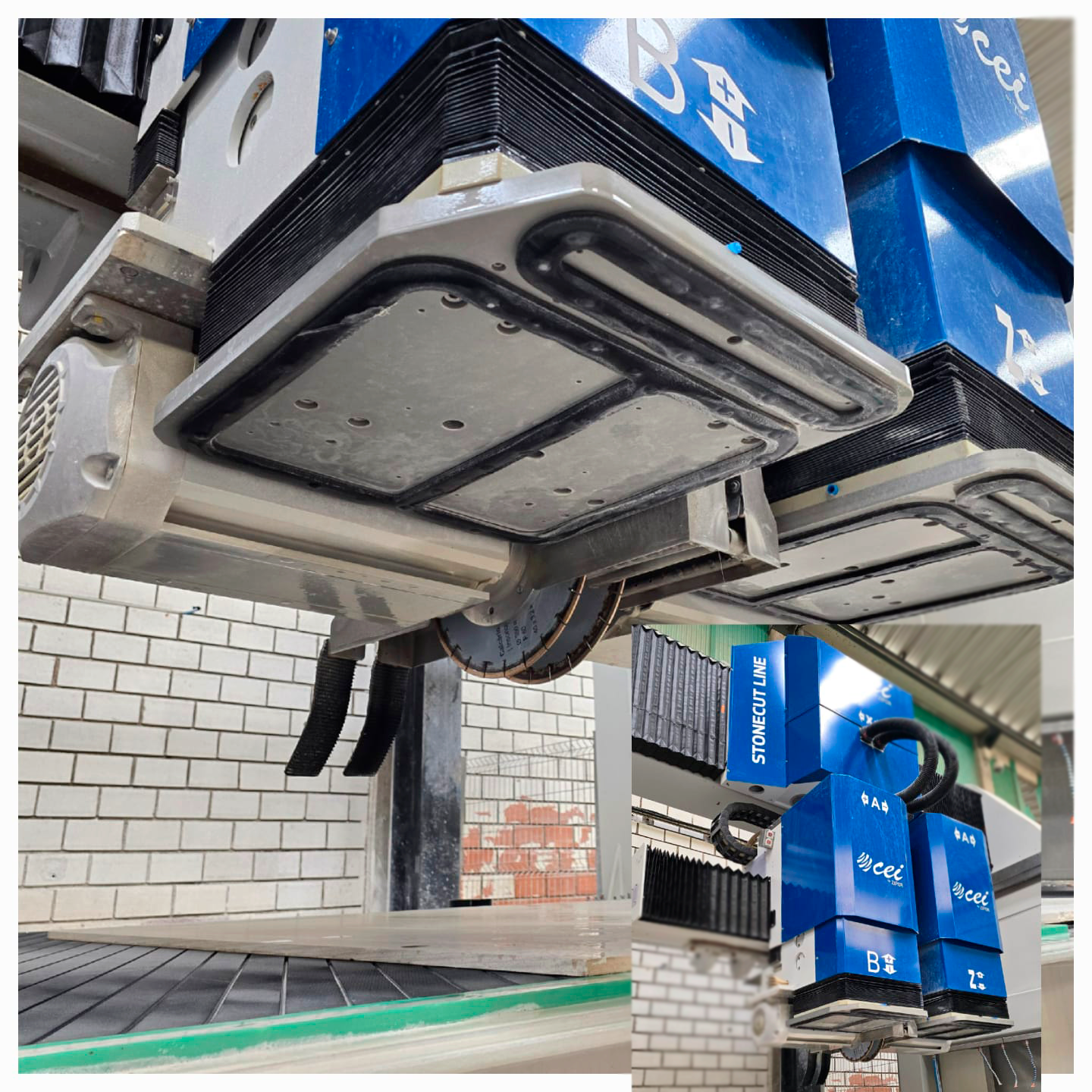

Machine details and applications
A selection of StoneCUT Line Hercules automatic-line details and applications.
