StoneCUT LINE
Full CNC monoblock 5-axis cut-to-size machine for ornamental and engineered stone, designed for tilted cuts from 0º to 90º, drilling, milling and engraving, with artificial vision and Industry 4.0 connectivity.
Layout
Dimensions and working area

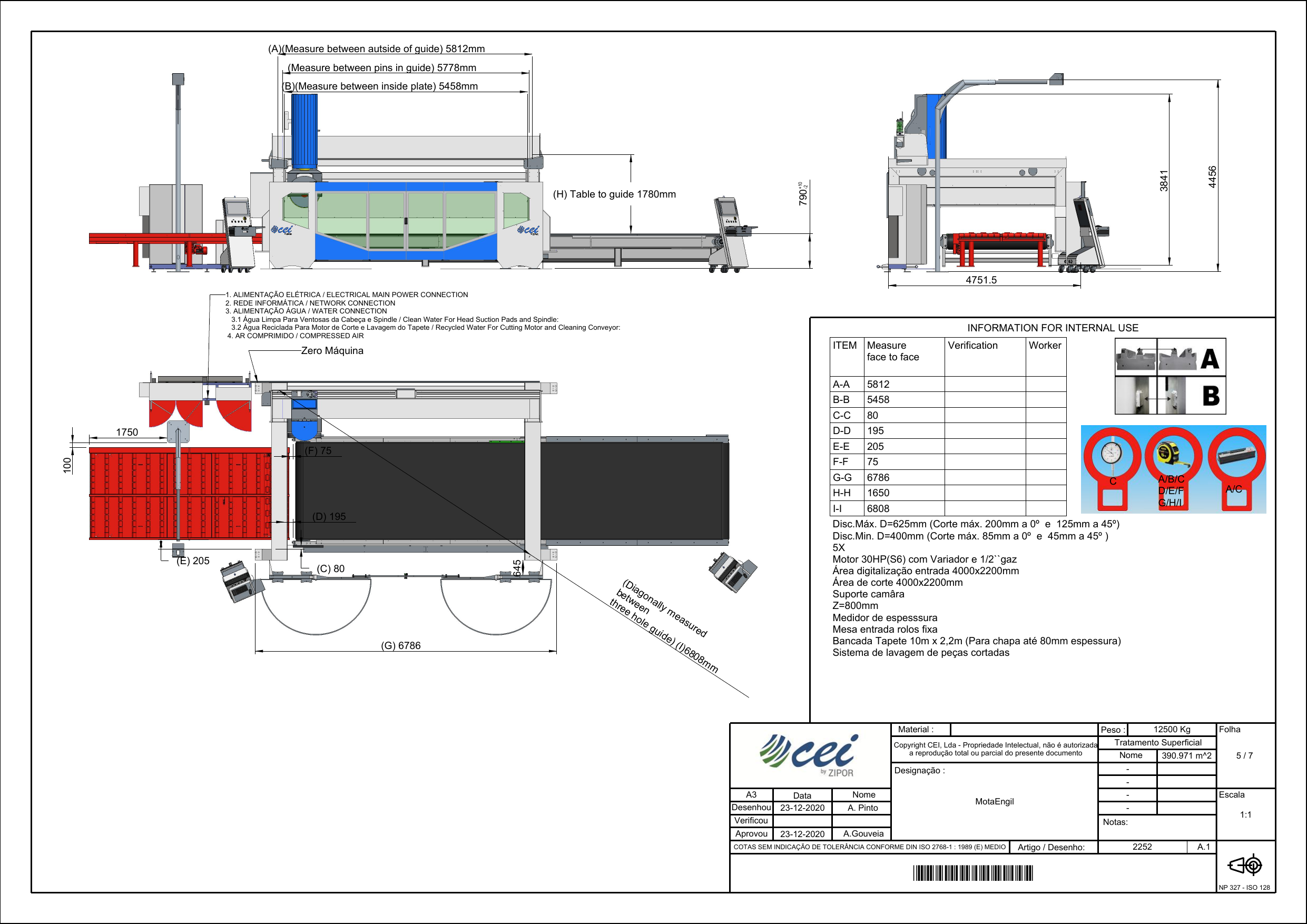

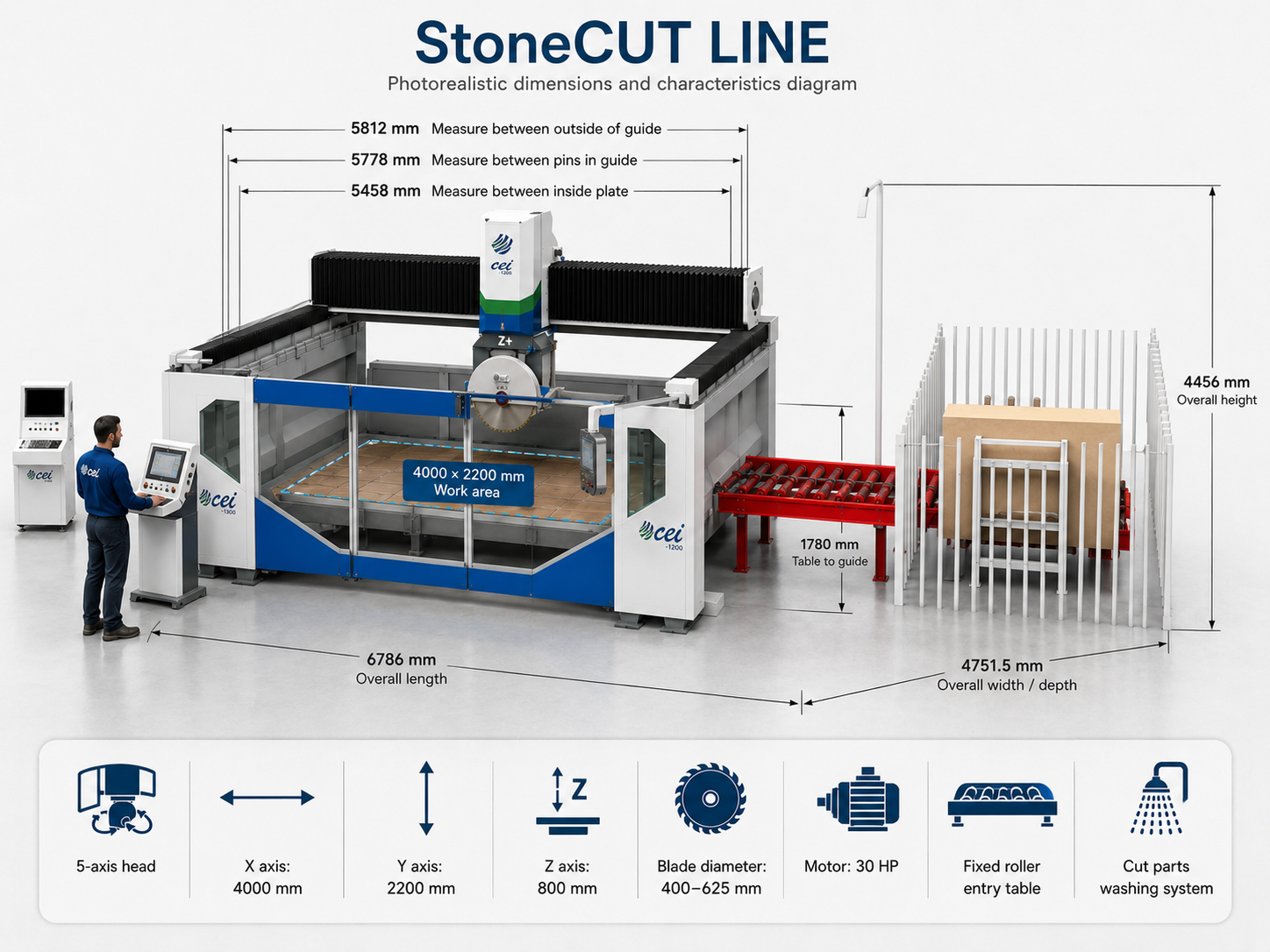

Main machine view and technical layout with the main StoneCUT LINE dimensions, working area and operator scale reference.
Equipment features
- Full CNC cutting line: 5 axis
- Saw diameter: 400 to 625 mm
- Digitalization entry area: 4000 × 2200 mm
- Cutting area: 4000 × 2200 mm
- Vertical Z axis: 800 mm
- 30 HP (S6) motor with inverter and 1/2” gas
- Maximum cut: 200 mm at 0º / 125 mm at 45º
- Minimum cut: 85 mm at 0º / 45 mm at 45º
- Thickness measuring system
- Wall camera support
- Fixed roller entry table
- Cut-parts washing system
Options and connectivity
- Electrical main power connection
- Network connection
- Clean water for head suction pads and spindle
- Recycled water for cutting motor and conveyor cleaning
- Compressed air connection
- Factory, machine and reference zero positions
- Open door clearance: 600 mm / 1350 mm
- Designed for automated ornamental and engineered stone cutting
Gallery
Machine details and applications

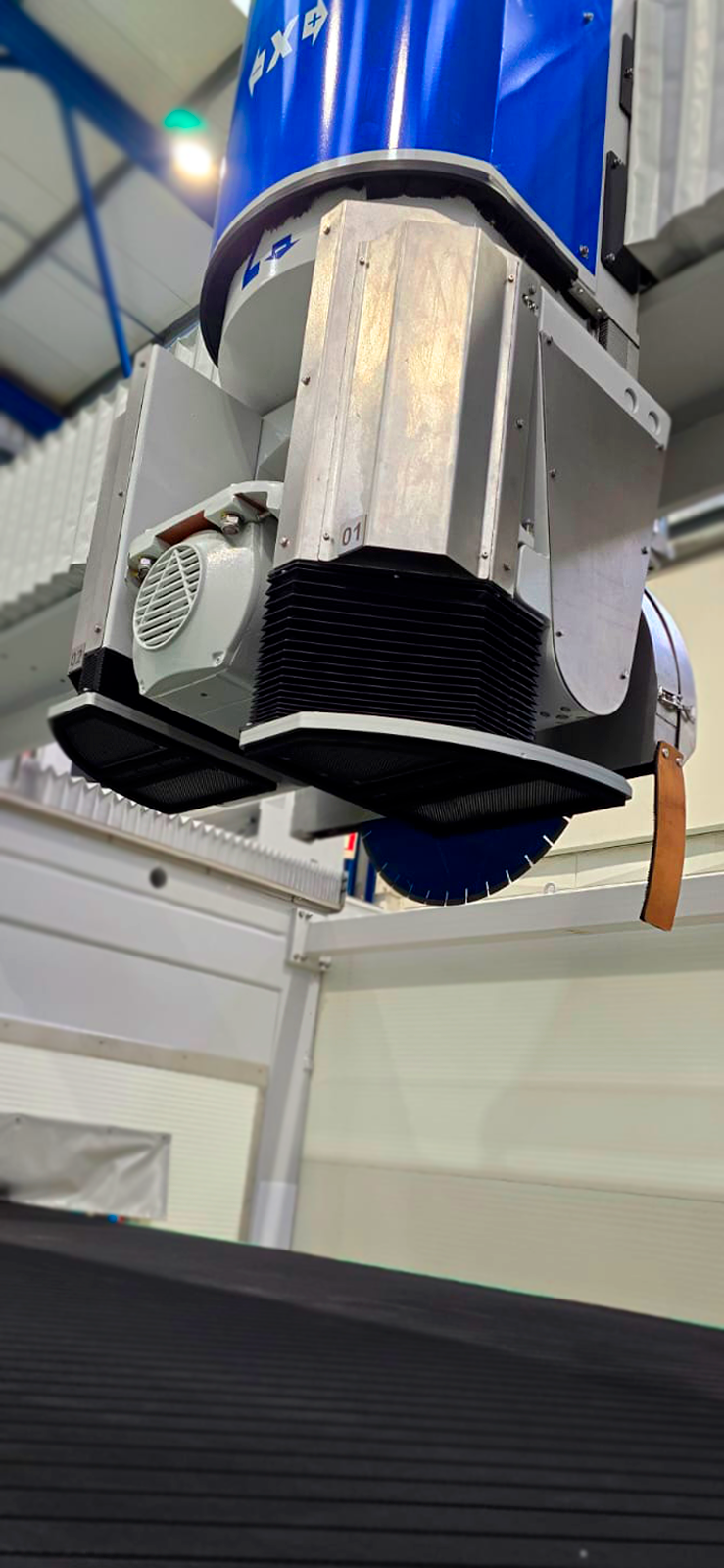

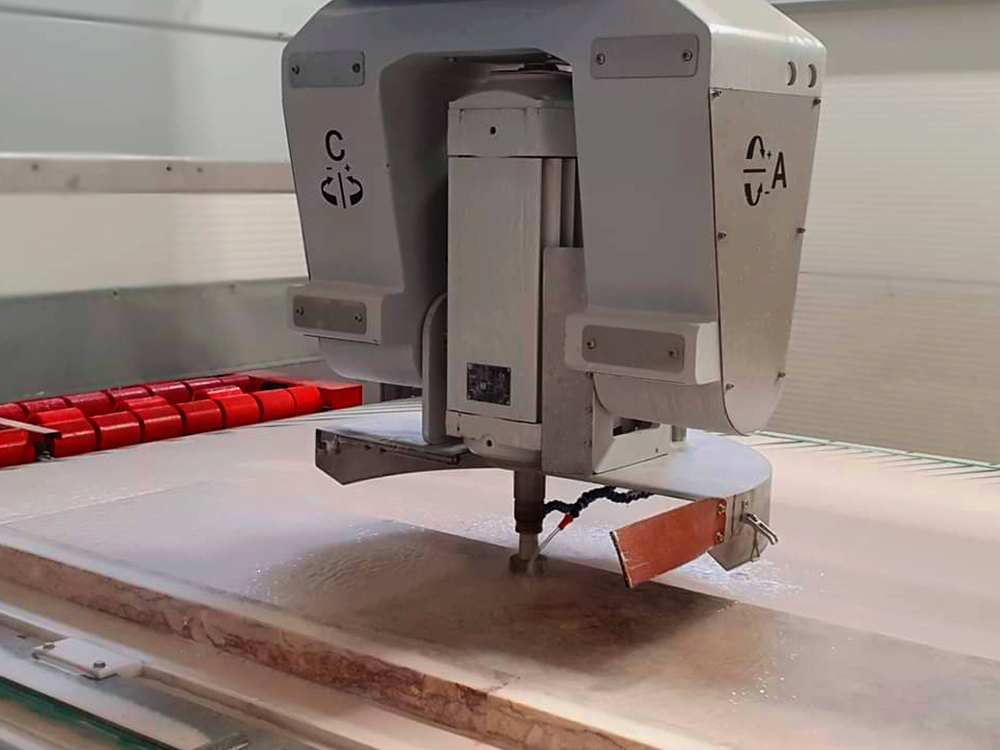

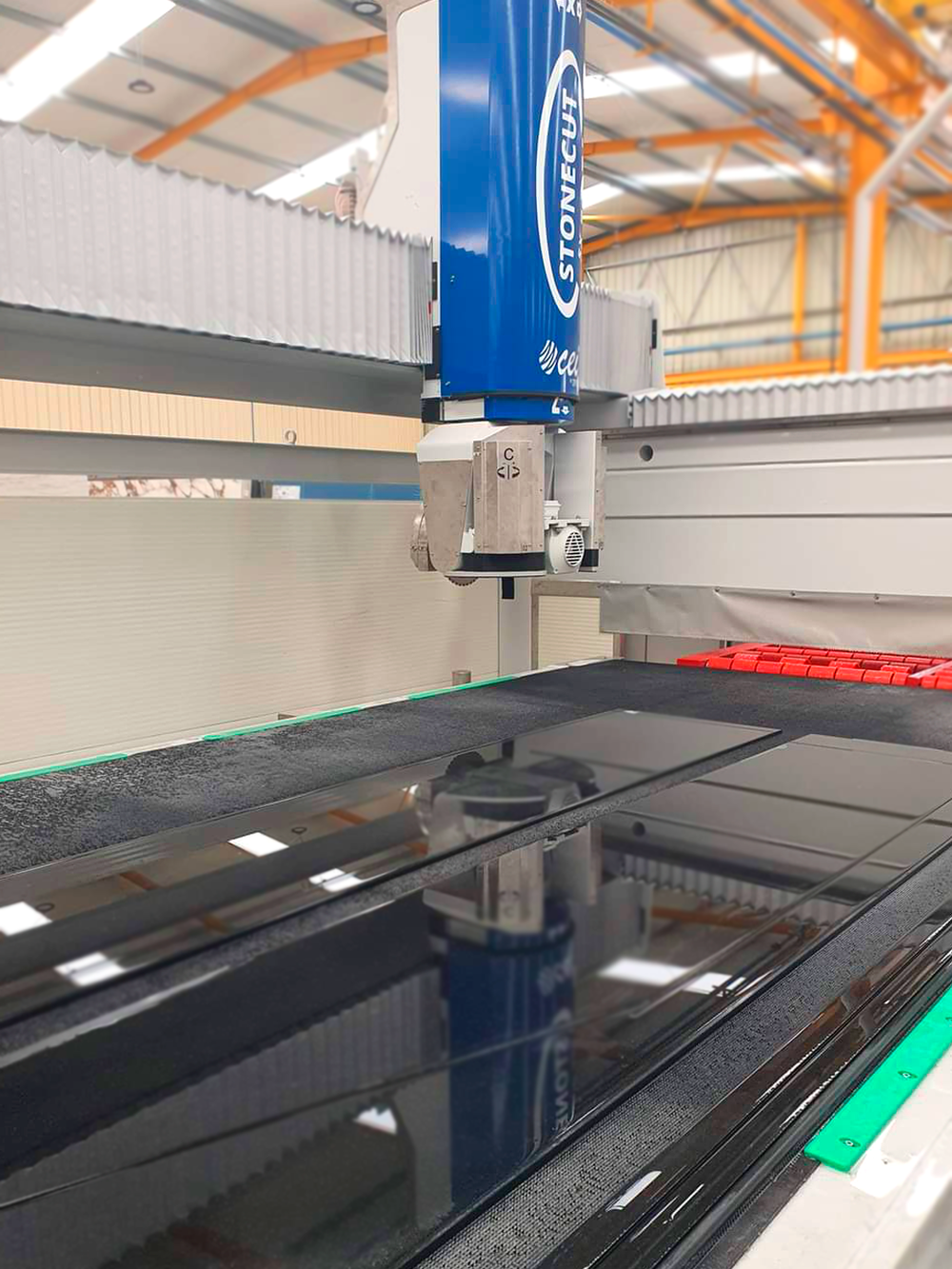

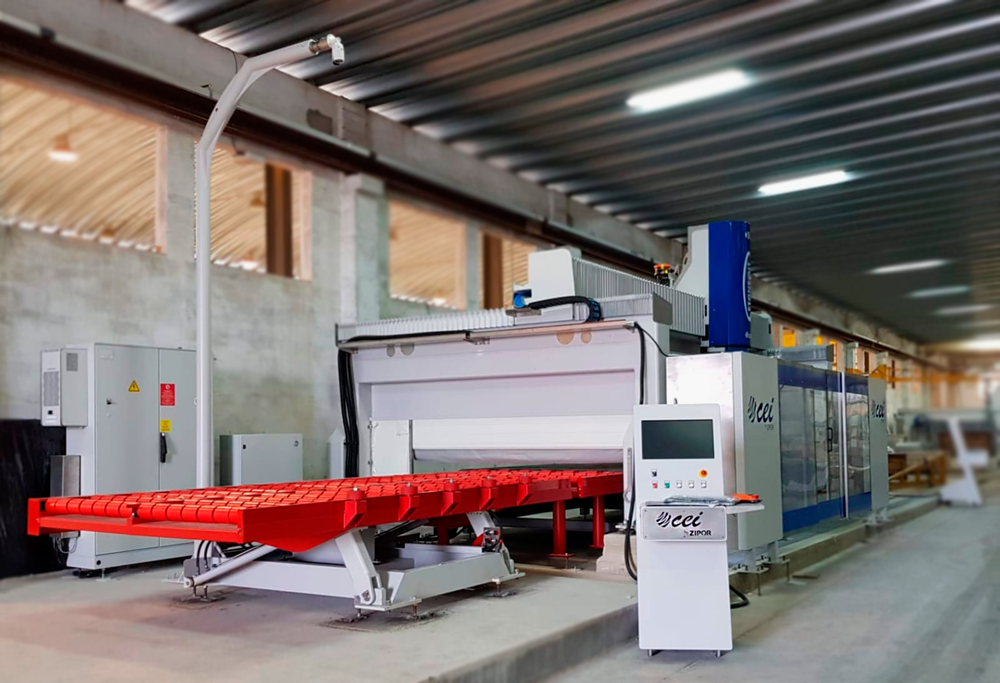

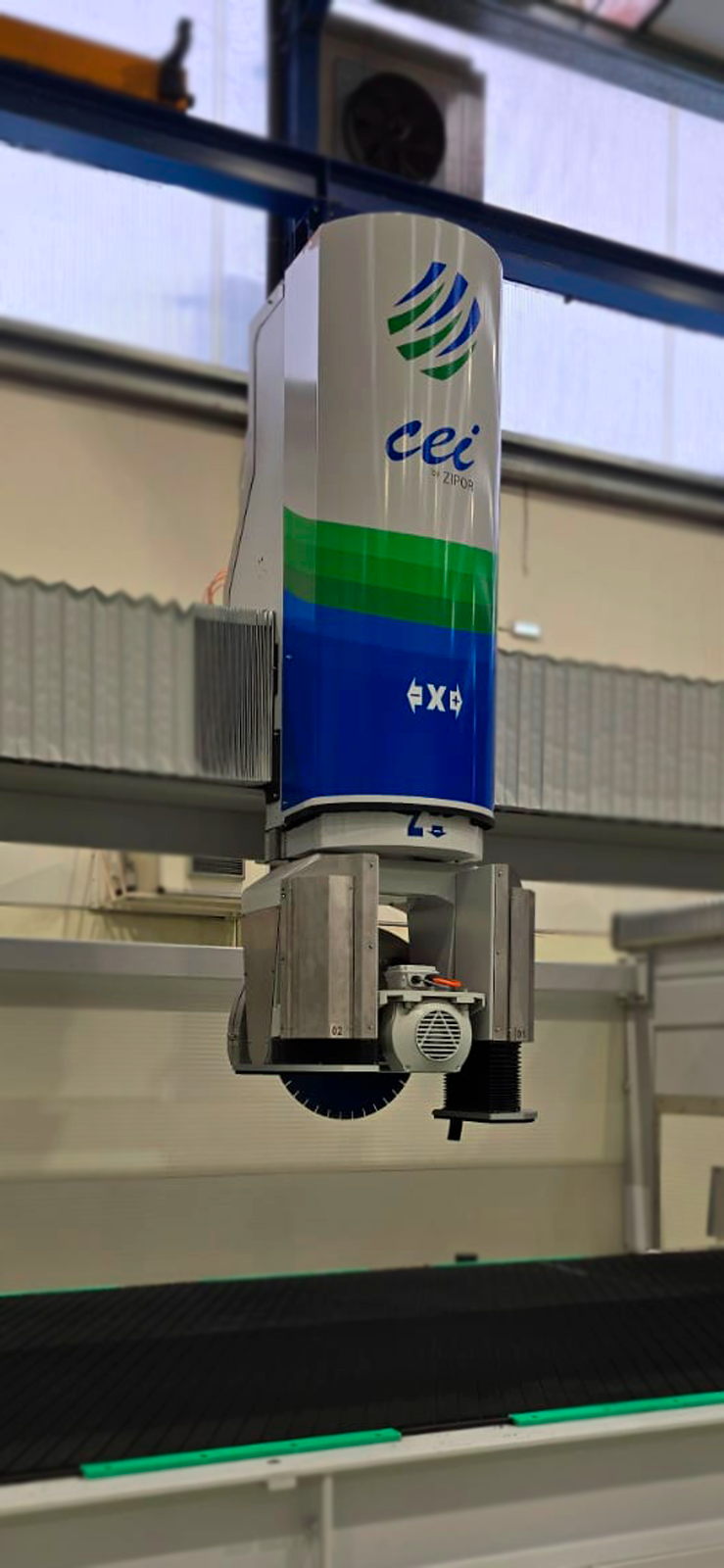

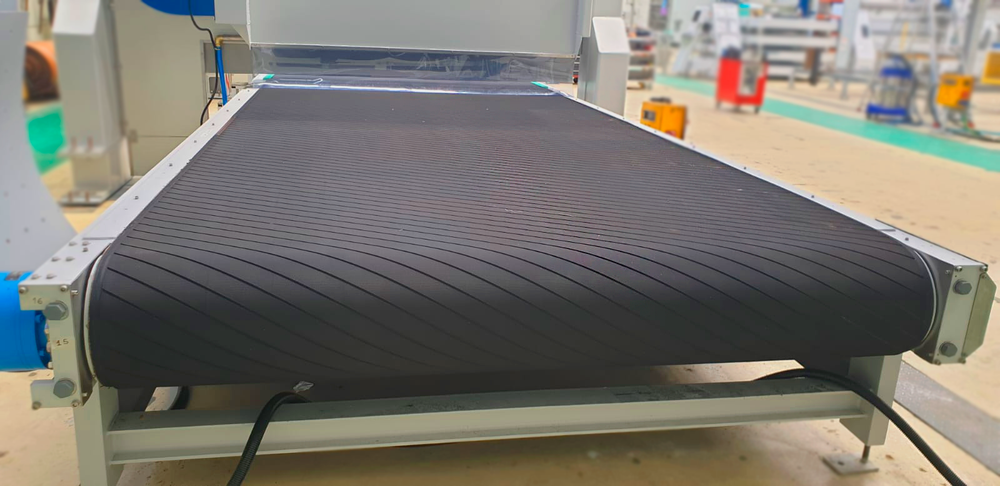

A selection of StoneCUT LINE machine details and applications.
