StoneCUT Mill Line

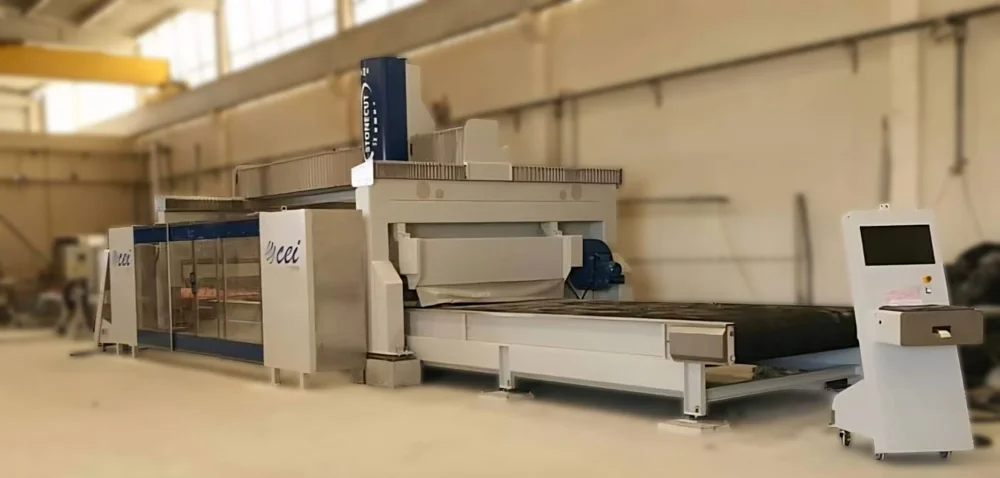

5-axis CNC monoblock machine for ornamental and engineered stone, designed for cutting, drilling, milling and engraving, with vision system, 400 kg vacuum cups and hydraulic tilting arms.
Layout
Dimensions and working area
Full line overview and technical layout with the main StoneCUT Mill Line dimensions, working areas and equipment configuration.
Equipment features
- Full CNC cutting and milling line: 5 axis with vacuum cups
- Saw diameter: 300 to 625 mm
- Useful cutting area: 4000 × 2200 mm
- Z axis: 800 mm for automatic tool changing
- 22 HP (S6) spindle motor with BT40 cone
- 10 m × 2.2 m cut belt for slabs up to 80 mm thick
- 4500 × 2200 mm entrance mat table
- Automatic tool measuring and slab thickness probes
- After-cut cleaning and drying system: water removal, fan and sprinkler
- Vision system support
- ATC saw disk for 4 positions
- ATC milling cutters for 12 positions
- Pump lubrication

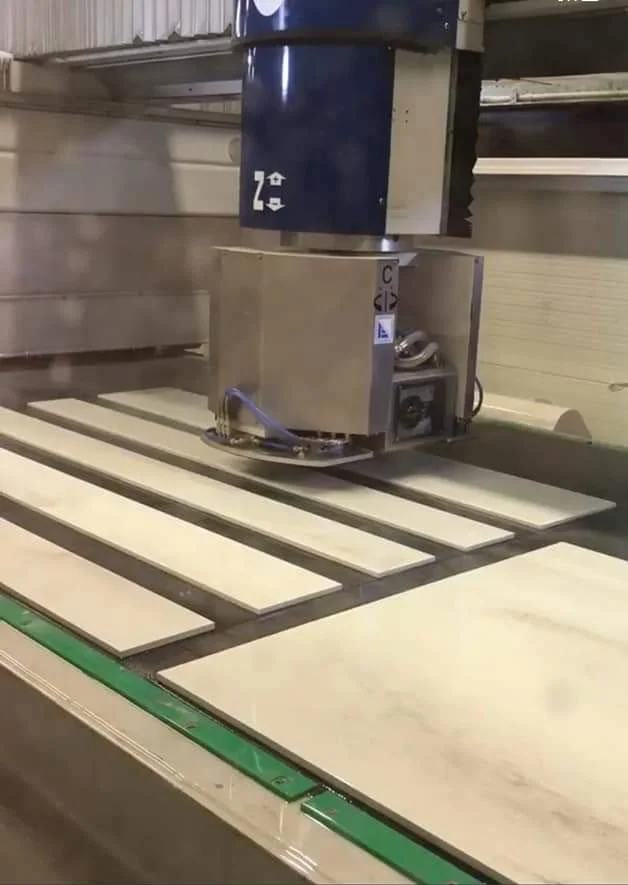

- Vacuum system for piece movement up to 400 kg
Options and connectivity
- Electrical main power connection
- Network connection
- Clean water for head vacuum cups and spindle
- Recycled water for cutting motor and conveyor cleaning
- Compressed air connection
- Factory reference point and machine zero position
- Tilting table for slab loading
- Conveyor belt for simultaneous loading, cutting and unloading
- Parts validation station with barcode printer
- Robotized loading and unloading system
Video
StoneCUT Mill Line in operation
Watch StoneCUT Mill Line in a dedicated CEI video.
Gallery
Machine details and applications

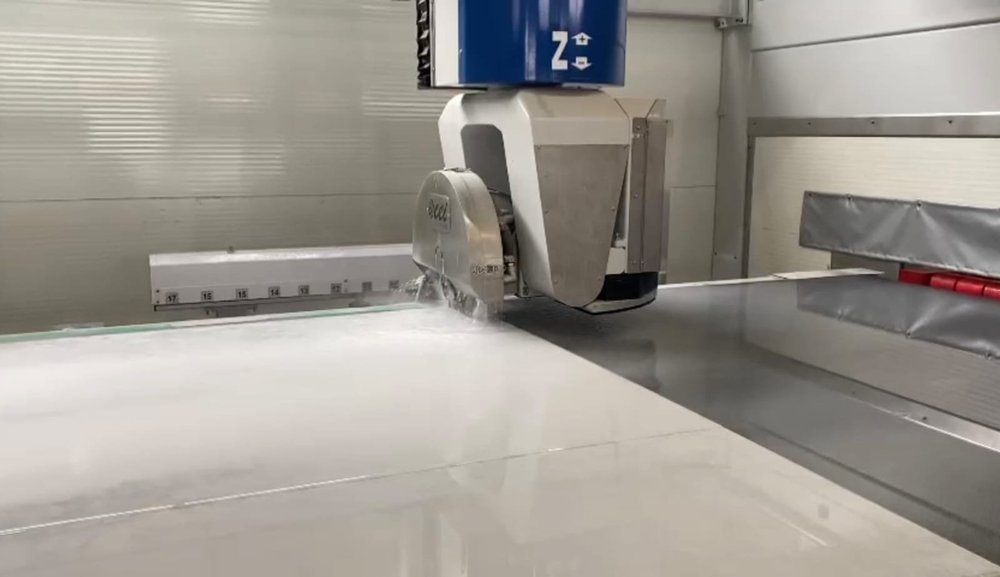

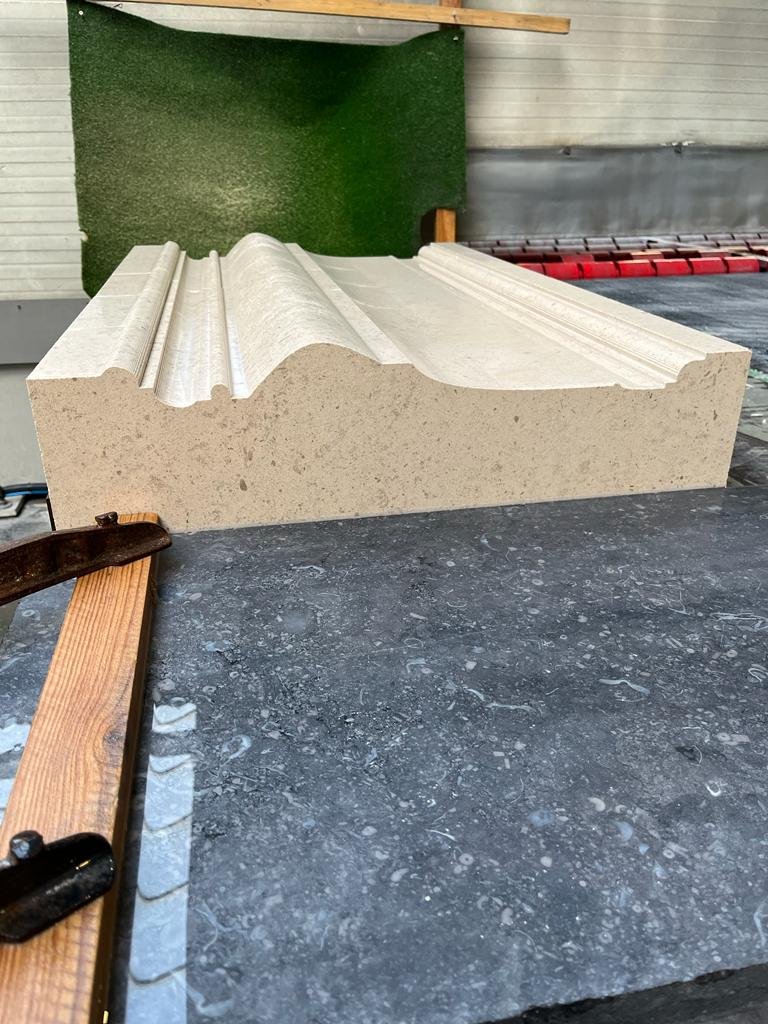

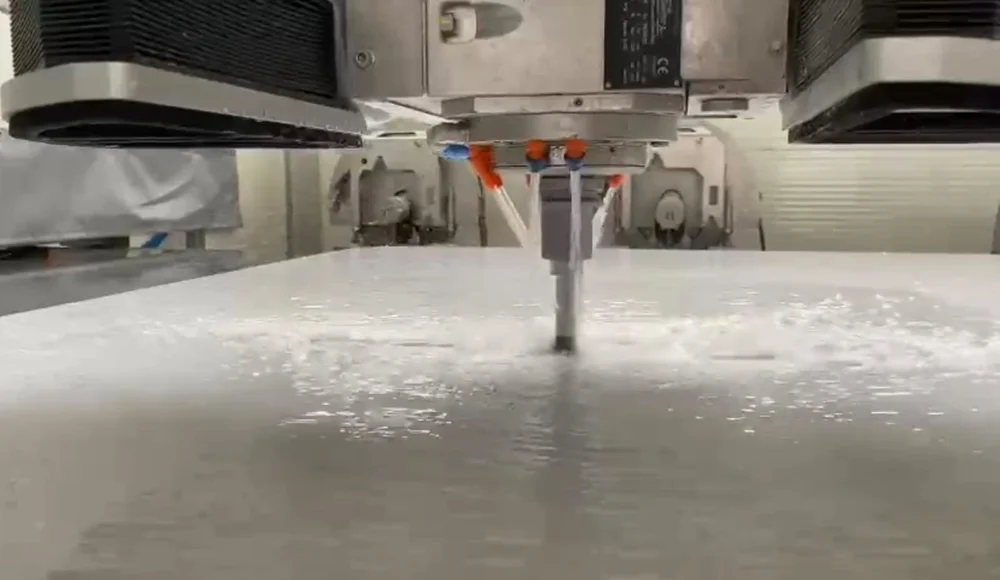

A selection of StoneCUT Mill Line machine details and applications.
