StoneCUT Mill Master Line
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC cutting and milling line: 5 axes
- Cutting area: 3500 × 2200 mm

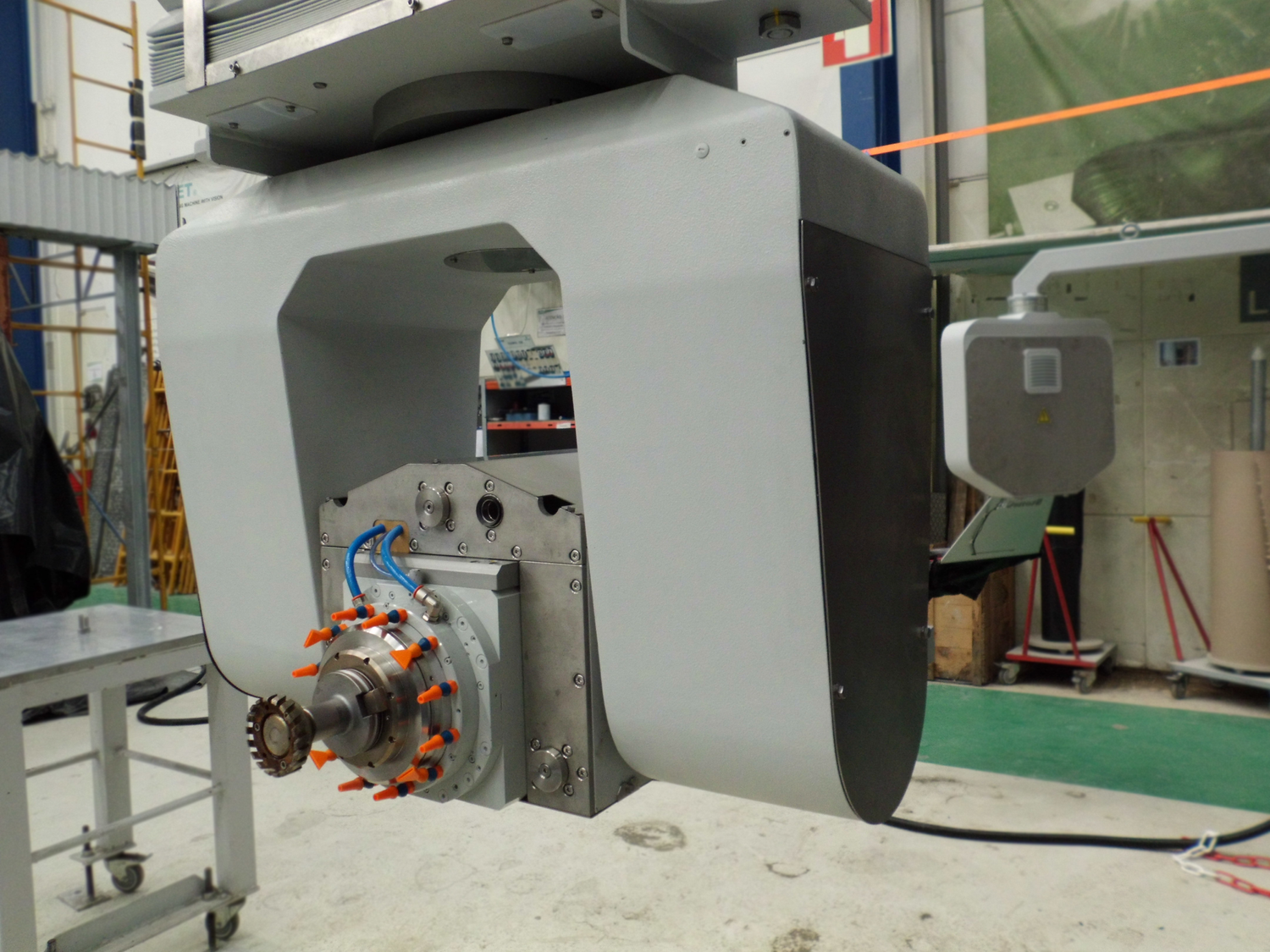

- 40 HP (S6) MTB24 motor / spindle with ISO50 cone
- Z axis: 1000 mm
- Saw diameter: 600 to 1000 mm
- Maximum cut: 360 mm at 0º / 255 mm at 45º
- Minimum cut: 160 mm at 0º / 120 mm at 45º

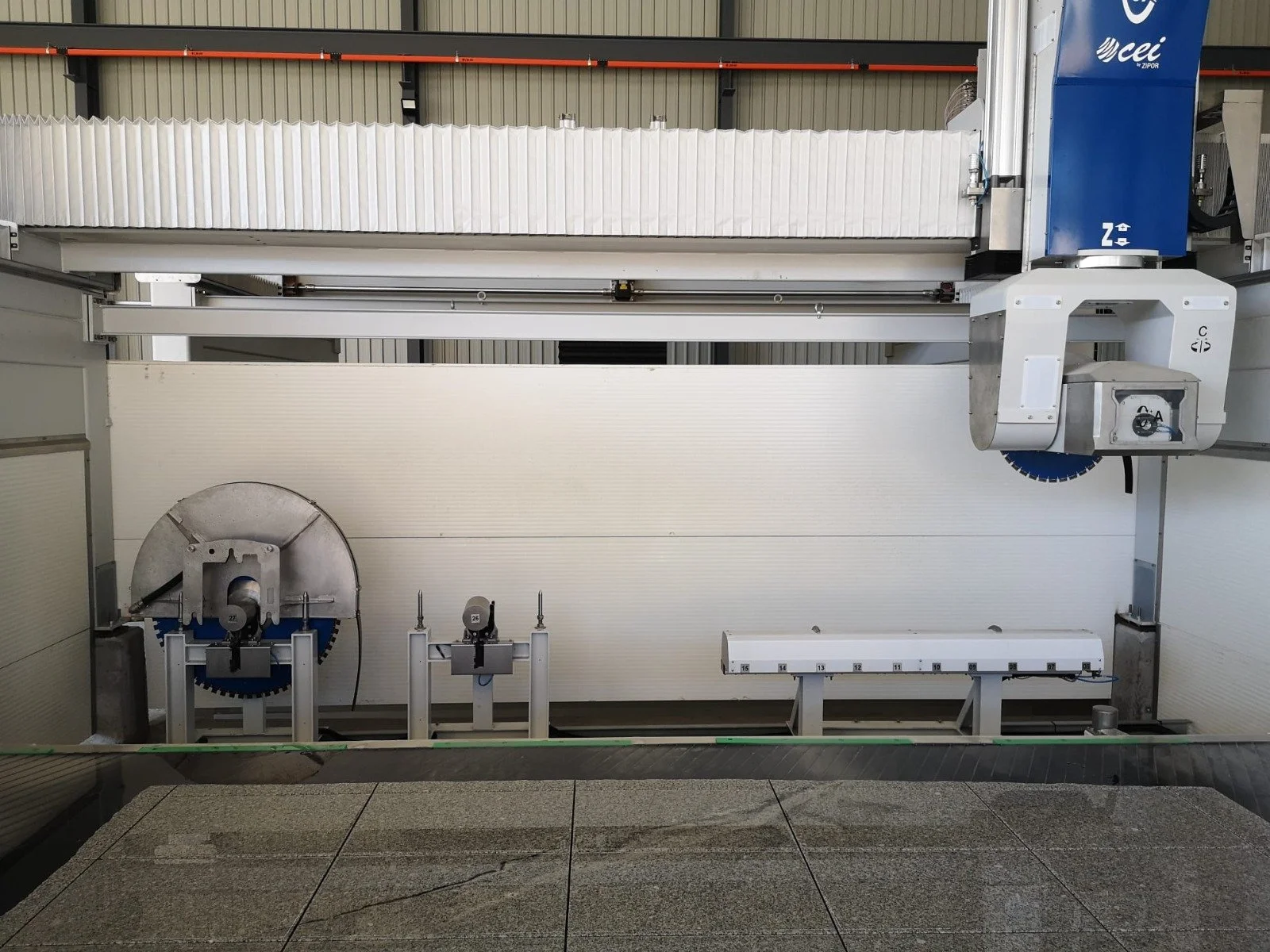

- Automatic tool changer: 2 discs and 10 milling cutters
- Maximum stone height: 200 mm
- Stone thickness and tool measuring system
- Fixed ceiling-mounted vision system
- 2D mould-reading laser

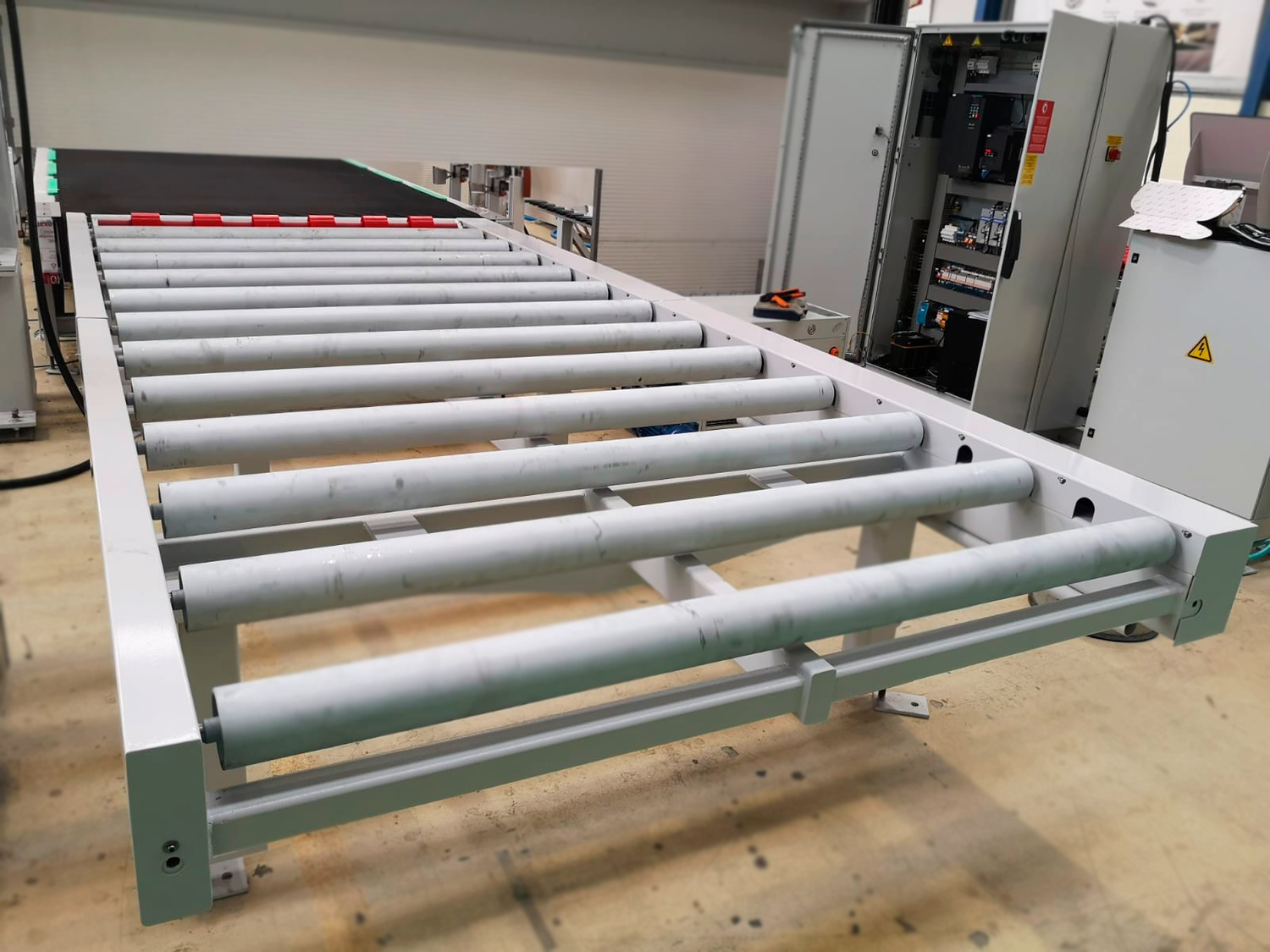

- Fixed roller entry table and cutting conveyor
- Cut parts washing system
- Fixed steel milling table with aluminium bars, automatic lubrication and three adjustable stops
Options and connectivity
- Electrical main power connection
- Network connection
- Water connection
- Compressed air connection
- Clean water for spindle
- Recycled water for cleaning conveyor
- Factory, reference and machine zero positions
- Door opening: 1240 mm
- Front mechanical end-stop
- Fixed machining table: 3500 × 2000 mm
- ISO holders for milling cutters in addition to the disc holders
- Technical layout prepared for installation validation
Video
StoneCUT Mill Master Line in operation
Watch StoneCUT Mill Master Line in a dedicated CEI video.
Gallery
Machine details and applications

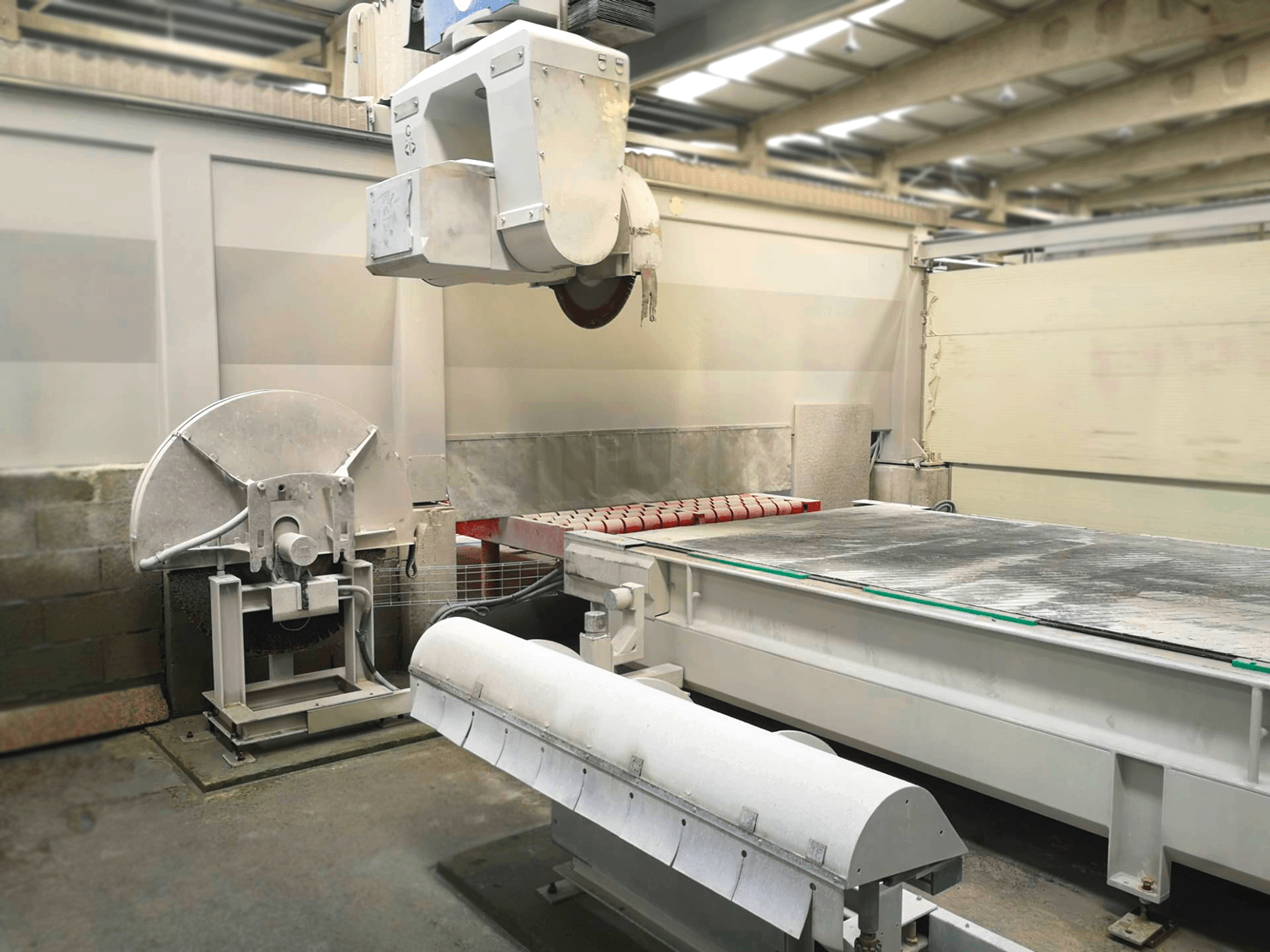

A selection of StoneCUT Mill Master Line machine details and applications.
