StoneCUT Mill Master
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC Mill Master: 5 axes
- Spindle motor for cutting and milling: 37 HP (S6)
- Maximum spindle speed: 8000 rpm
- ISO50 tool connection
- Cutting area: 3750 × 2200 mm
- Minimum disc diameter: 400 mm
- Maximum disc diameter: 900 mm
- Maximum cutting thickness: 305 mm
- Electrical cabinet cooling system
- Automatic tool changer: 10 tool positions
- Two automatic disc holders
- Vacuum system for moving cut parts
- Automatic lubrication
- Removable work platform
- Factory-ceiling vision system
Options and connectivity
- Electrical main power connection
- Network connection
- Water connection
- Compressed air connection
- Clean water for spindle cooling
- Recycled water for cutting motor and machine cleaning
- Front stops with 90 mm
- Rear stops with 10 mm
- JOG control cable route to the electrical cabinet
- Levelled floor area for automatic tool changers
- Automatic cutting and milling tooling configuration
- Technical layout prepared for validation and installation
Video
StoneCUT Mill Master in operation
Watch StoneCUT Mill Master in a dedicated CEI video.
Gallery

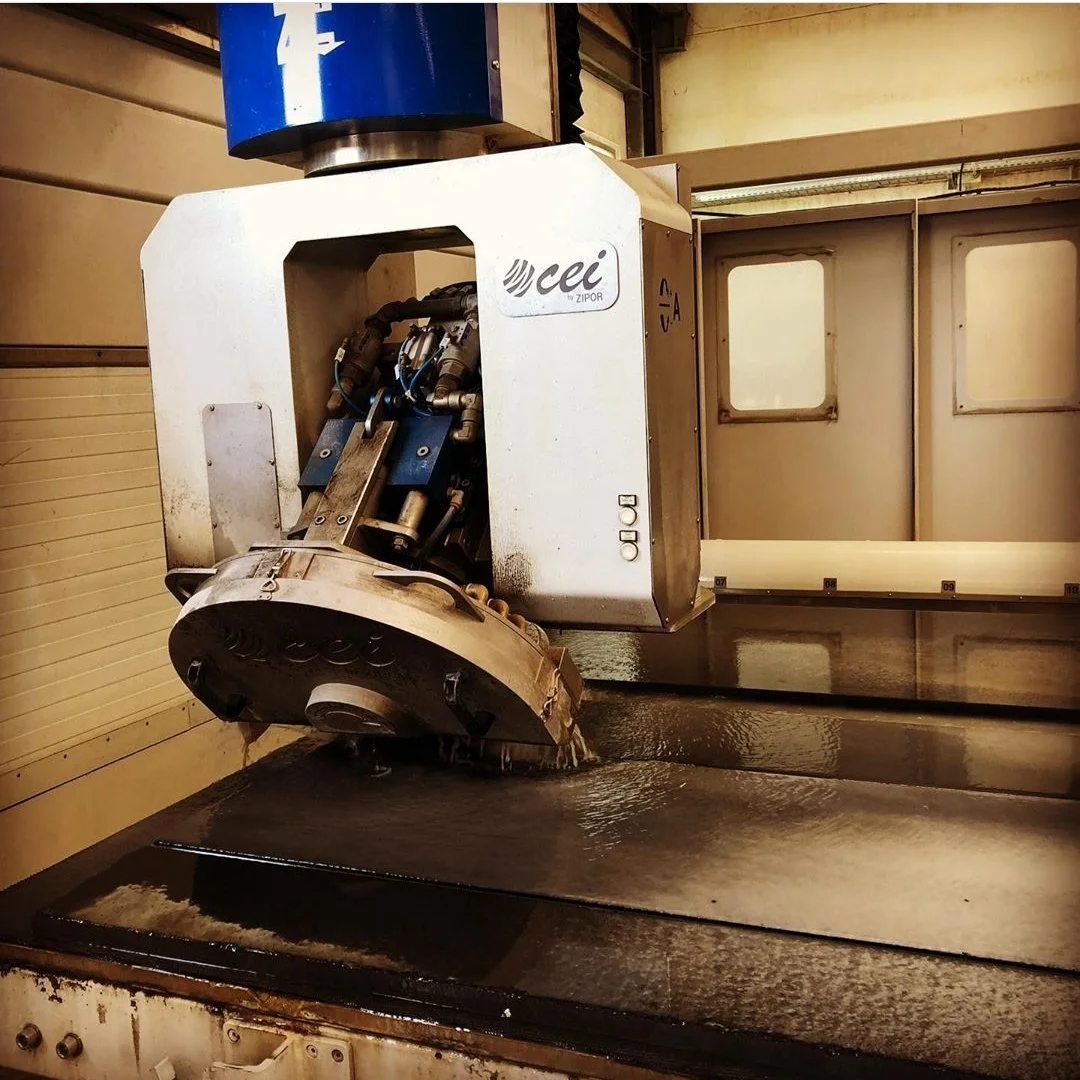

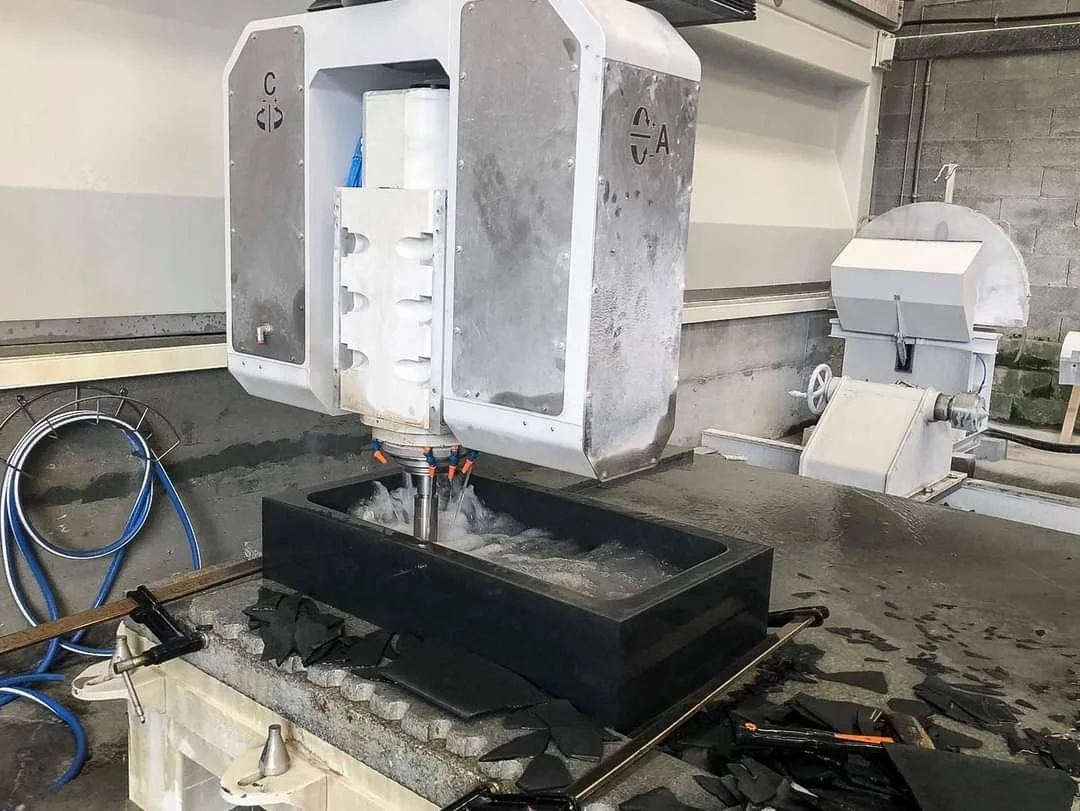

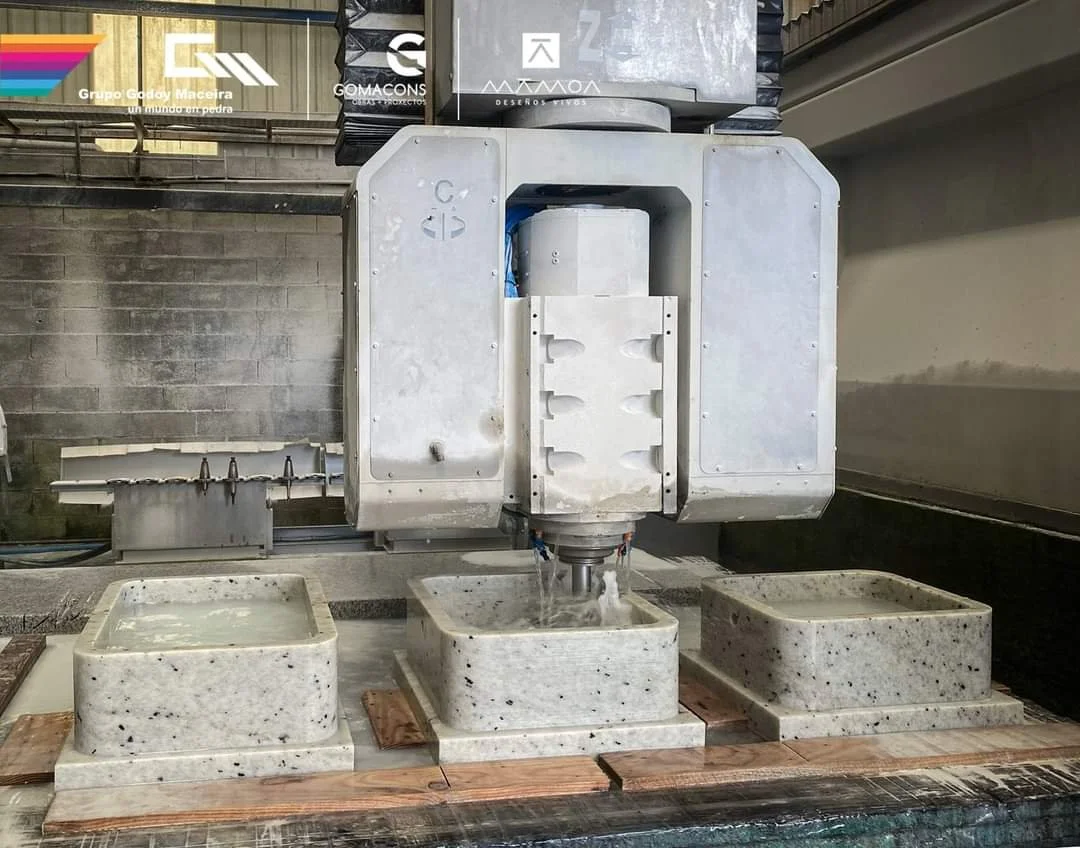

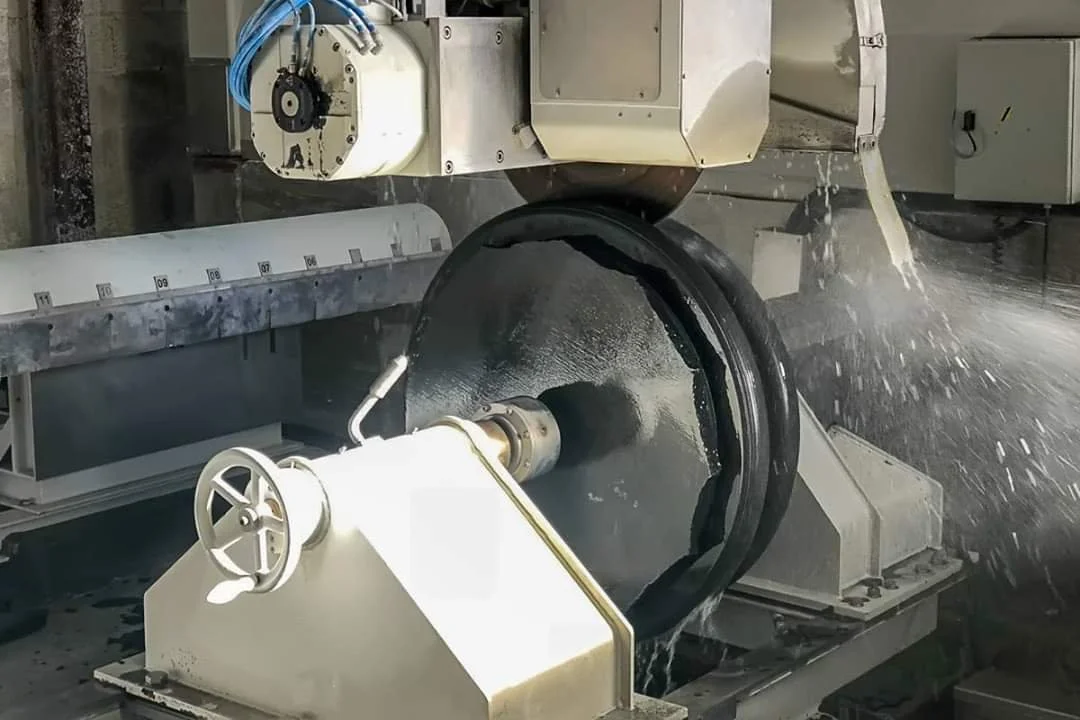

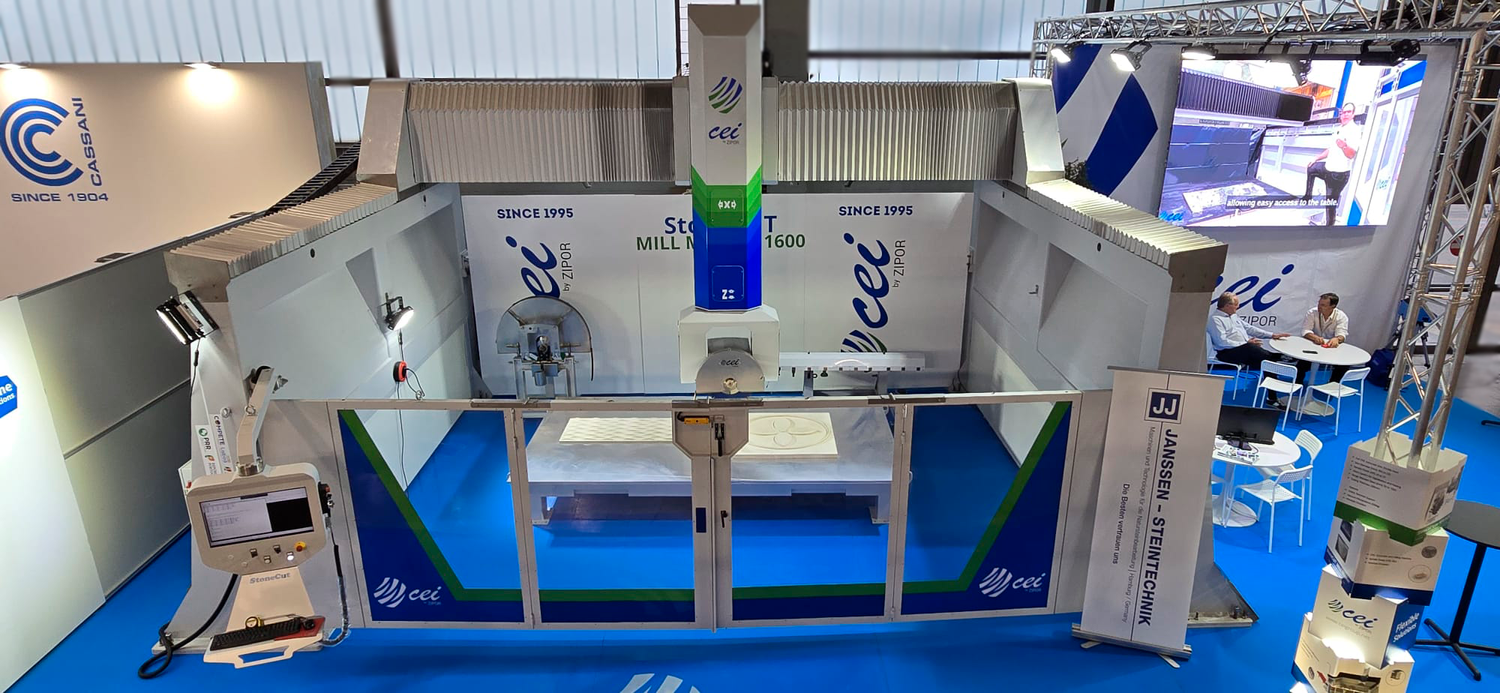

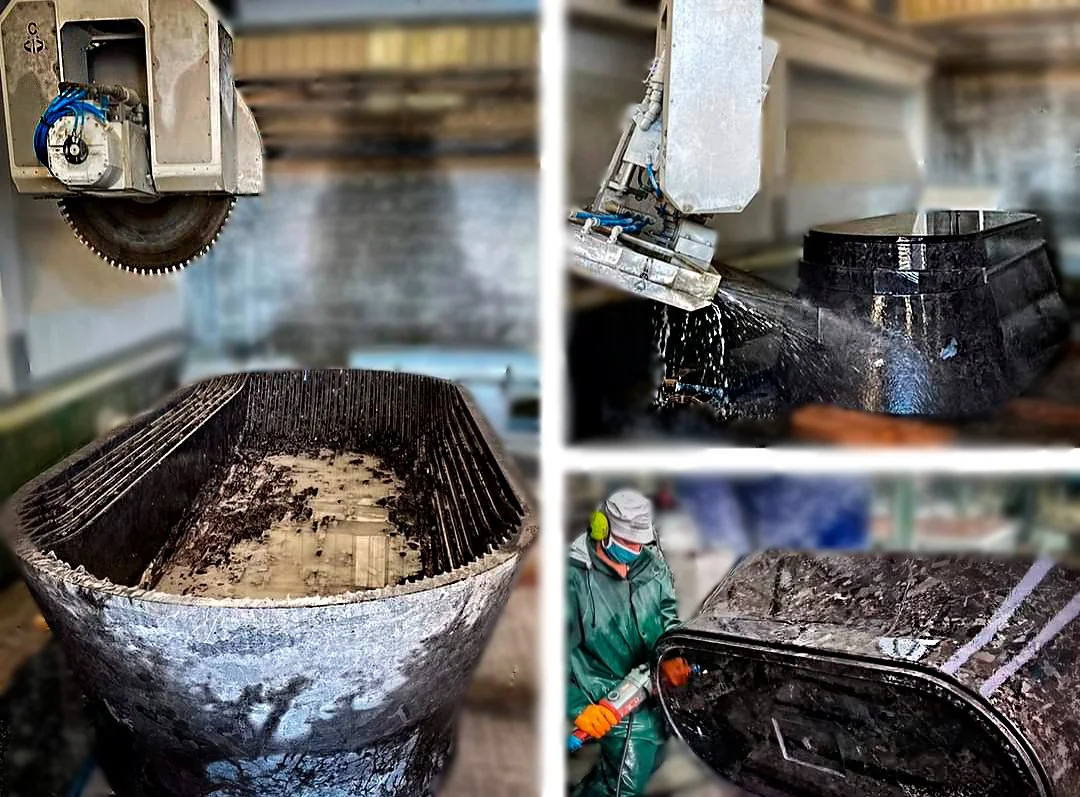

Machine details and applications
A selection of StoneCUT Mill Master machine details and applications.
Need more information about StoneCUT Mill Master?
Contact CEI to discuss technical requirements, configuration options and the most suitable StoneCUT Mill Master solution for your production needs.
