StoneCUT Mill
5-axis CNC monoblock machine for ornamental and engineered stone, designed for cutting, drilling, milling and engraving, with vision system, 400 kg vacuum cups and hydraulic tilting arms.
Layout
Dimensions and working area

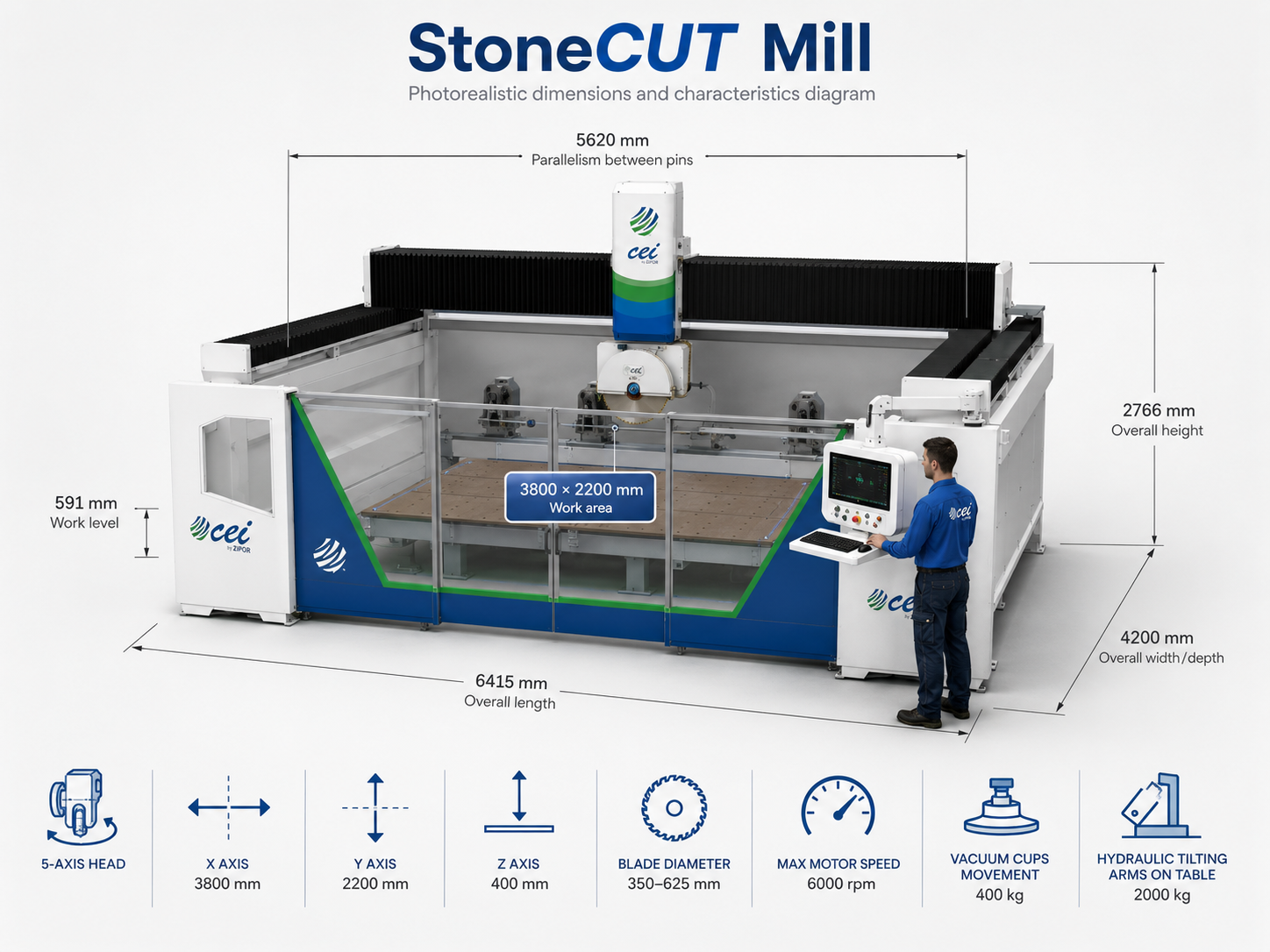

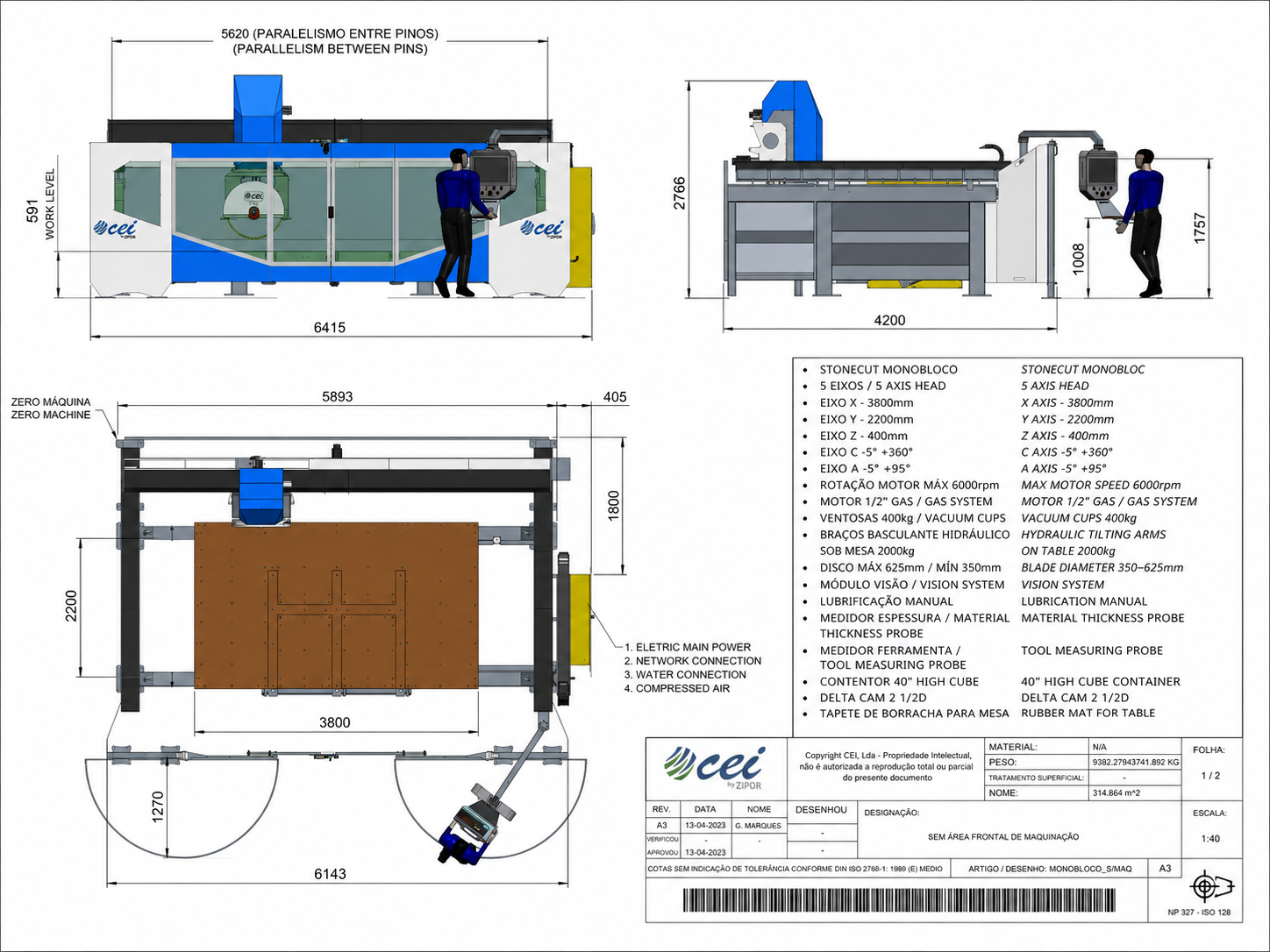

Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC monoblock machine: 5 axis
- Saw diameter: 350 to 625 mm
- Cutting area: 3800 × 2200 mm
- X / Y / Z axes: 3800 / 2200 / 400 mm
- C axis: -5º to +360º; A axis: -5º to +95º
- Maximum motor speed: 6000 rpm
- 1/2” gas system
- Vision system
- Material thickness and tool measuring probes
- Vacuum cups for piece movement: 400 kg
- Hydraulic tilting arms on table: 2000 kg
- Manual lubrication
- Delta Cam 2 1/2D
- Rubber mat for table
Options and connectivity
- Electric main power connection
- Network connection
- Water connection
- Compressed air connection
- Factory and machine zero reference
- Prepared for 40” High Cube container transport
- Cutting, drilling, milling and engraving operations
- Configured for ornamental and engineered stone
Gallery
Machine details and applications

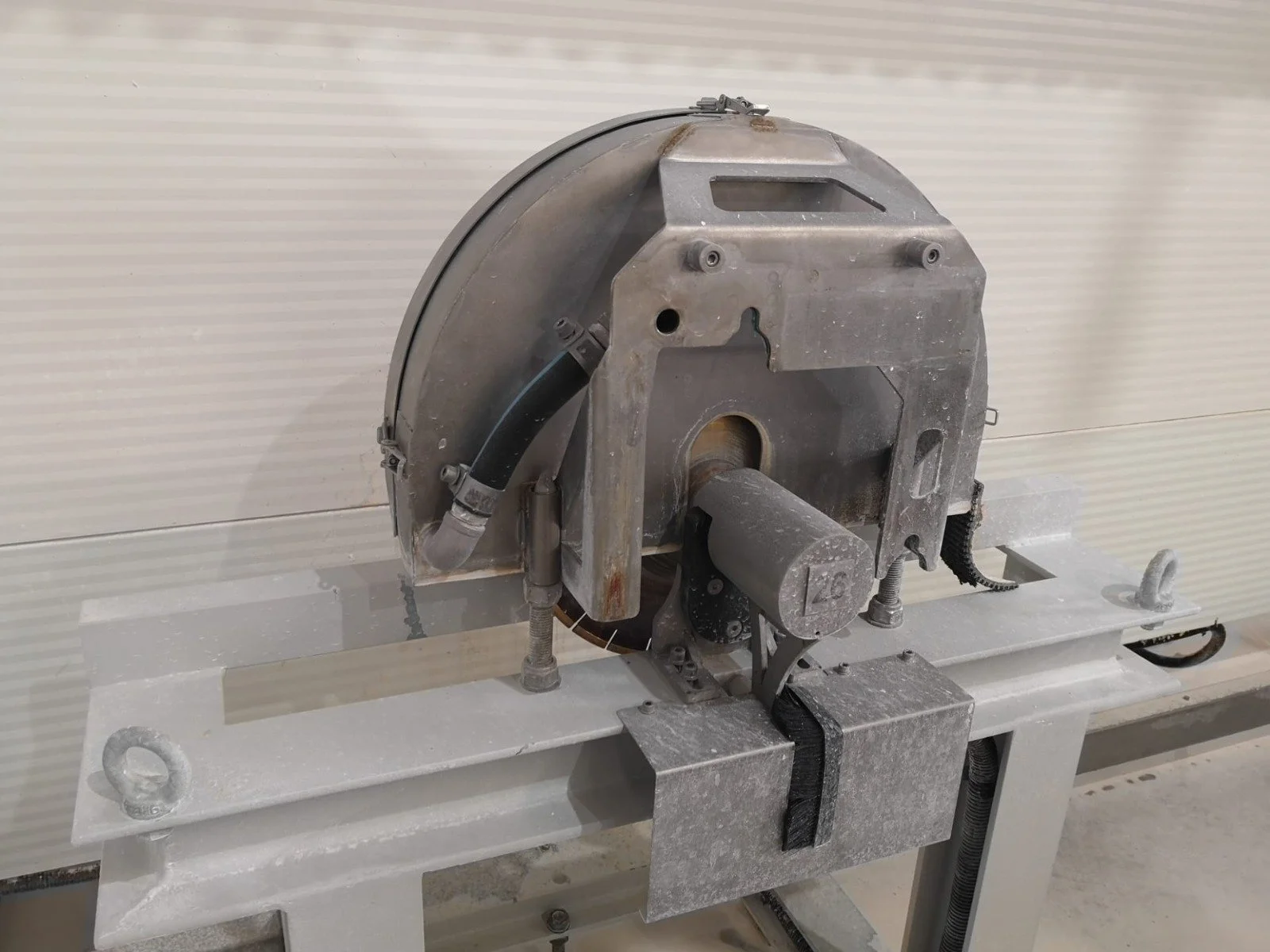

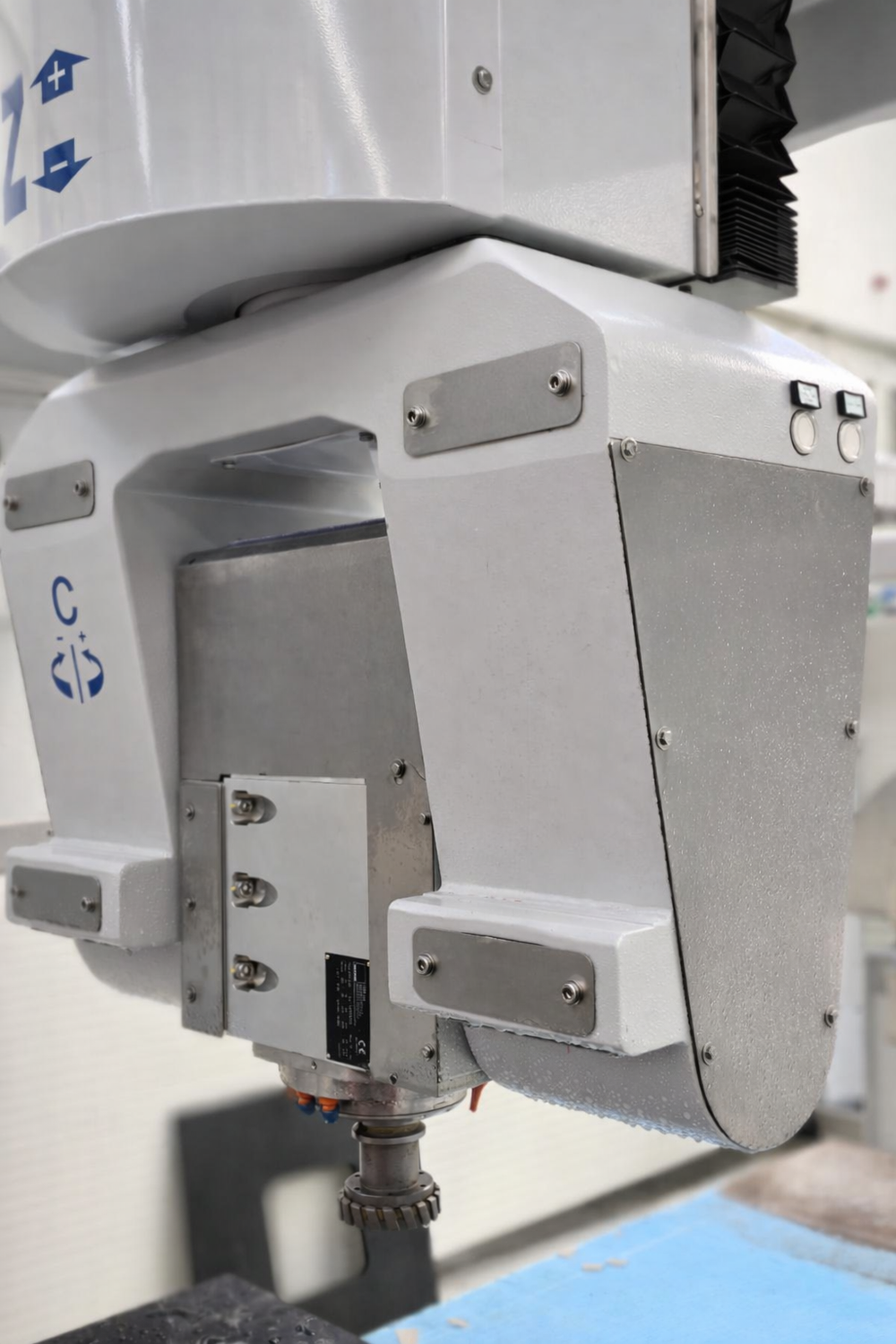

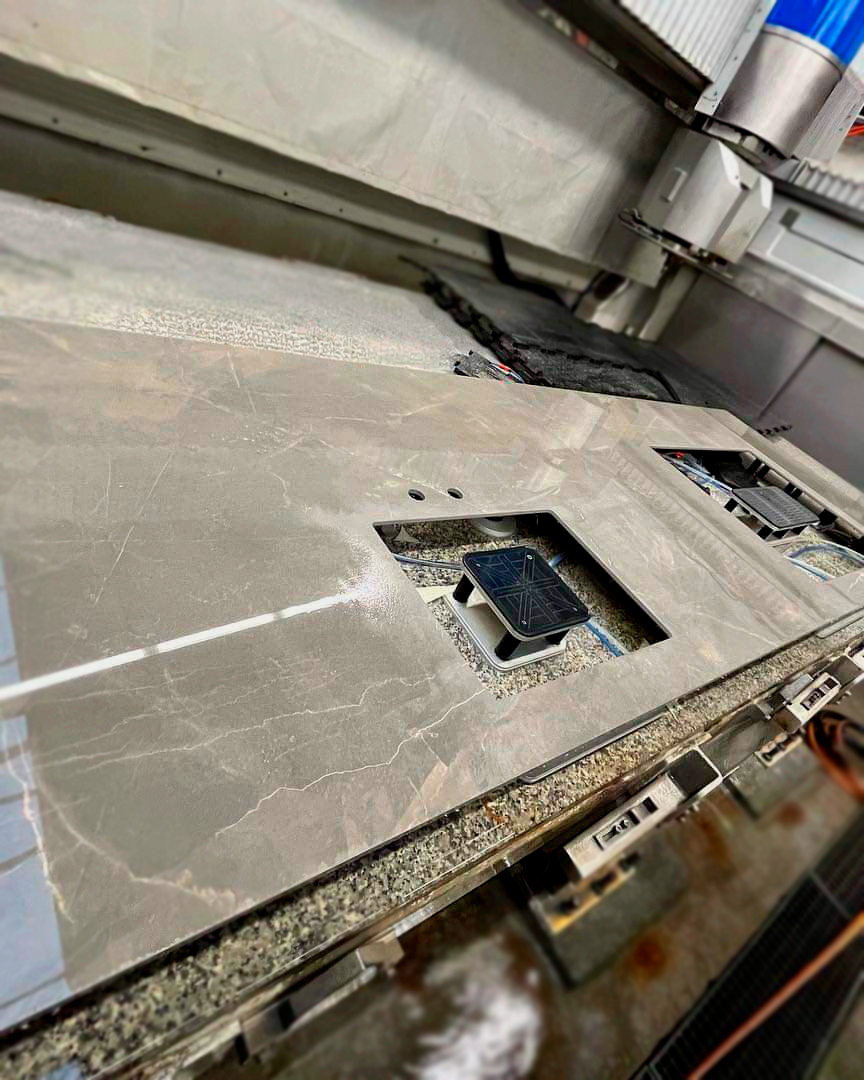

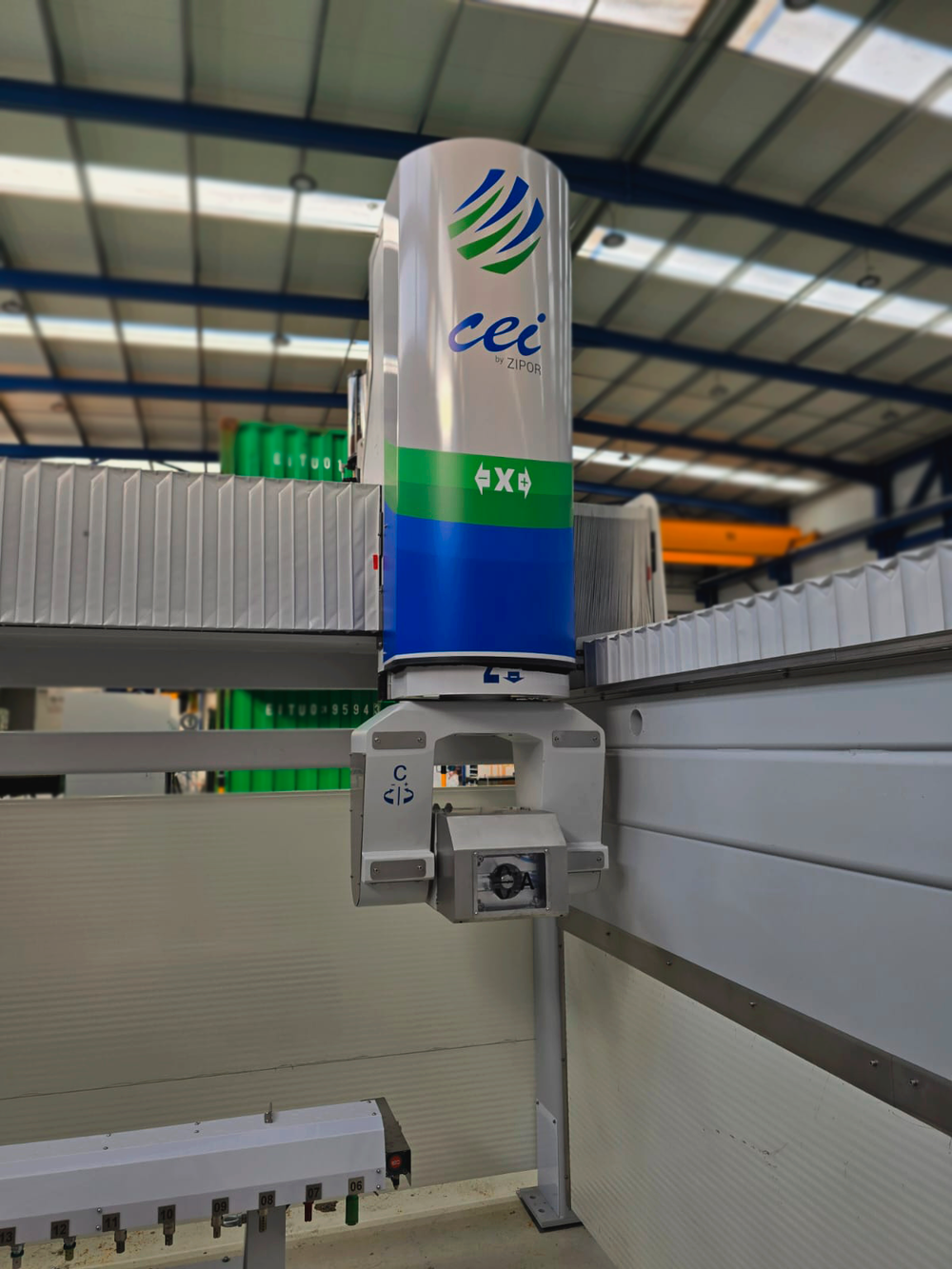

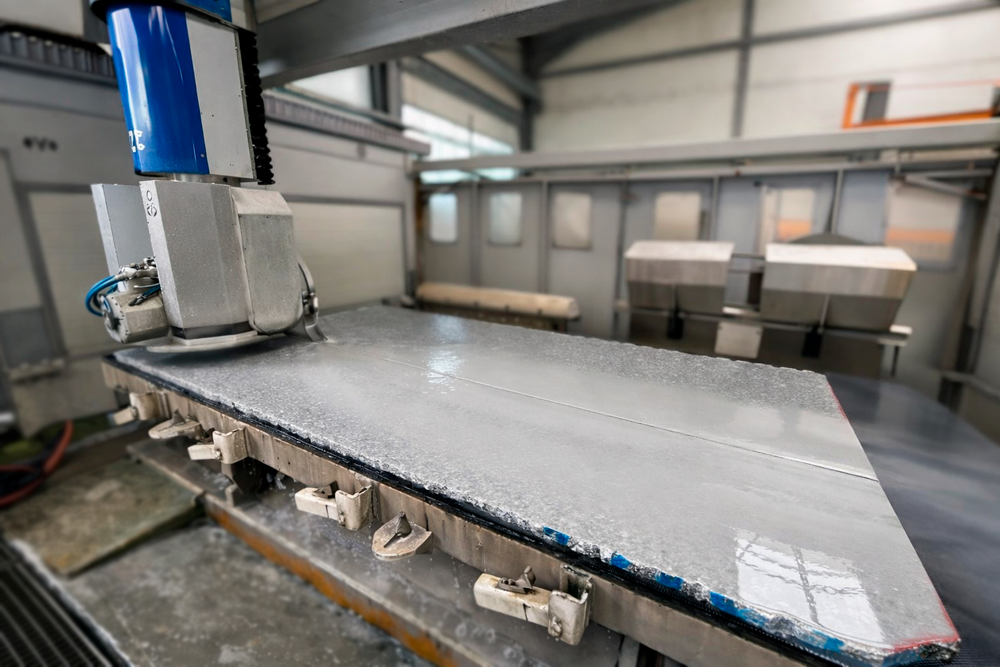

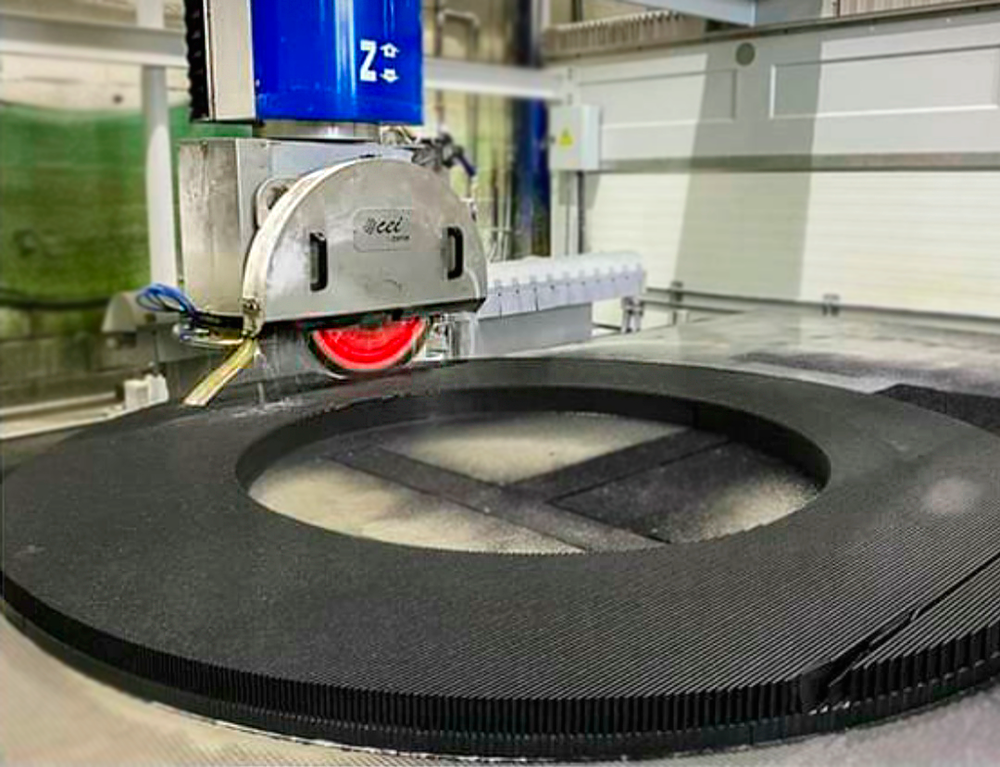

A selection of StoneCUT Mill machine details and applications.
Need more information about StoneCUT Mill?
Contact CEI to discuss technical requirements, configuration options and the most suitable StoneCUT Mill solution for your production needs.
