StoneCUT®
Full CNC monoblock 5-axis cut-to-size machine for ornamental and engineered stone, designed for tilted cuts from 0º to 90º, drilling, milling and engraving, with artificial vision and Industry 4.0 connectivity.
Layout

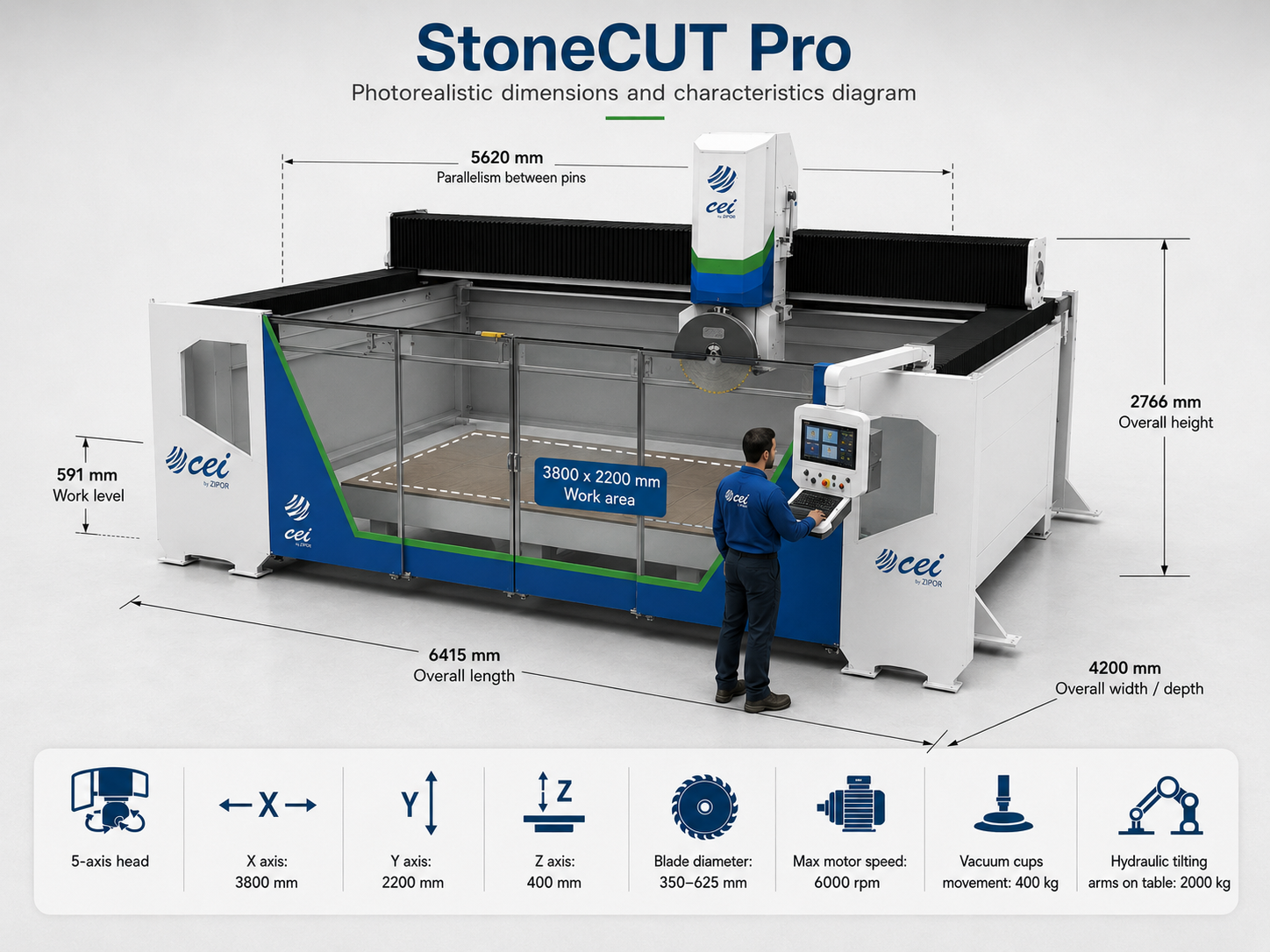

Dimensions and working area

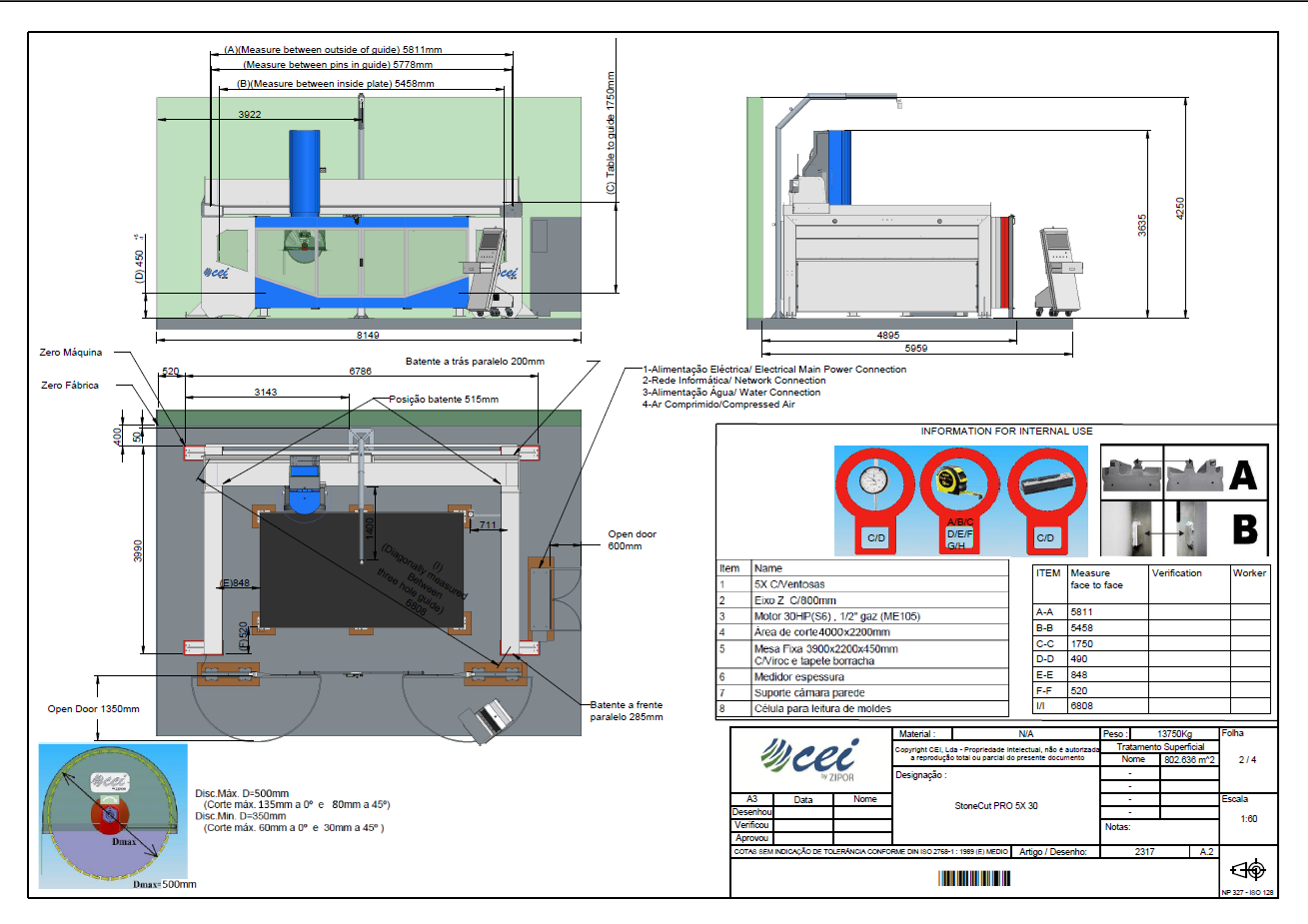

Technical layout with the main StoneCUT dimensions, working area and operator scale reference.
Equipment features
- Full CNC cut-to-size machine: 5 axis
- Saw diameter: 350 to 625 mm
- Useful cutting area options: 3800 × 2200 / 4100 × 2500 mm
- Monoblock steel structure
- Vertical Z axis: 400 mm
- Maximum speed: 60 m/min
- Motor power: 23 / 27 HP
- Vision system for detection and positioning

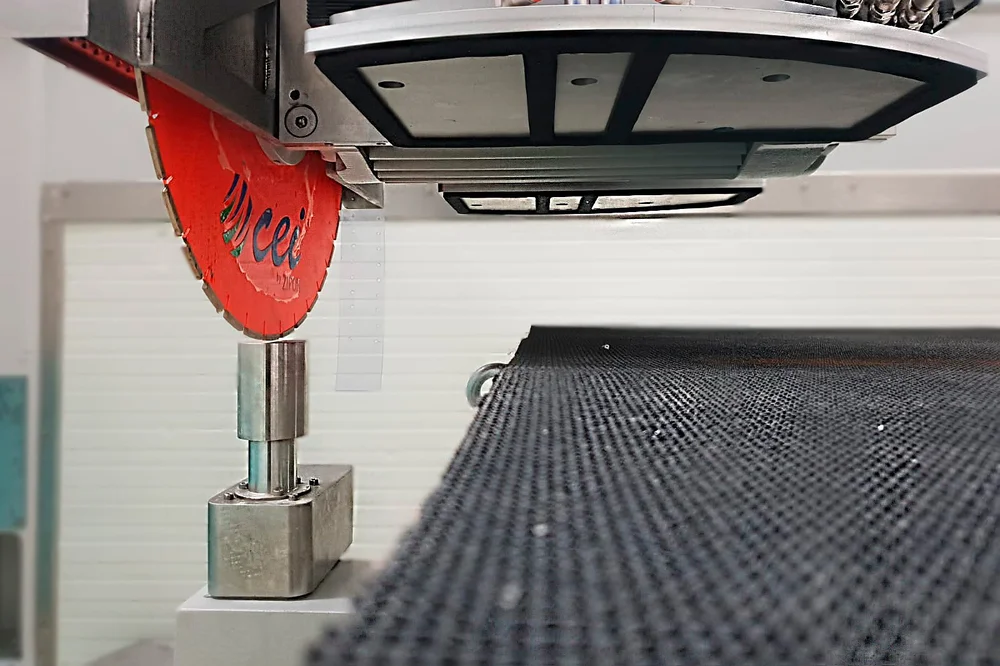

- Tool and slab thickness measuring probe
- Absolute encoders
- Magnetic drill tool change: 4 to 7
- Vacuum manipulators: 400 kg
- ½” gas milling system
- Centralized / assisted lubrication

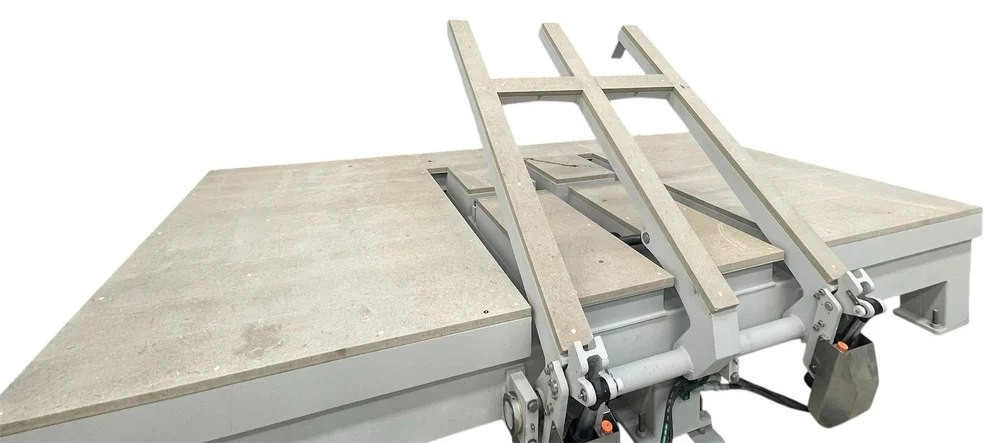

- Tilting system for easy loading
- Software for cutting, drilling, milling and engraving
Options and connectivity
- Industry 4.0 concept: direct connection to office, smartphone or tablet
- Online technical support
- Front area for machining: 0.5 to 1.0 m
- Zero point on workbench
- Laser for manual cutting mode
- Additional high-rotation drilling motor
- Automatic saw sharpening system
- Specific software for profiles, frames and parametric figures
Gallery

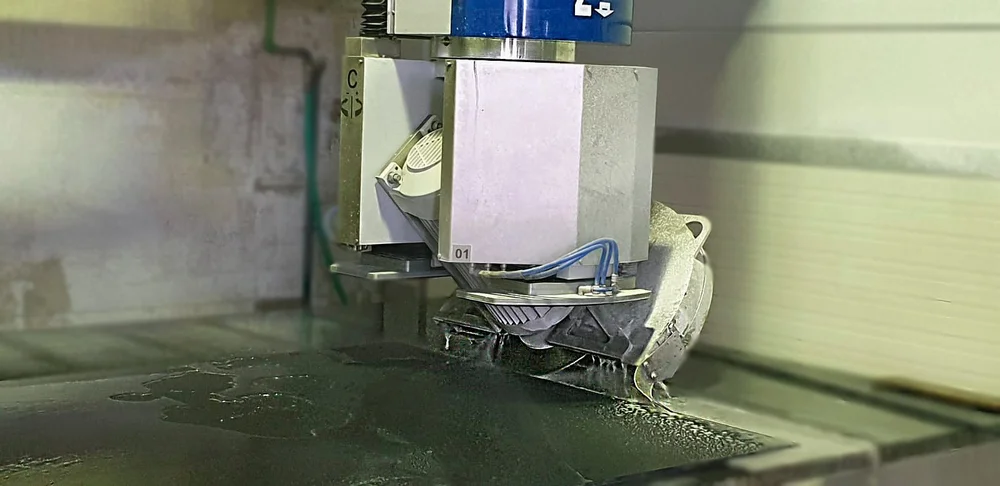

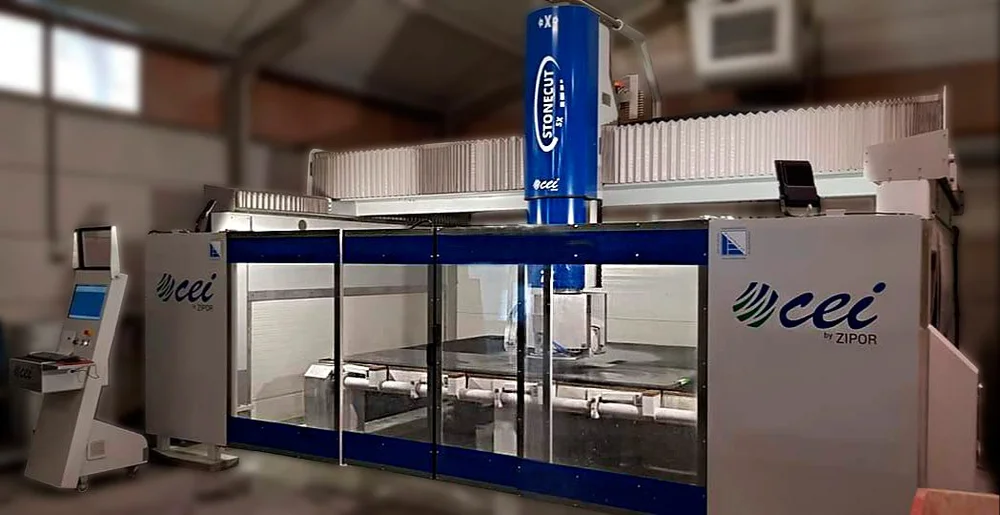

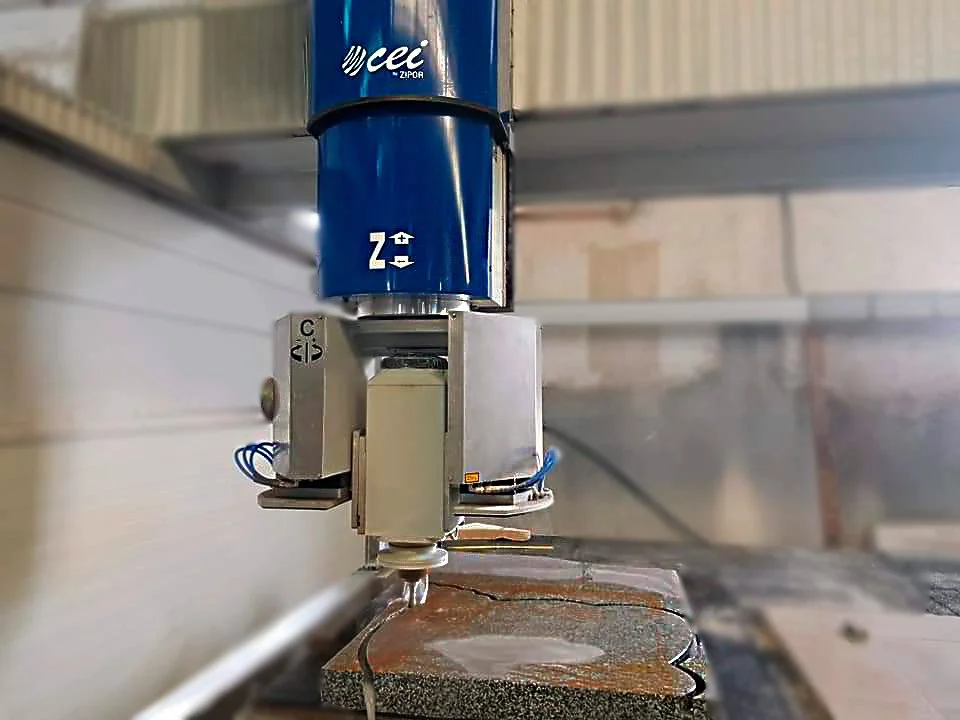

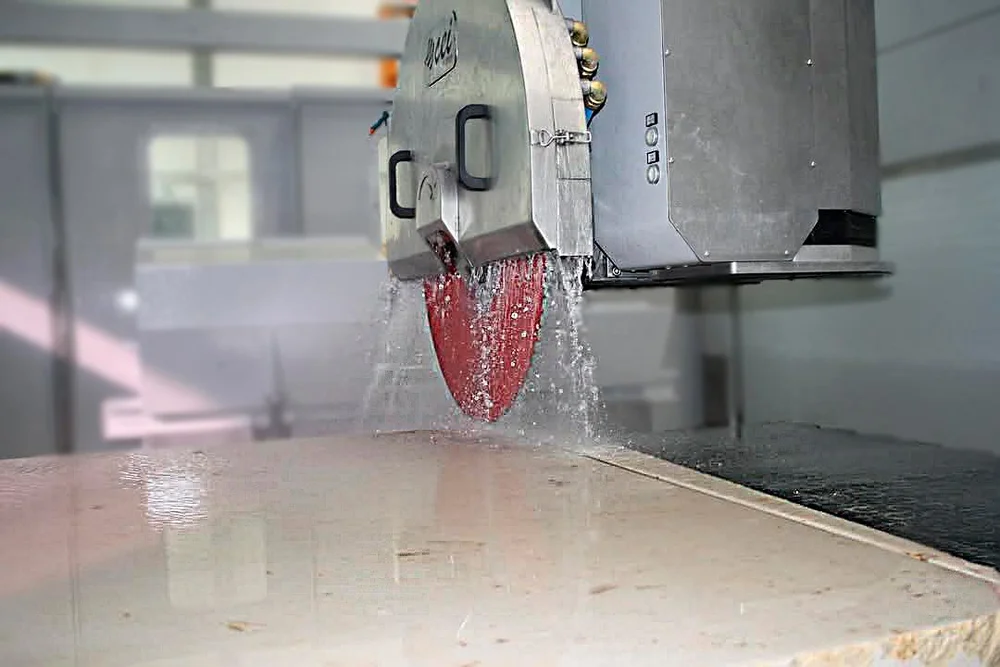

Machine details and applications
A selection of images from the StoneCUT page.
Need more information about StoneCUT Pro?
Contact CEI to discuss technical requirements, configuration options and the most suitable solution for your production needs.
