StoneMILL
Complete CNC milling centre for ornamental and engineered stone, with a 3200 × 2000 / 4000 × 2200 mm working table, 3 or 4 interpolated axes and an automatic 12 to 48-position tool magazine for drilling, milling, engraving and polishing operations.
Layout
Dimensions and working area

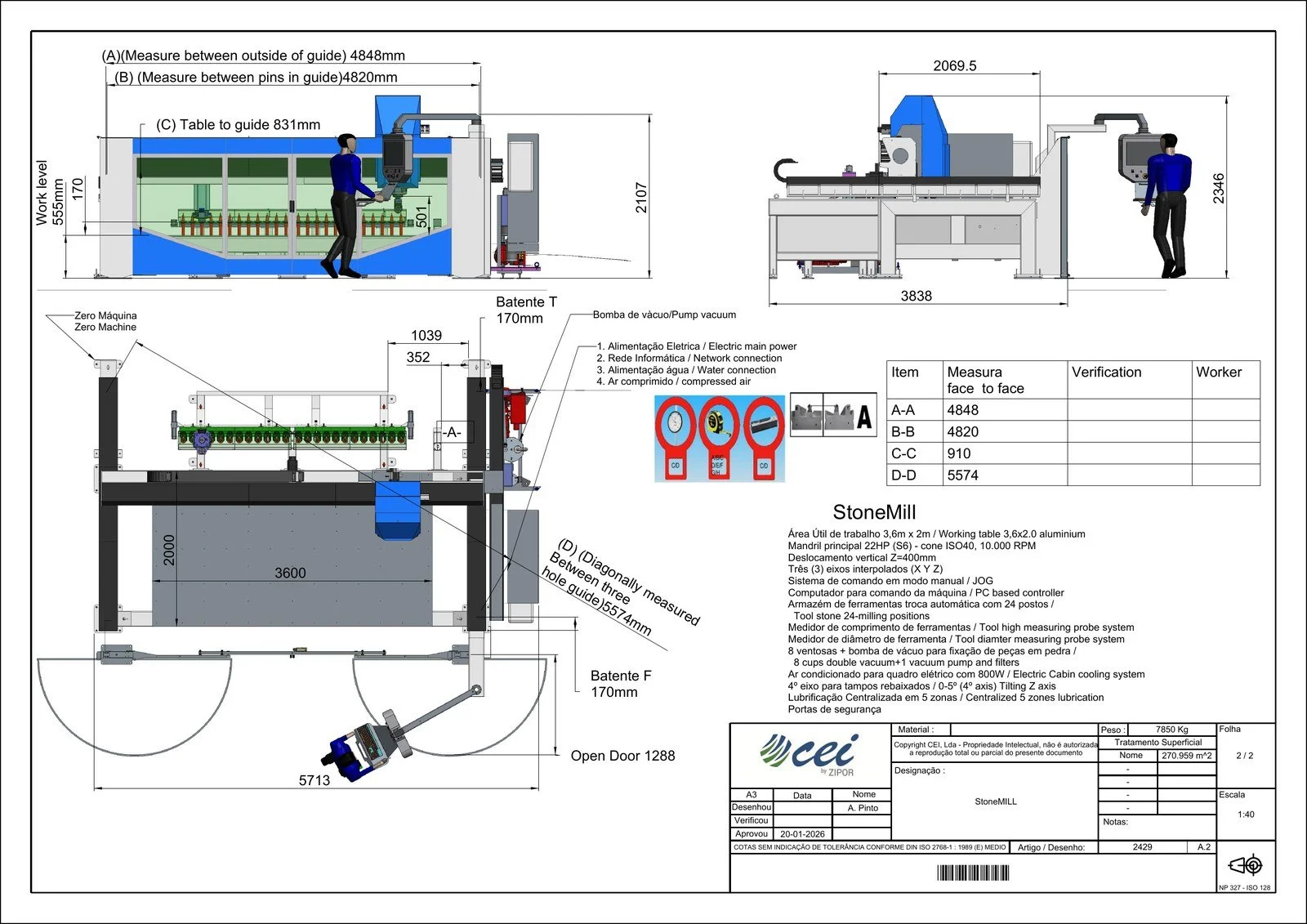

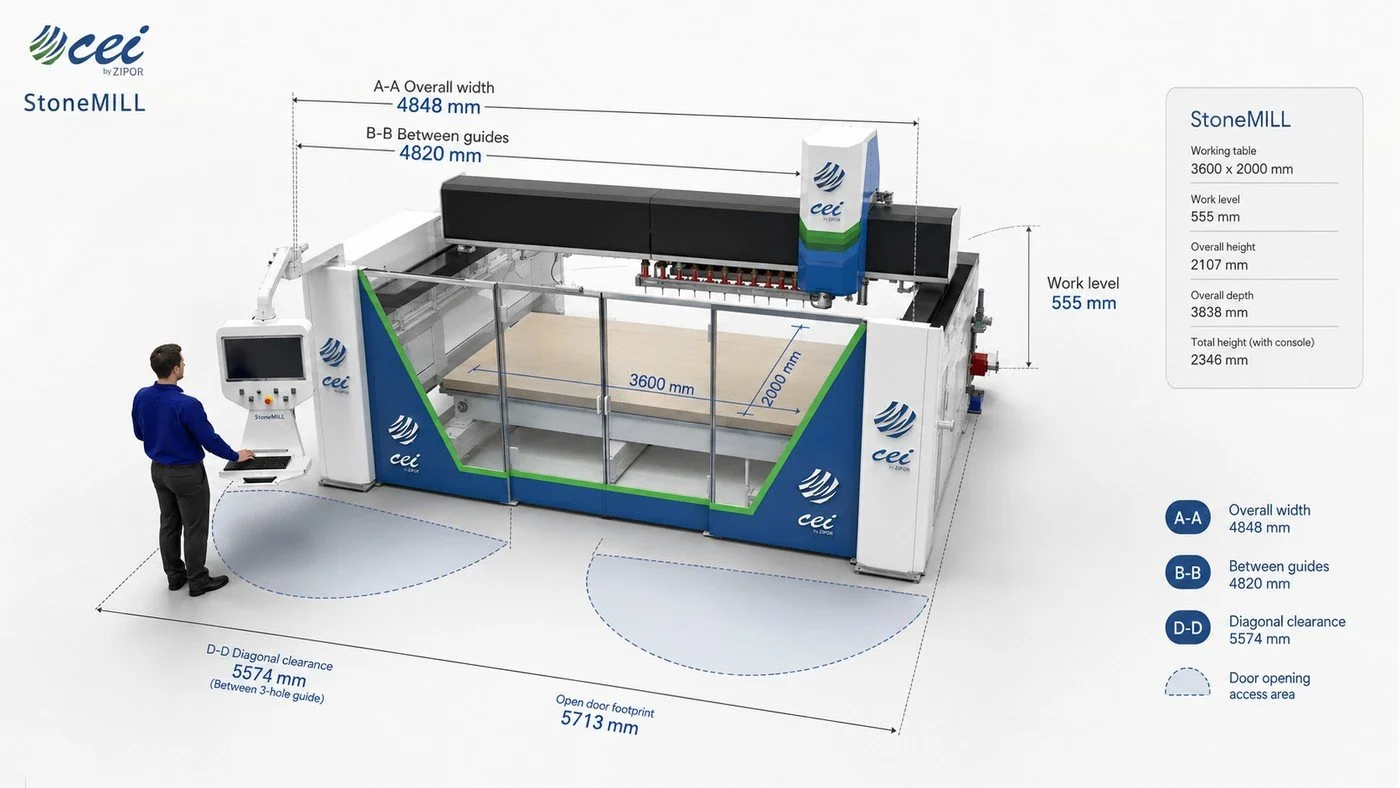

Main machine view and technical layout with the main StoneMILL dimensions, working area and operator scale reference.
Equipment features
- Working table: 3200 × 2000 / 4000 × 2200 mm aluminium or stone surface
- Main spindle: 20 HP, BT40 cone, 10,000 RPM
- Three interpolated axes: X, Y and Z
- Manual / JOG operation mode
- PC-based machine controller
- Automatic 24-position tool magazine
- Tool height measuring probe system
- Tool diameter measuring probe system

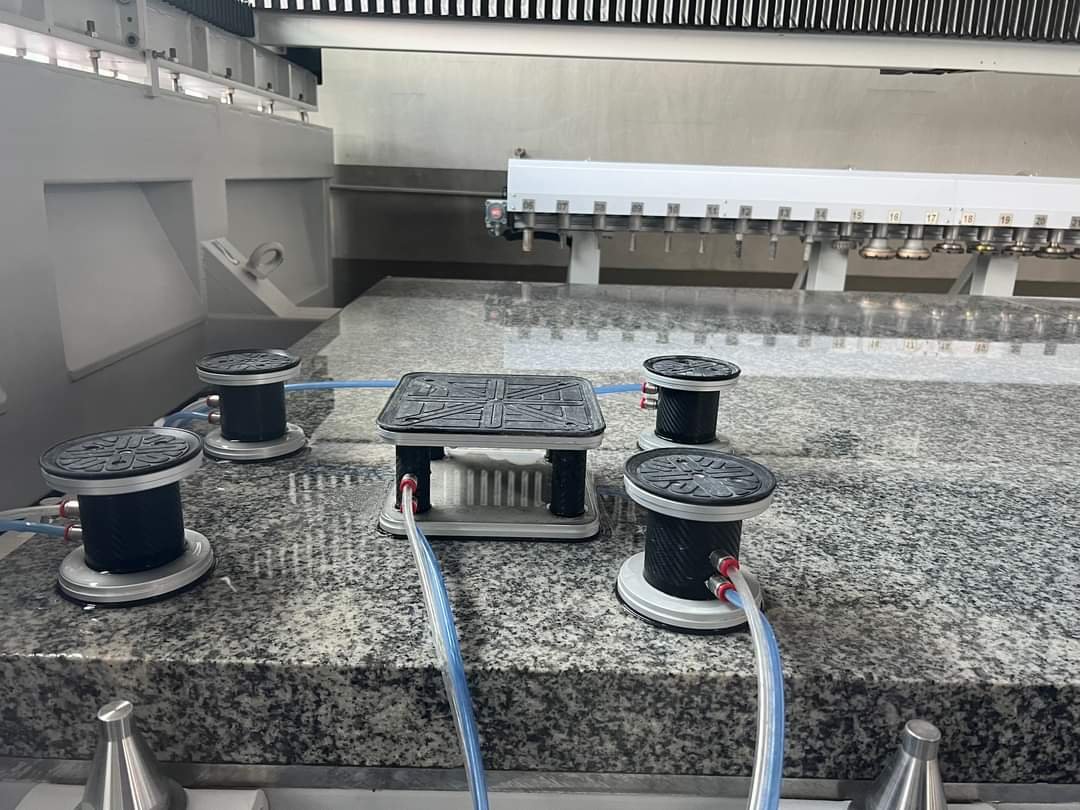

- 8 double vacuum cups, vacuum pump and filters
- Electrical cabinet cooling system: 800 W
- Centralized lubrication in 5 zones
- Safety doors
Options and connectivity
- 4th tilting Z axis: 0º to 5º
- Automatic tool change with 24 positions
- Tool height and diameter measuring systems
- Vacuum workholding system for stone pieces
- Network connection and PC-based control
- Centralized lubrication in 5 zones
- Electrical cabinet cooling system
Video
StoneMILL in operation
Watch StoneMILL in a dedicated CEI video.
Gallery
Machine details and applications

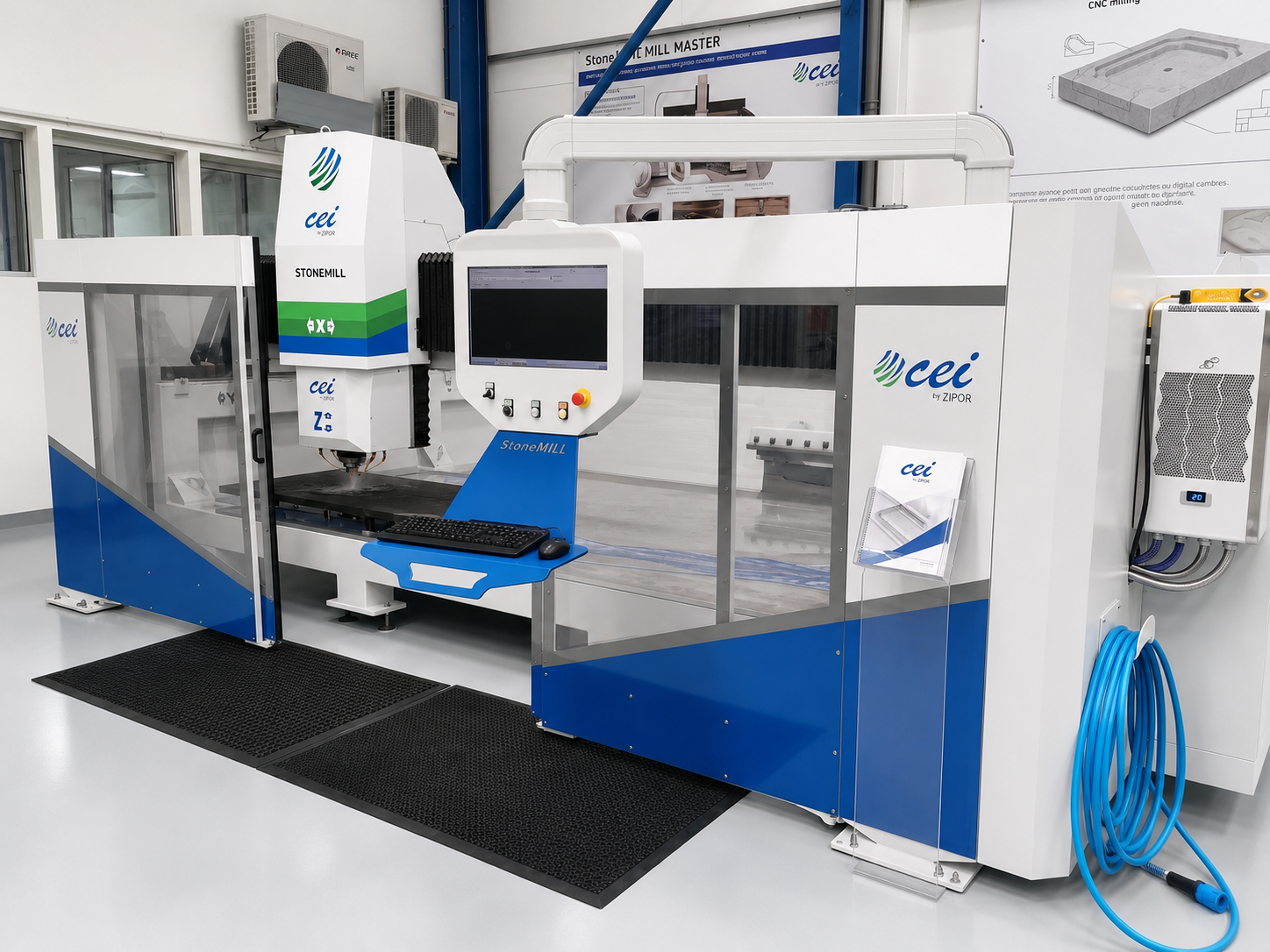

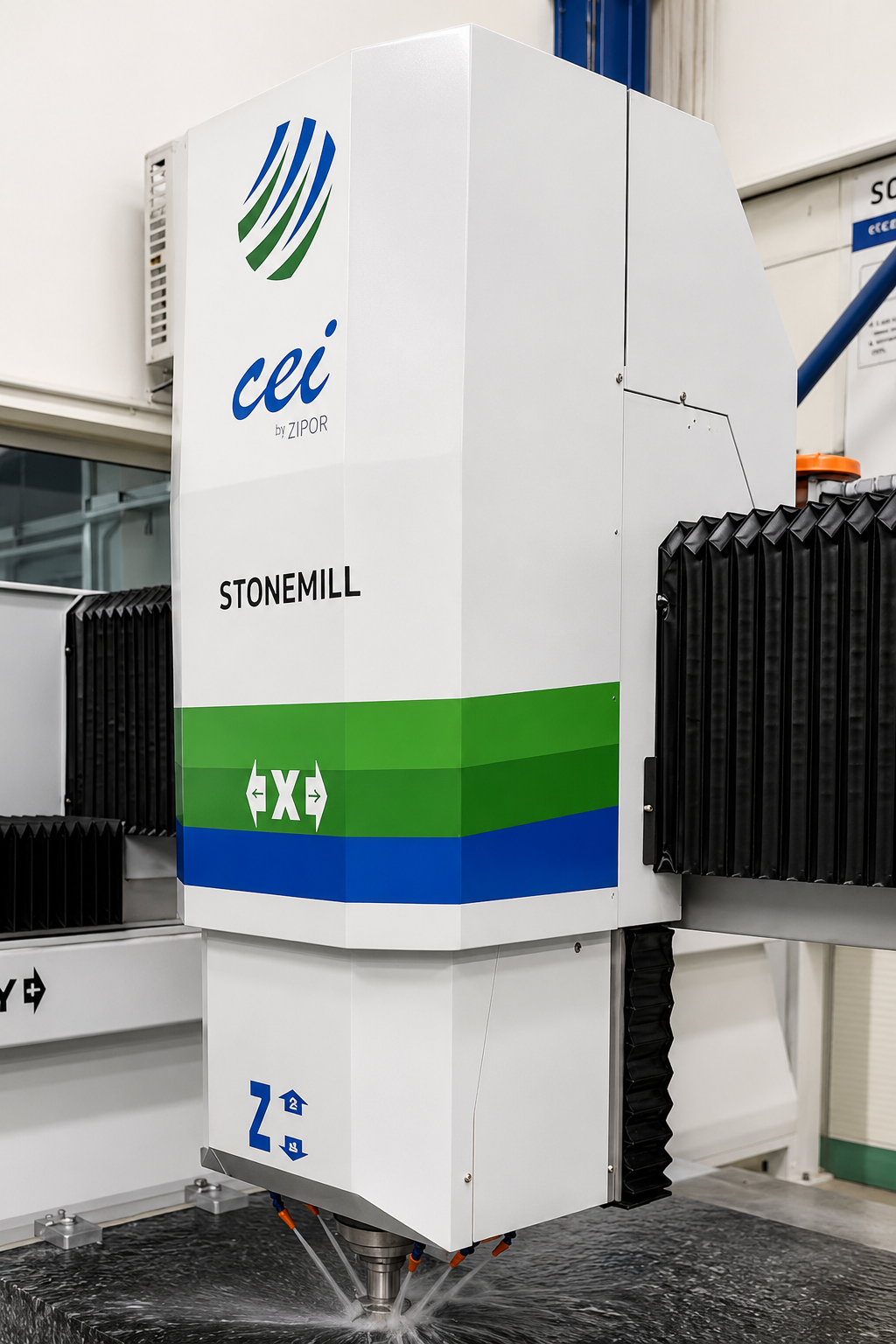

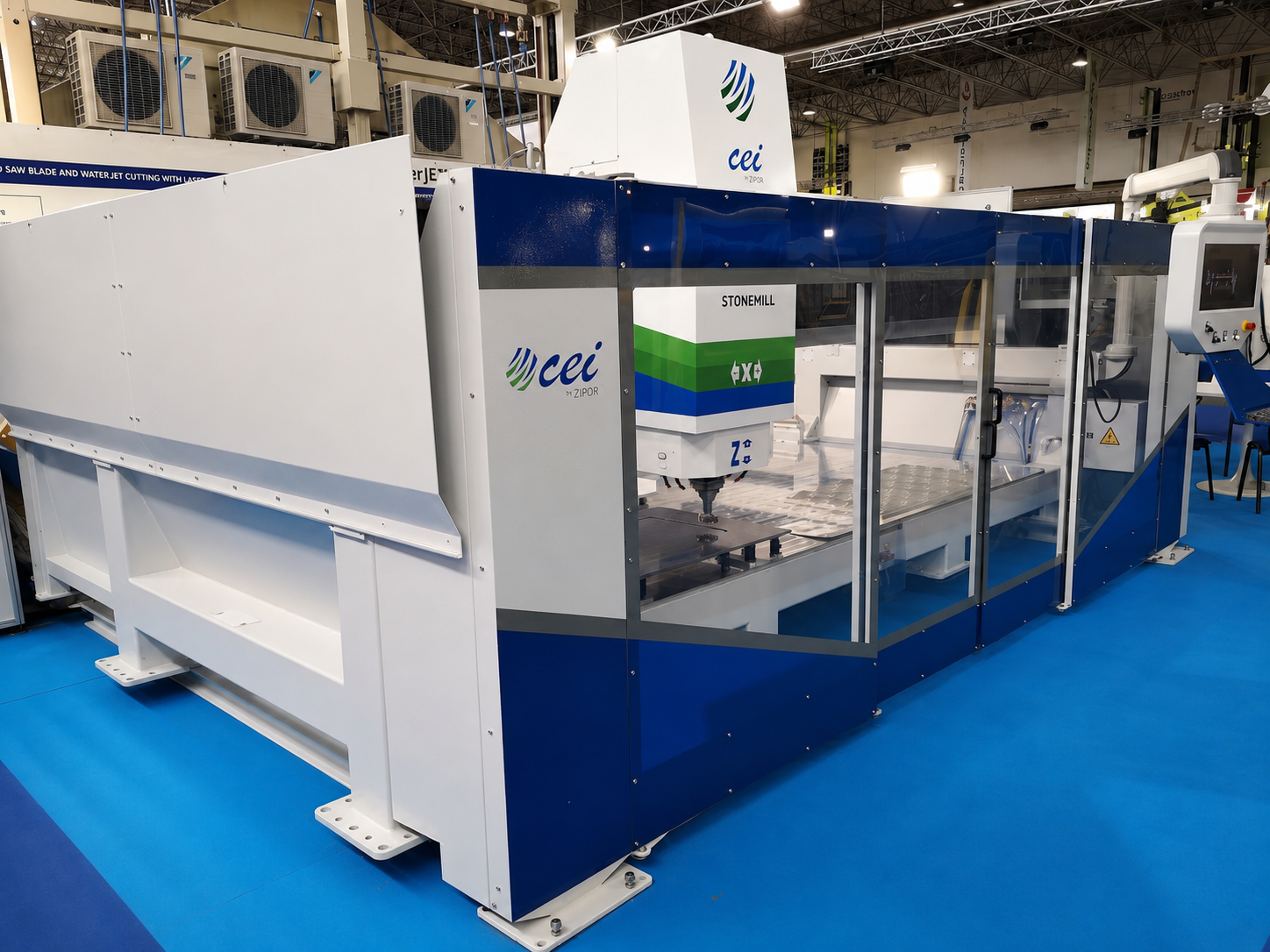

A selection of StoneMILL details and finished applications.
Need more information about StoneMILL?
Contact CEI to discuss technical requirements, configuration options and the most suitable solution for your production needs.
