Stone SURFACE LINE
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC surface-processing line for softening, polishing, brushing, calibrating, scratching and flaming
- Working area: 3800 × 2000 mm
- Conveyor workbench: 6500 × 2000 mm
- Slabs up to 300 mm thickness
- Polishing motor: 20 HP with inverter
- Electric Z axis: 500 mm
- Pneumatic Z axis: 150 mm
- Automatic tool changer: 10 tools
- Thickness gauge and tool-measuring system
- Vision-system camera support
- Water-tube washing system

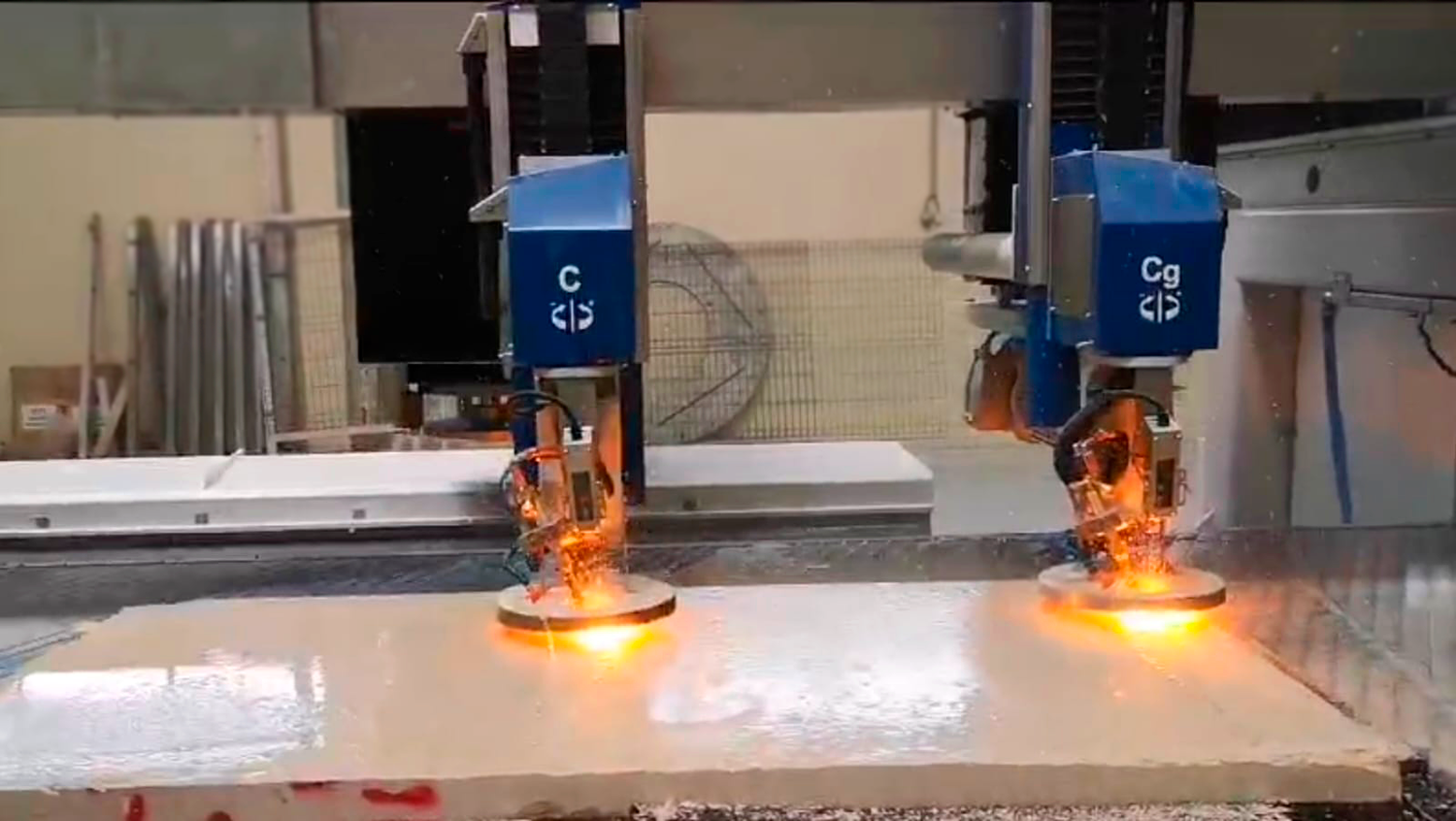

- Flaming unit
- Assisted lubrication with pump
- Maximum speed: 50 m/min
- Absolute encoders and centralized / assisted lubrication
Options and connectivity

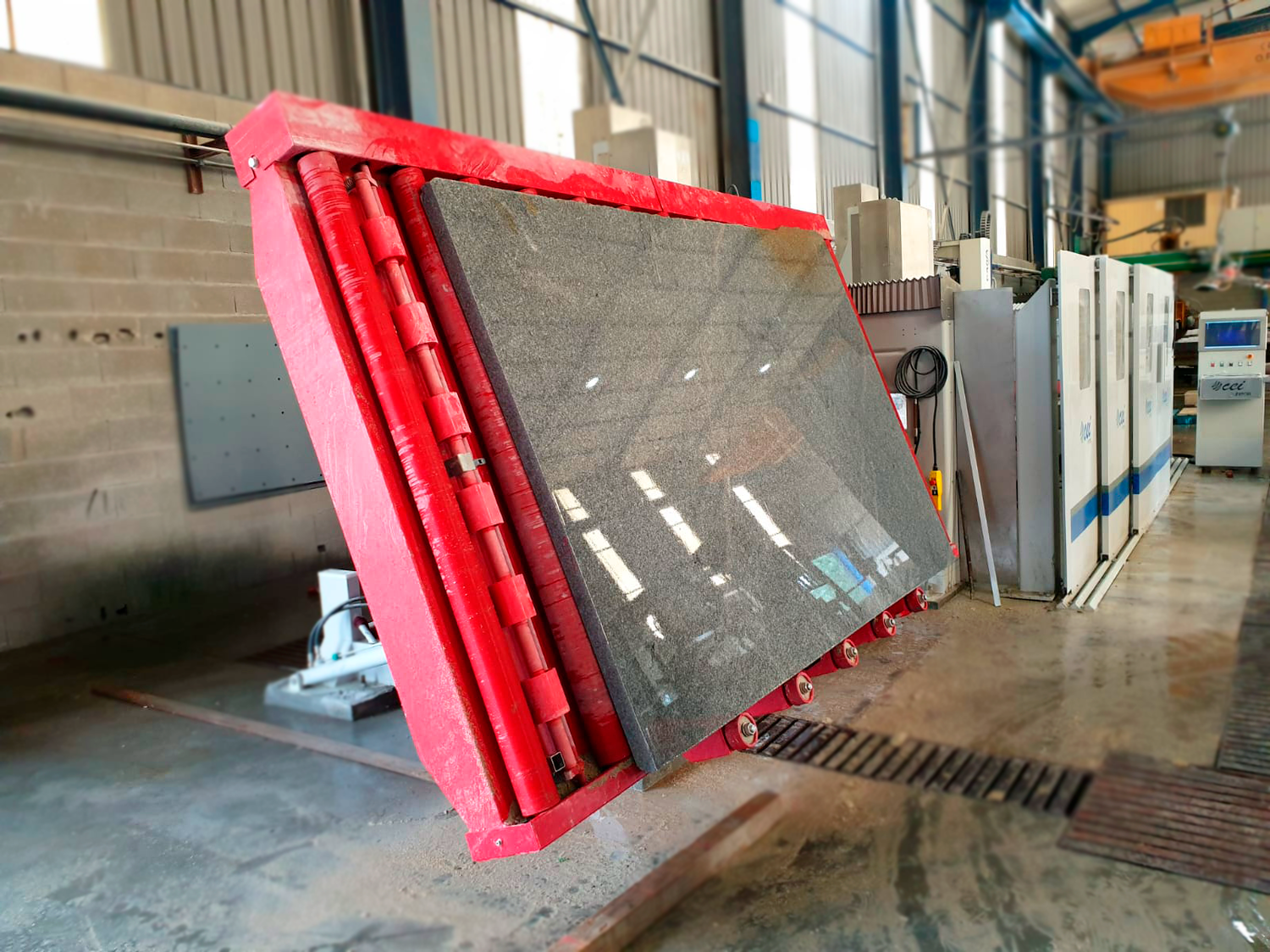

- Tilting table for loading slabs

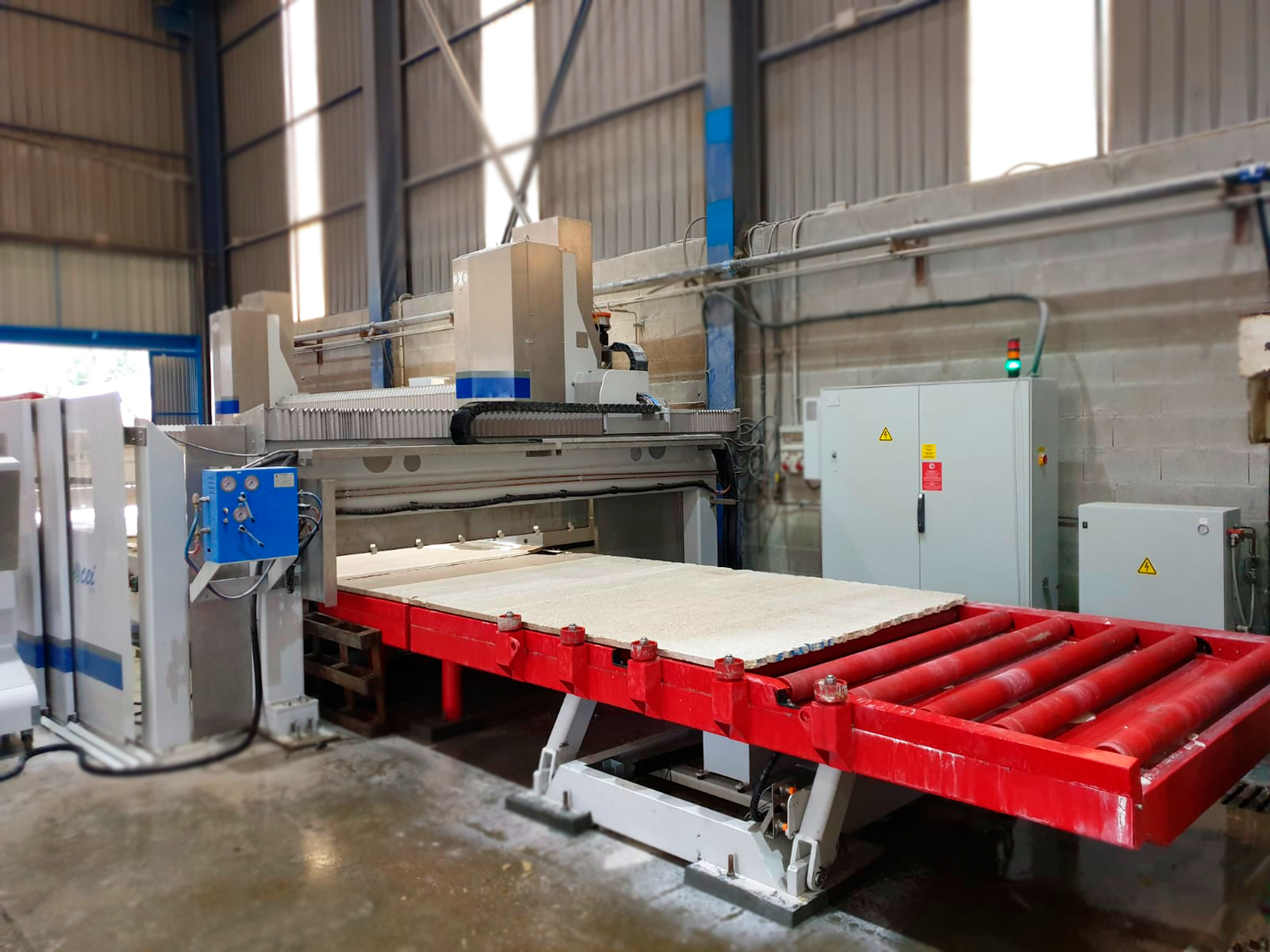

- Conveyor belt for simultaneous loading and unloading of parts
- Robotized loading and unloading system
- Tool-measuring and slab-thickness measuring probe
- Real-time tool-pressure control
- Tool storage for automatic exchange: up to 10 positions
- Flaming heads: up to 2
- Electrical main power connection
- Network connection
- Water connection
- Compressed air connection
- Oxygen and propane-gas connections for flaming
Video
StoneSURFACE LINE in operation
Watch StoneSURFACE LINE in a dedicated CEI video.
Gallery
Machine details and applications

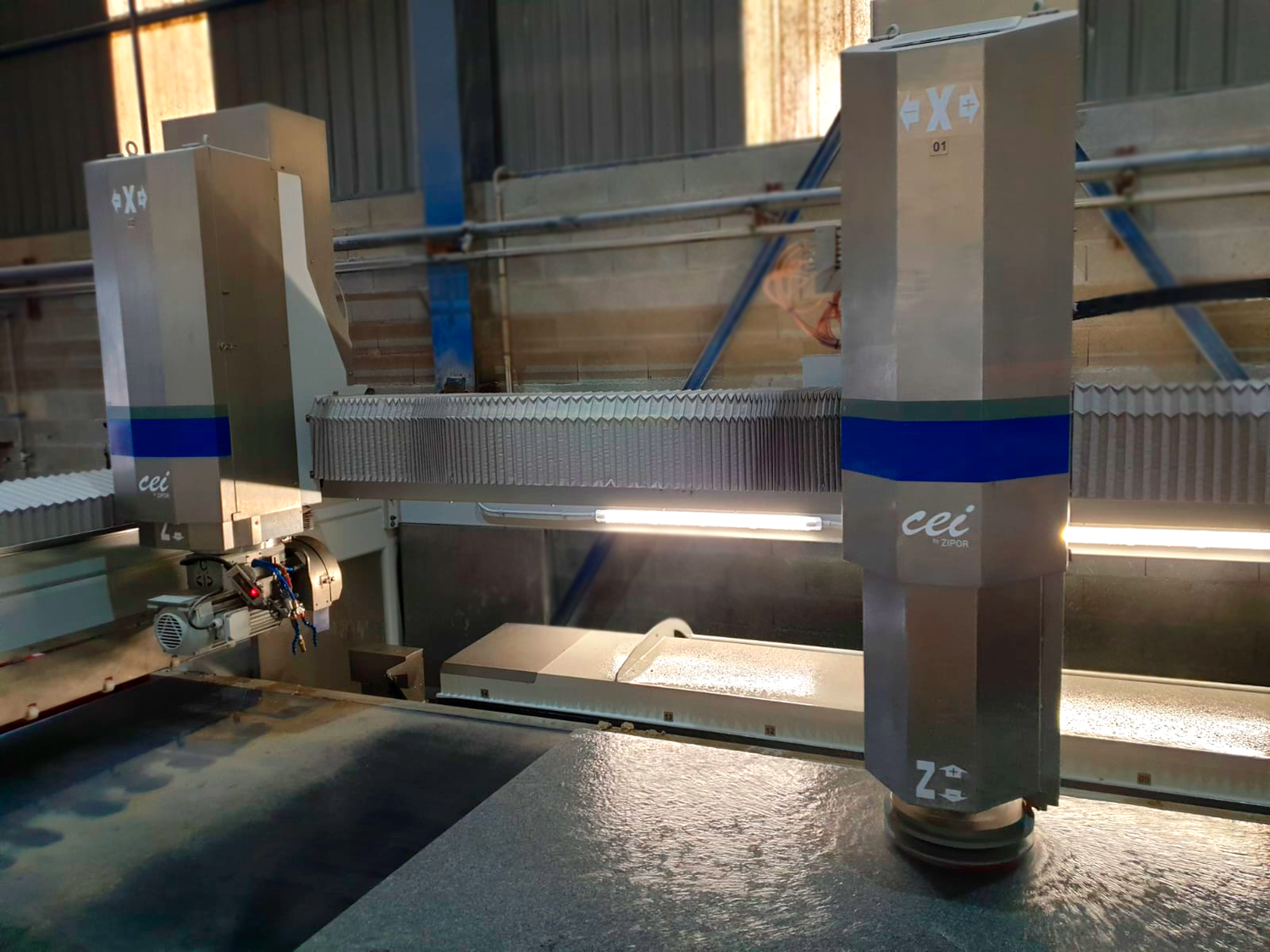

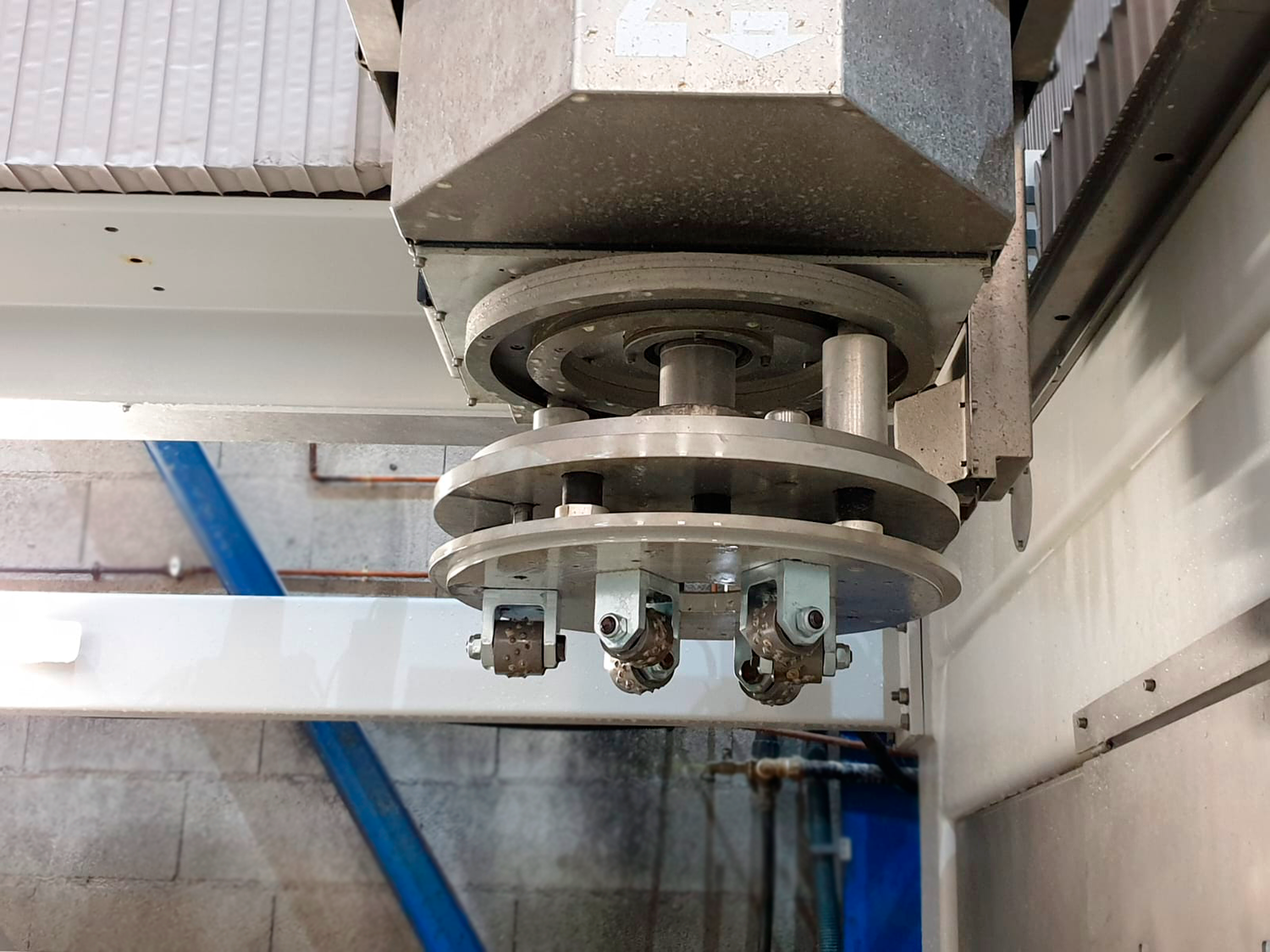

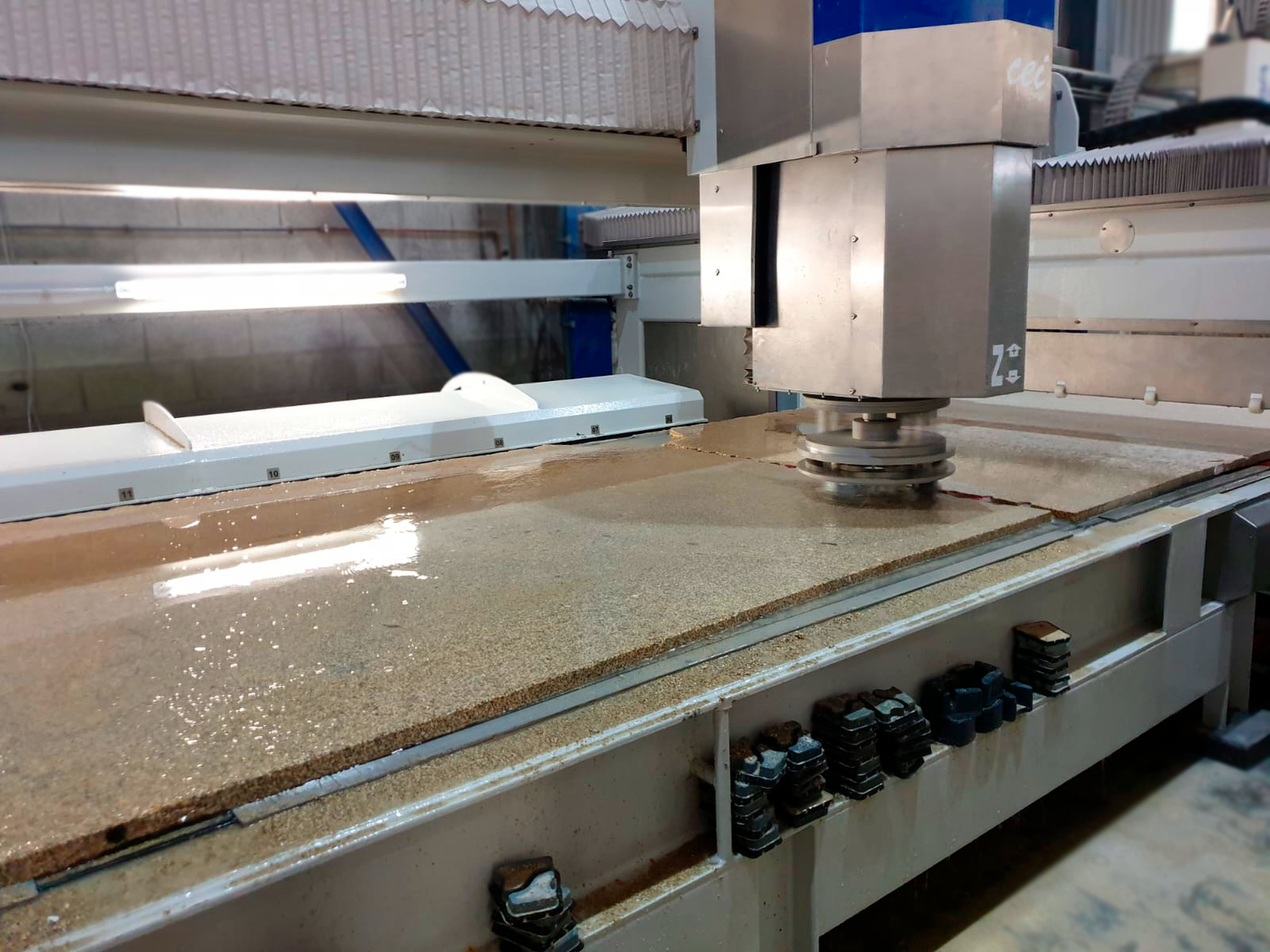

A selection of StoneSURFACE LINE automatic-line details and applications.
