Stone SURFACE
High-capacity CNC cutting machine for thick ornamental and engineered stone, with artificial vision, large-diameter disc capability and a 5-axis configuration for demanding production.
Layout
Dimensions and working area
Main machine view and technical layout with the main StoneCUT Mill dimensions, working area and operator scale reference.
Equipment features
- Full CNC system for softening, polishing, brushing, calibrating, scratching and flaming
- Useful area: 4000 × 2000 / 4000 × 2200 mm
- Slabs up to 300 mm thickness
- Maximum polishing thickness: 200 mm
- Electric Z axis: 450 mm
- Pneumatic Z axis: 150 mm
- Vision system for detecting and positioning

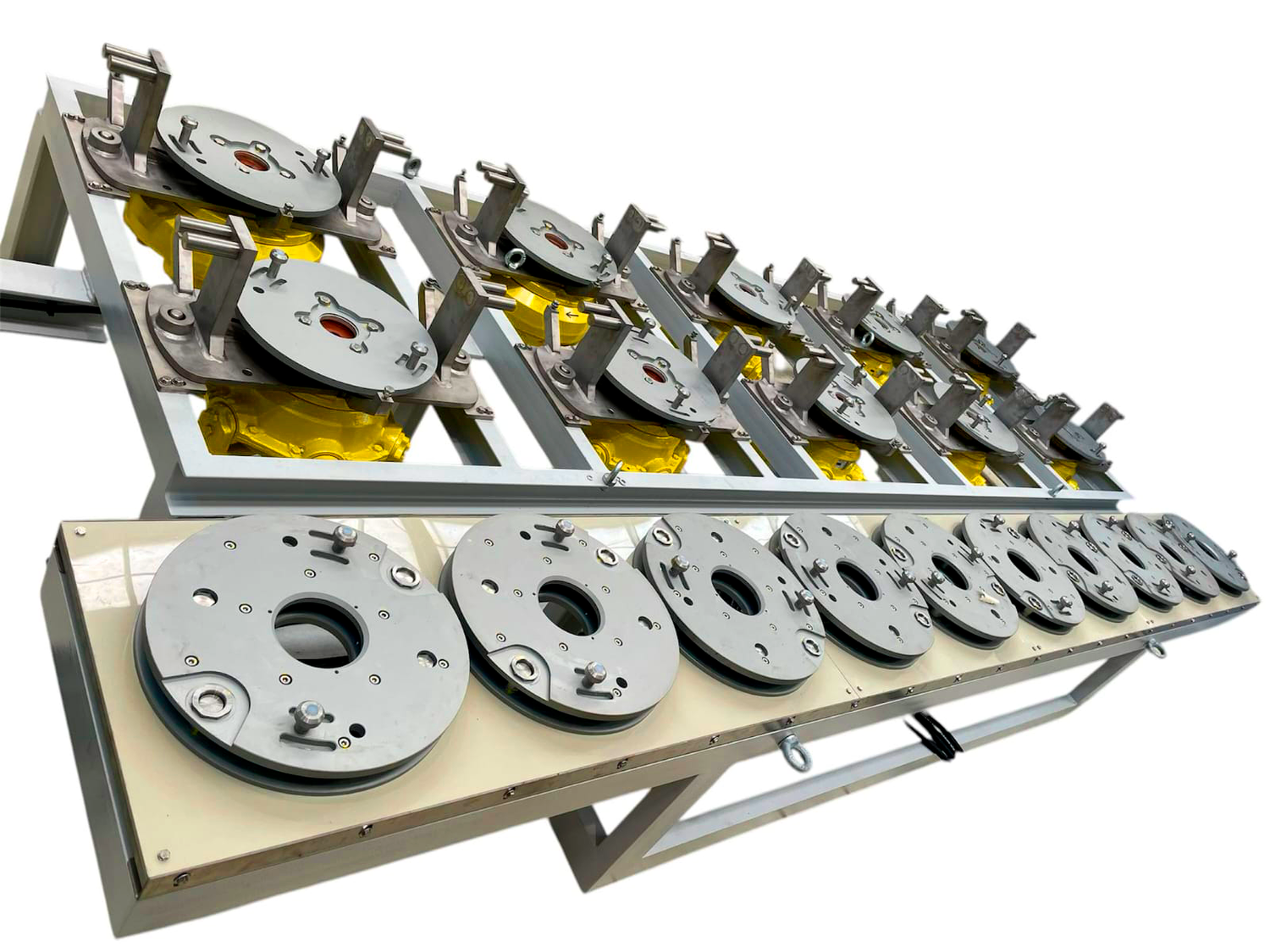

- Automatic tool changer with 9 positions
- Seven Ø425 mm discs for five Frankfurt polishing tools
- One Ø425 mm disc for five Frankfurt calibration tools
- Thickness gauge and Frankfurt gauge
- Sharpening stone
- Spindle power: 20 HP
- Maximum speed: 50 m/min
- Absolute encoders and centralized / assisted lubrication
Options and connectivity
- Tool-measuring and slab-thickness measuring probe
- Real-time tool-pressure control
- Tool storage for automatic exchange: up to 9 positions
- Flaming heads: up to 2
- Fixed or tilting workbench
- Multiple-workbench configuration
- Line version upgrade
- Electrical main power connection
- Network connection
- Water connection
- Compressed air connection
- Industry 4.0 direct connection to office, smartphone or tablet
Video
StoneSURFACE in operation
Watch StoneSURFACE in a dedicated CEI video.
Gallery

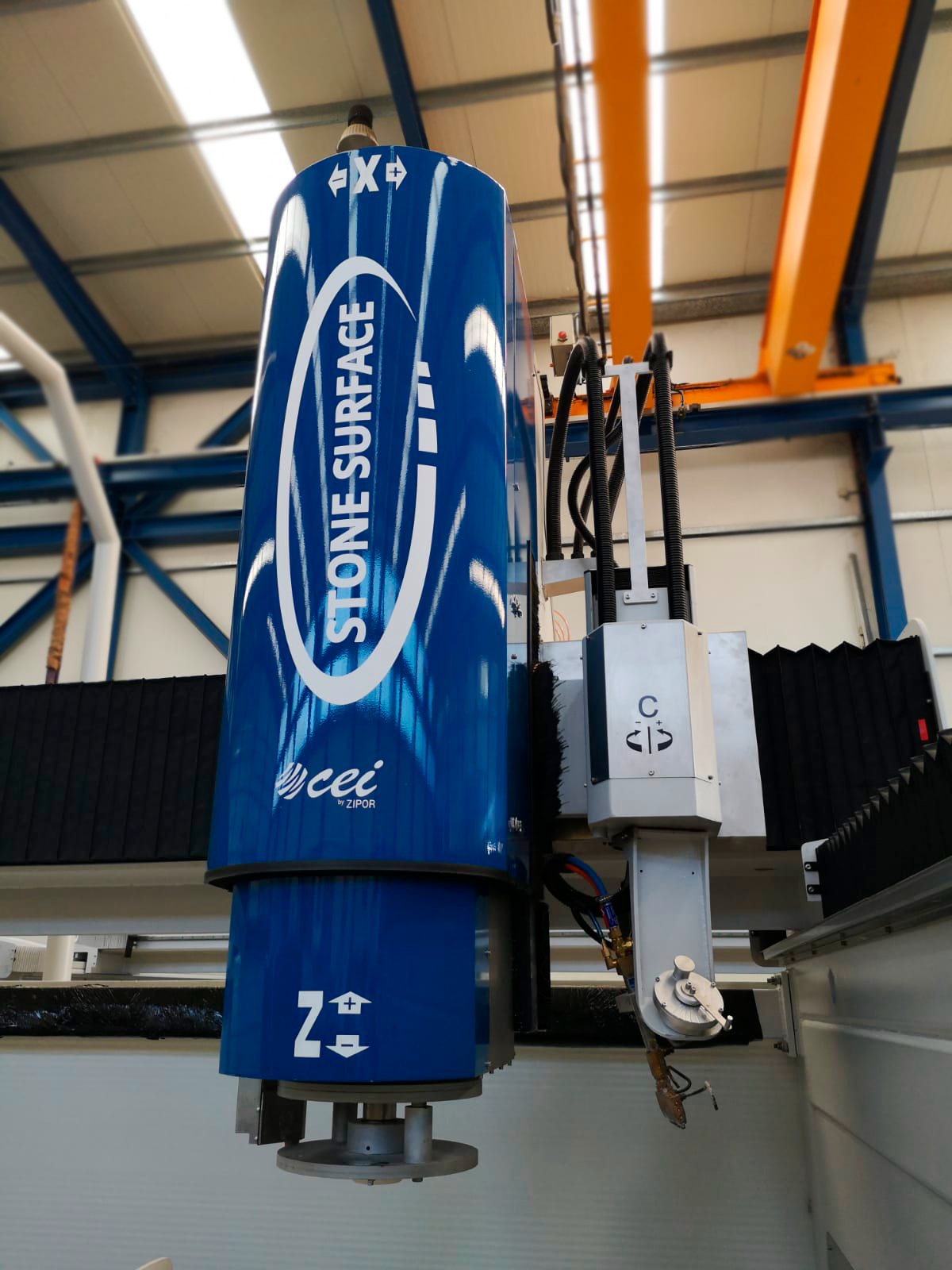

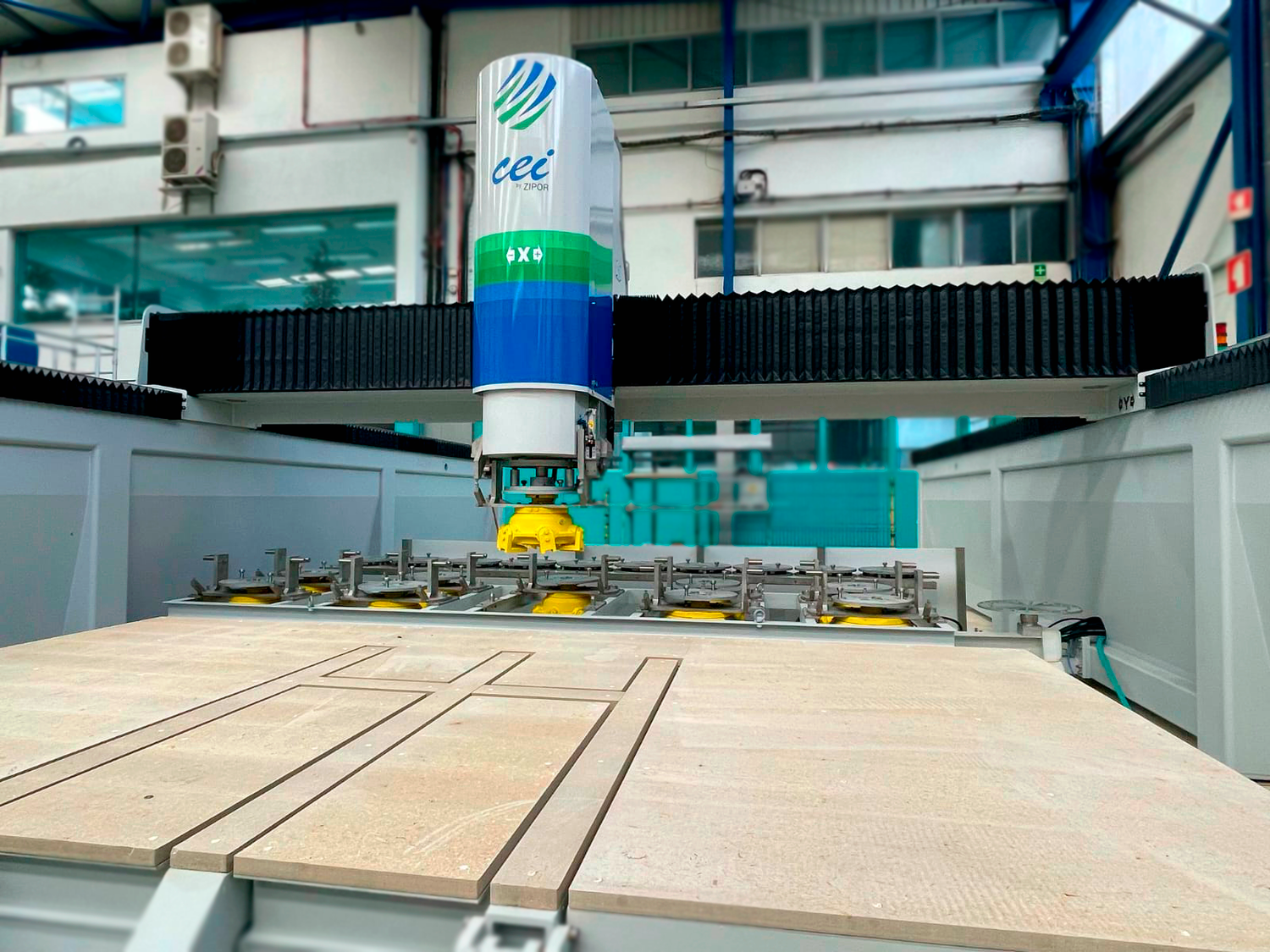

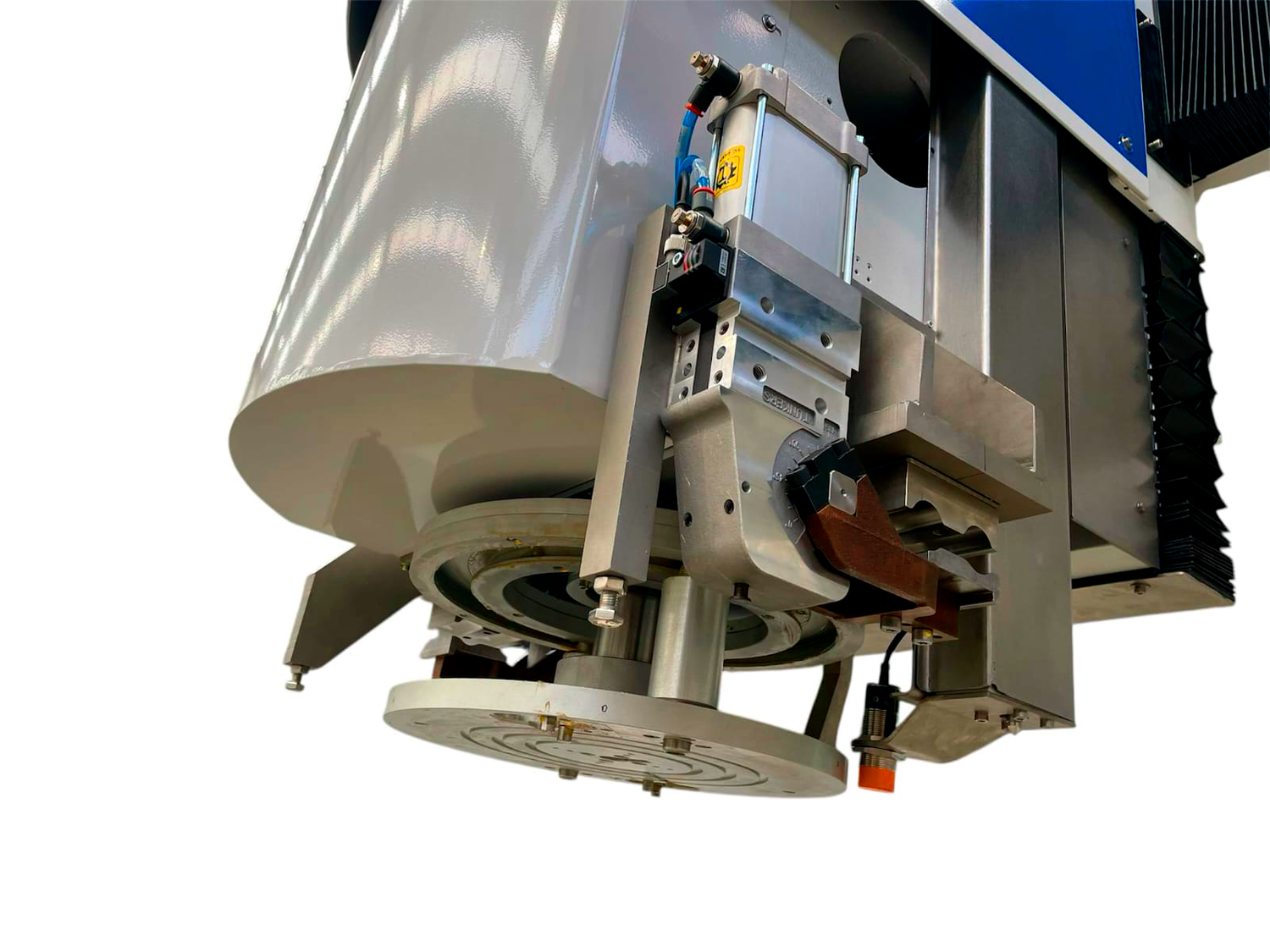

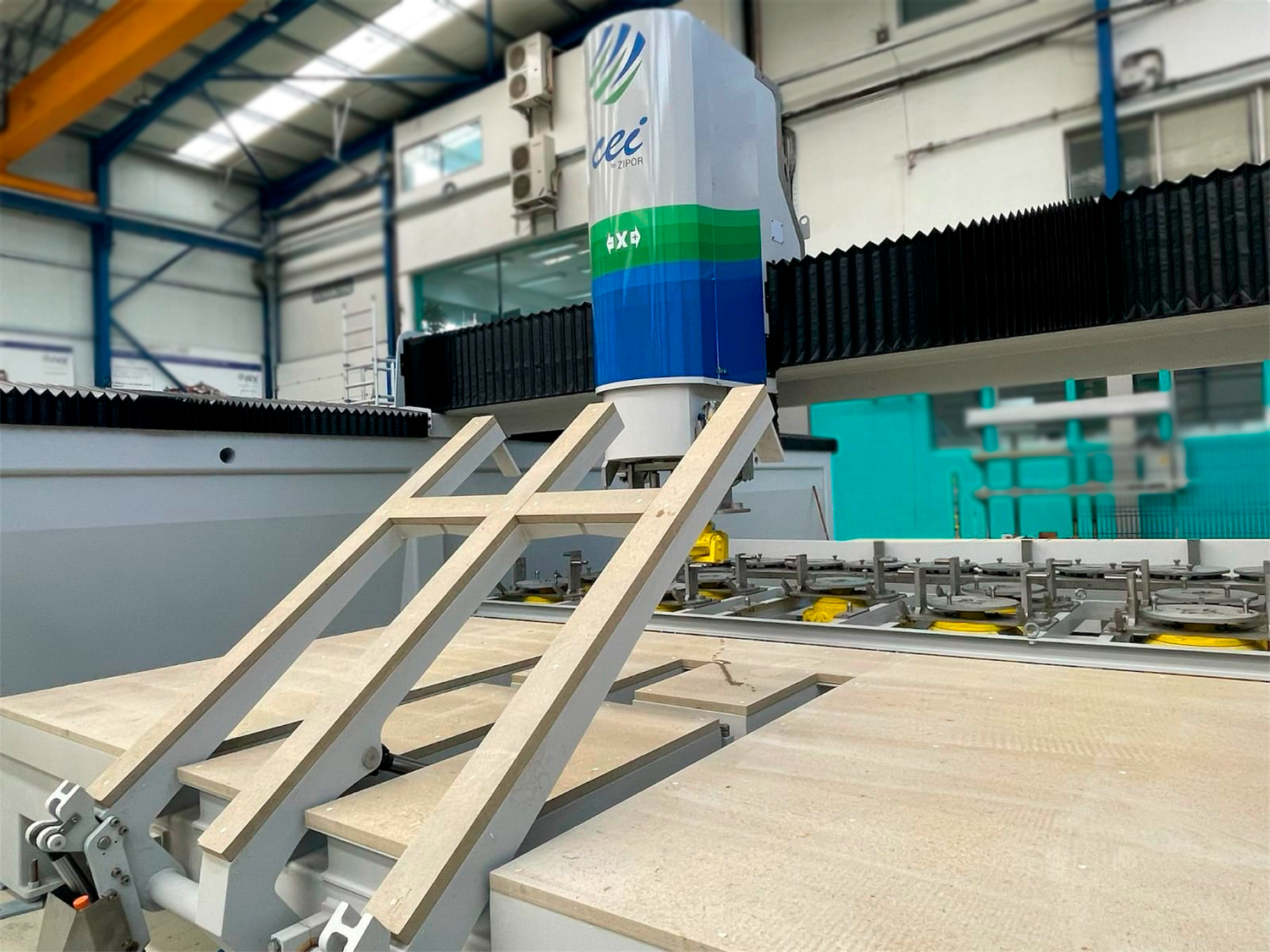

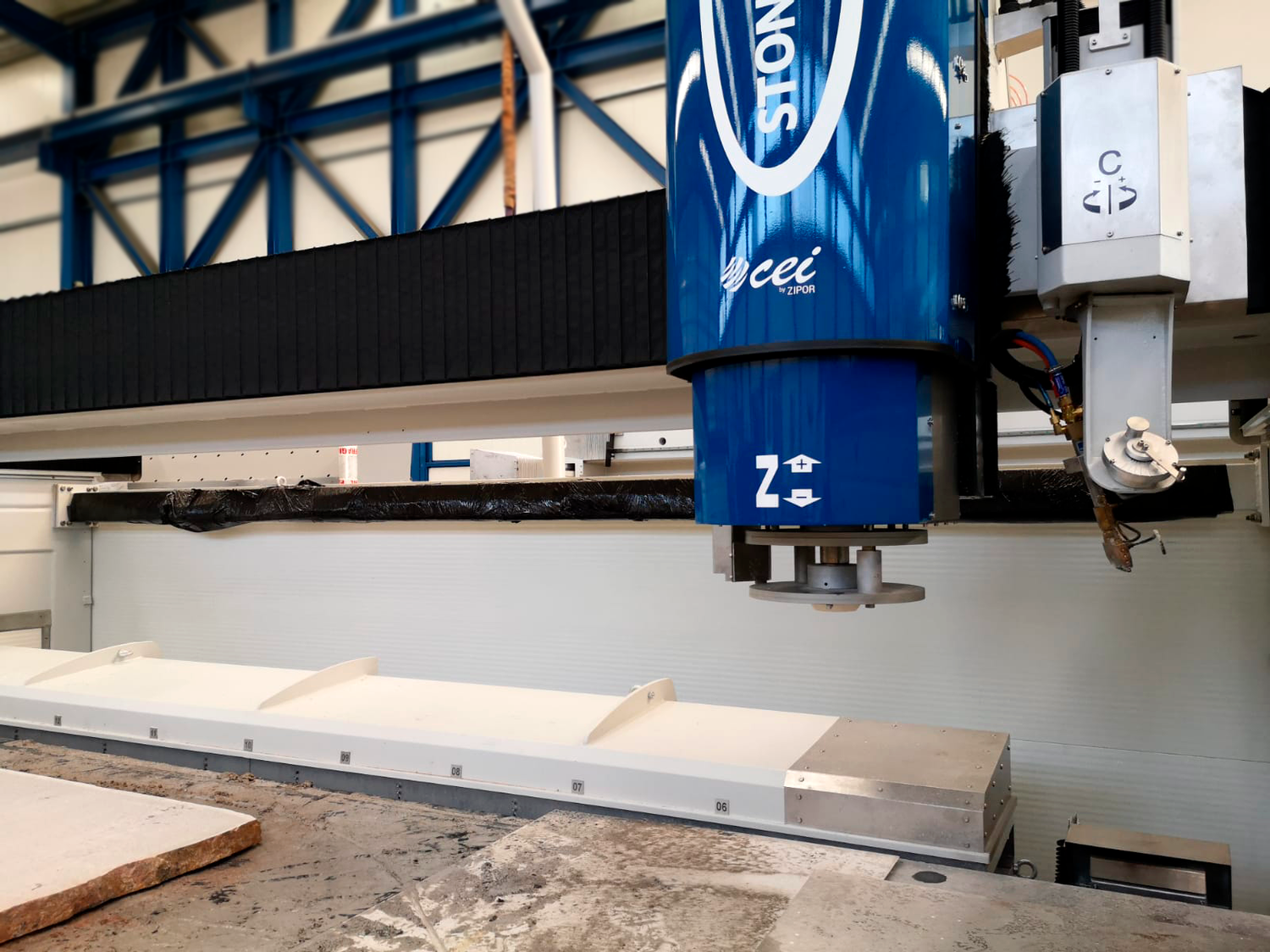

Machine details and applications
A selection of StoneSURFACE automatic-line details and applications.
