Stone Solutions
StoneCUT®
Full CNC cut-to-size machine for stone processing, prepared for cutting, drilling, milling and engraving operations with advanced automation and Industry 4.0 connectivity.
Overview
Main technical highlights
A compact summary of the most important specifications for quick reading before analysing the full technical details.
5
axis CNC system
350–625 mm
saw diameter
3800×2200
4100×2500 mm useful cutting area options
4100×2500 mm useful cutting area options
60 m/min
maximum speed
Equipment features
- Monoblock steel structure
- Vertical Z axis: 400 mm
- Motor power: 23 / 27 HP
- Vision system for detecting and positioning
- Tool measuring and slab thickness measuring probe
- Absolute encoders
- Magnetic drill tool change: 4 to 7
- Vacuum manipulators: 400 kg
- ½” gas milling system
- Centralized / assisted lubrication
- Tilting system for easy loading
- Software for cutting, drilling, milling and engraving
- Industry 4.0 concept: direct connection to office, smartphone or tablet
- Online technical support
Available options
- Front area for machining: 0.5 to 1.0 m
- Zero point on workbench
- Laser for manual cutting mode
- Additional high-rotation drilling motor
- Automatic saw sharpening system
- Specific software for profiles, frames and parametric figures
Video
StoneCUT in operation
Watch the machine in a dedicated CEI video.

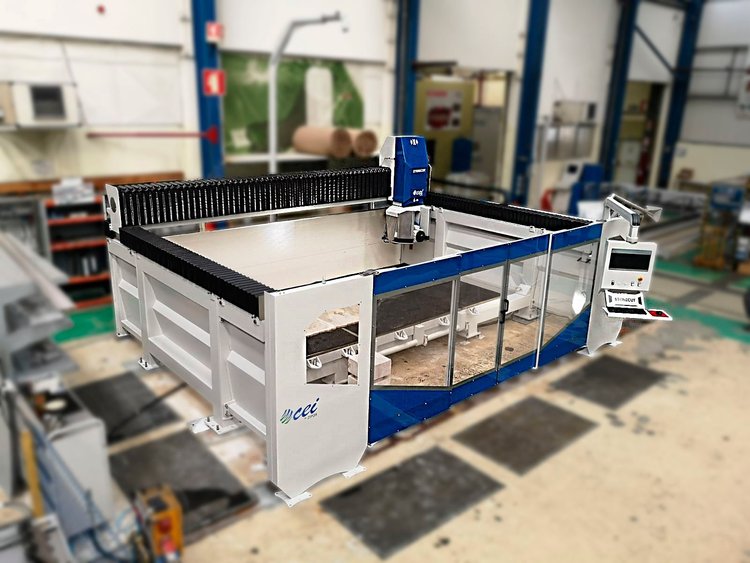

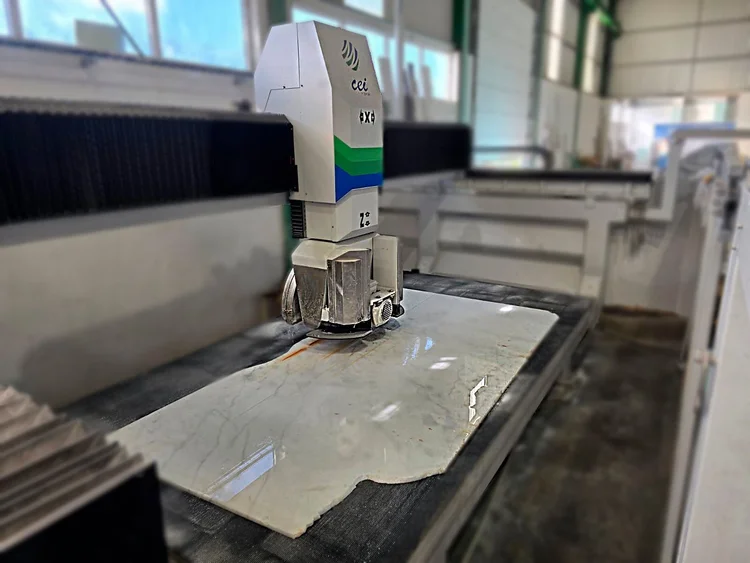

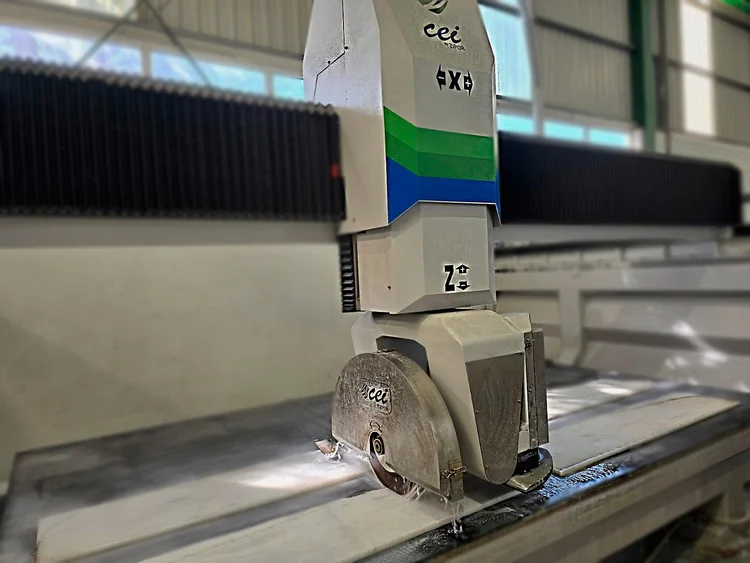

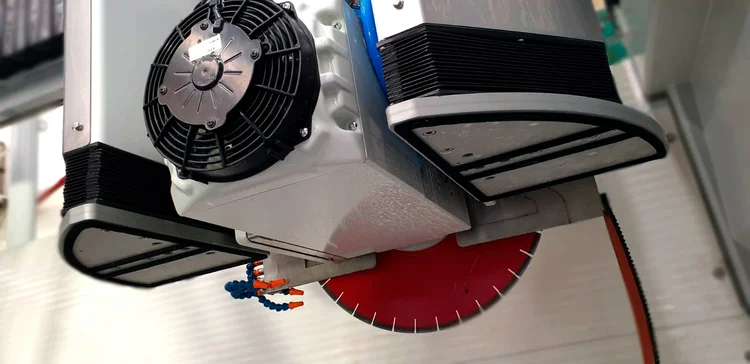

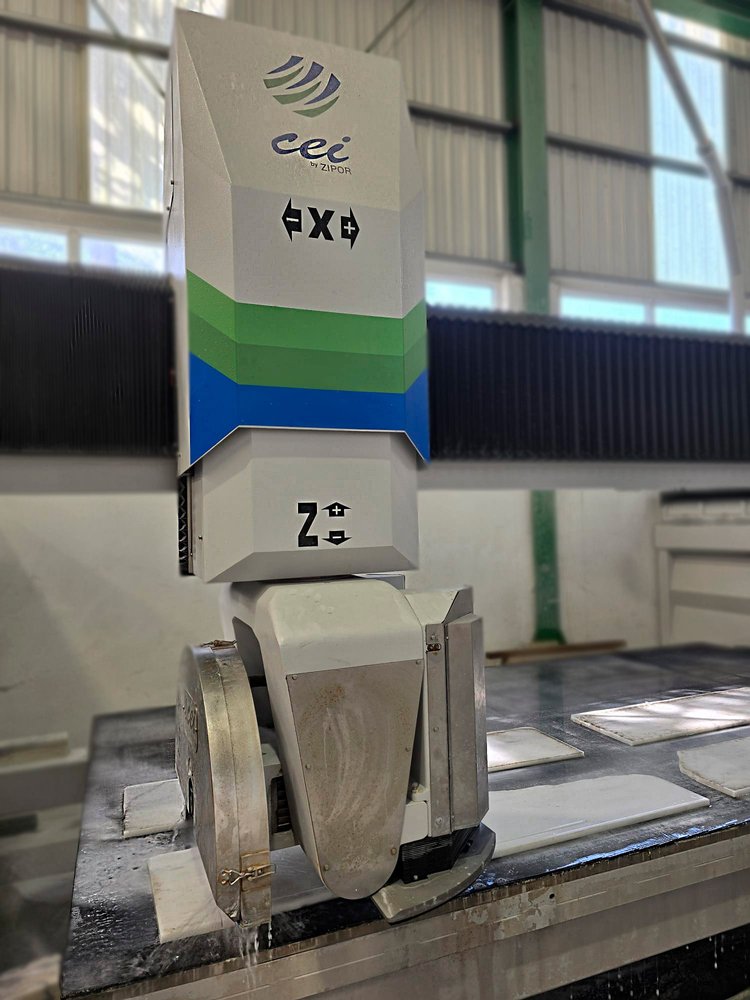

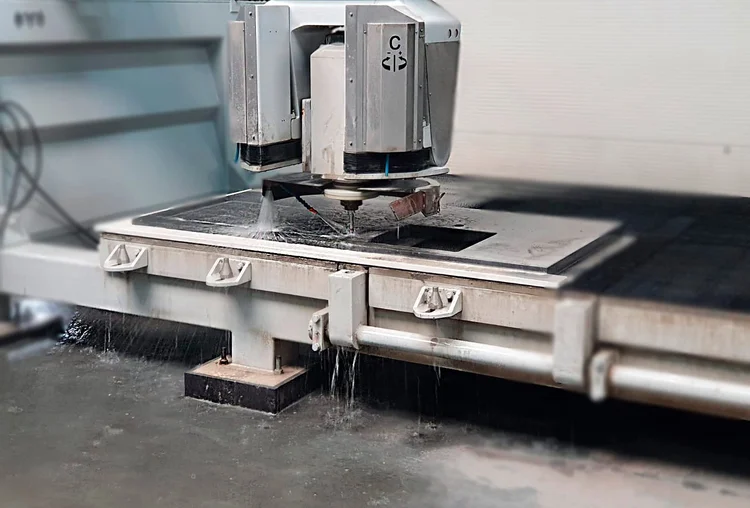

Gallery
Machine details and applications
A selection of images from the StoneCUT page.
Need more information about StoneCUT?
Contact CEI to discuss technical requirements, configuration options and the most suitable solution for your production needs.
